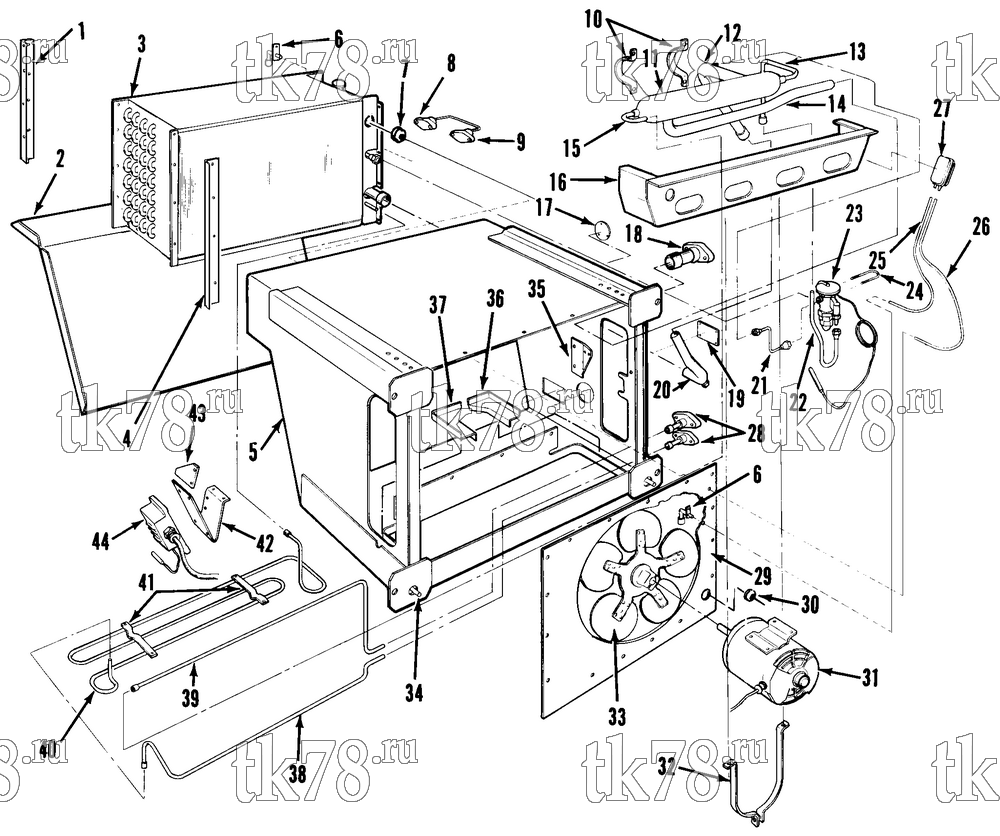

Установкa Thermo King схема EVAPORATOR GROUP (RMU M1) – 52D3
Обновление от: 3/16/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-2886 | FLANGE - coil | 1 | |
| 99-6347 | NUTSTRIP | 1 | ||
| 55-2988 | RIVET | 2 | ||
| 55-1587 | SCREW - coil | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 2 | 98-753 | PANEL - evaporator | 1 | |
| 55-3136 | RIVET | 10 | ||
| 55-3027 | SCREW - panel | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 3 | 67-1453 | COIL - evaporator | 1 | |
| 4 | 99-2885 | FLANGE - coil | 1 | |
| 99-6347 | NUTSTRIP | 1 | ||
| 55-2988 | RIVET | 2 | ||
| 55-1587 | SCREW - coil | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 5 | 98-2227 | HOUSING | 1 | |
| 6 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET | 2 | ||
| 7 | 33-740 | GROMMET | 1 | |
| 8 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 9 | 44-5034 | SWITCH - defrost termination | 1 | |
| 55-4507 | SCREW - switch | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 10 | 99-978 | CLAMP - heat exchanger | 2 | |
| 55-2957 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 11 | 67-623 | HEAT EXCHANGER | 1 | |
| 66-3524 | HEAT EXCHANGER | 1 | ||
| 12 | 66-3525 | TUBE | 1 | |
| 13 | 66-3526 | TUBE | 1 | |
| 14 | 66-3527 | TUBE - suction | 1 | |
| 15 | 66-3528 | TUBE - liquid | 1 | |
| 16 | 98-2228 | BRACKET | 1 | |
| 33-287 | GROMMET - tube | 1 | ||
| 55-3583 | RIVET - boltstrip | 4 | ||
| 55-3048 | SCREW - bracket | 6 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-2363 | LOCKWASHER | 6 | ||
| 17 | 99-2235 | COVER - plate | 1 | |
| 55-3049 | SCREW - bracket | 3 | ||
| 18 | 66-2171 | FLANGE | 1 | |
| 33-728 | O-RING | 1 | ||
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 99-5596 | PLATE & TUBE | 1 | ||
| 55-4794 | SCREW - flange | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 55-2166 | NUT | 2 | ||
| 19 | 99-6349 | PLATE - thermostat | 1 | |
| 55-3049 | SCREW - plate | 4 | ||
| 20 | 66-3529 | TUBE - coil to exchanger | 1 | |
| 21 | 66-3530 | TUBE - equalizer | 1 | |
| 22 | 66-3531 | TUBE - exchanger | 1 | |
| 23 | 66-820 | VALVE - expansion | 1 | |
| 66-633 | ELEMENT - power | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 24 | 55-3547 | U-BOLT | 1 | |
| 25 | 99-1143 | HOSE (black) | A/R | |
| 26 | 99-1142 | HOSE (clear) | A/R | |
| 27 | 66-2020 | SWITCH - air | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 99-7543 | BRACKET - air switch | 1 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 28 | 66-3532 | FLANGE | 2 | |
| 33-727 | O-RING | 2 | ||
| 91-5630 | PLATE - cover | 2 | ||
| 55-153 | SCREW - flange | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2114 | NUT | 4 | ||
| 29 | 98-1264 | ORIFICE - evaporator fan | 1 | |
| 55-1587 | SCREW - orifice | 16 | ||
| 55-3045 | LOCKWASHER - dome | 16 | ||
| 55-3059 | NUT - captive | 16 | ||
| 31 | 104-149 | MOTOR (220/3/30) | 1 | |
| 44-3114 | GRIP - cable | 1 | ||
| 99-6275 | NAMEPLATE - arrow | 1 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2114 | NUT | 4 | ||
| 99-6350 | STRAP - motor | 2 | ||
| 55-3834 | SCREW - strap | 1 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-2959 | LOCKWASHER | 3 | ||
| 55-2114 | NUT | 3 | ||
| 33 | 78-220 | FAN - evaporator | 1 | |
| 55-2963 | SCREW | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2962 | SCREW - fan | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 34 | 99-6351 | PIPE - drain | 2 | |
| 35 | 99-2148 | BRACKET - expansion valve | 1 | |
| 99-4635 | SHIM | A/R | ||
| 55-3027 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 36 | 99-1699 | PLATE - drain | 1 | |
| 37 | 99-1701 | PLATE - drain | 1 | |
| 33-428 | GROMMET - plate | 2 | ||
| 55-1714 | RIVET - plate | 4 | ||
| 38 | 66-3533 | TUBE - defrost | 1 | |
| 39 | 66-3534 | TUBE - liquid | 1 | |
| 40 | 67-291 | TUBE - defrost | 1 | |
| 41 | 99-6353 | CLAMP | 2 | |
| 55-1587 | SCREW - clamp | 2 | ||
| 55-3028 | WASHER | 2 | ||
| 42 | 99-6354 | BRACKET - junction box | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 43 | 99-6355 | BRACKET - sensor | 1 | |
| 44-5234 | SENSOR (113 lg) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 203-297 | SENSOR | 1 | ||
| 55-547 | CLAMP - sensor | 2 |
