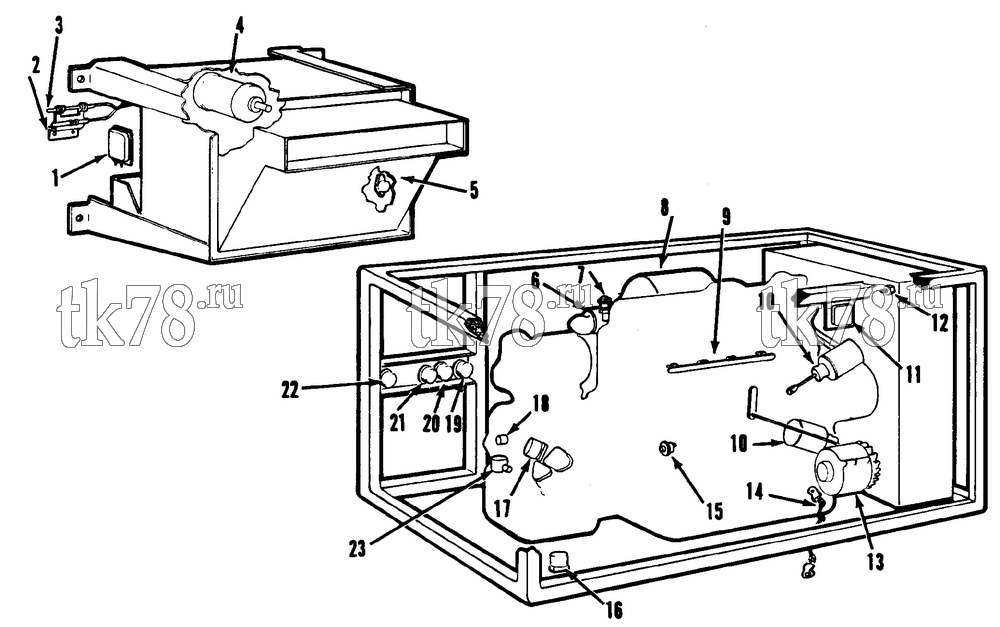

Установкa Thermo King схема ELECTRICAL COMPONENTS & GAUGES – 51G6
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-2020 | SWITCH - air | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 2 | 44-5234 | SENSOR (113 in) | 1 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 3 | 203-297 | SENSOR - electric thermometer | 1 | |
| 4 | 104-149 | MOTOR - fan (220/3/60) | 1 | |
| 5 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 6 | 845-1285 | STARTER - gear reduction | 1 | |
| 44-3447 | SOLENOID - starter | 1 | ||
| 7 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 8 | 104-409 | ALTERNATOR (see 51G2) | 1 | |
| 9 | 44-2922 | GLOW PLUG | 4 | |
|
10-44-2922 | Свеча накаливания, Isuzu C201 | 1 510 ₽ |
|
| 10 | 44-2823 | SOLENOID | 2 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-2756 | DIODE - assembly | 2 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-4720 | WIRE - resistance | 1 | ||
| 11 | 44-5013 | REGULATOR - voltage | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 44-5792 | HARNESS - regulator | 1 | ||
| 99-6334 | BRACKET - regulator | 1 | ||
| 55-736 | SCREW - bracket | 3 | ||
| 55-1511 | LOCKWASHER | 3 | ||
| 55-2752 | NUT | 3 | ||
| 12 | 44-5740 | SENSOR - liquid | 1 | |
| 13 | 44-3325 | ALTERNATOR (see 22E11) | 1 | |
| US-44-3325 | Генератор 35A/12V | 35 130 ₽ |
|
|
|
10-44-3325 | Генератор 35A/12V | 28 440 ₽ |
|
| 14 | 44-1644 | STRAP - ground | 1 | |
| 15 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 16 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - pilot solenoid | 1 | ||
| 55-8786 | NUT - valve | 1 | ||
| 17 | 22-543 | VALVE - compressor unloader (12VDC) | 1 | |
| 44-6595 | COIL (12VDC) | 1 | ||
| 18 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 19 | 44-2814 | GAUGE - water temperature | 1 | |
|
10-44-2814 | Датчик температуры воды | 15 730 ₽ |
|
| 20 | 44-2260 | GAUGE - oil pressure | 1 | |
|
10-44-2260 | Датчик давления масла | 6 600 ₽ |
|
| 55-1253 | COUPLING - female | 1 | ||
| 11-5247 | HOSE - oil pressure gauge | 1 | ||
| 21 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 22 | 66-527 | GAUGE - compound | 1 | |
|
10-66-527 | Датчик давления | 5 990 ₽ |
|
| 55-1253 | COUPLING - female | 1 | ||
| 11-5247 | HOSE - compound gauge | 1 | ||
| 23 | 44-788 | SWITCH - compressor low oil pressure | 1 | |
| 66-4726 | TUBE - compressor low oil pressure | 1 | ||
| 55-2123 | COUPLING - half union | 1 | ||
| 55-1654 | TEE | 1 | ||
| 11-2886 | VALVE - pressure | 1 | ||
| 11-7777 | CORE | 1 | ||
| 55-5672 | CAP | 1 | ||
| 22-599 | ADAPTER - pressure switch | 1 | ||
| 55-381 | FLATWASHER | 2 | ||
| 22-600 | SCREW - adapter | 1 |
