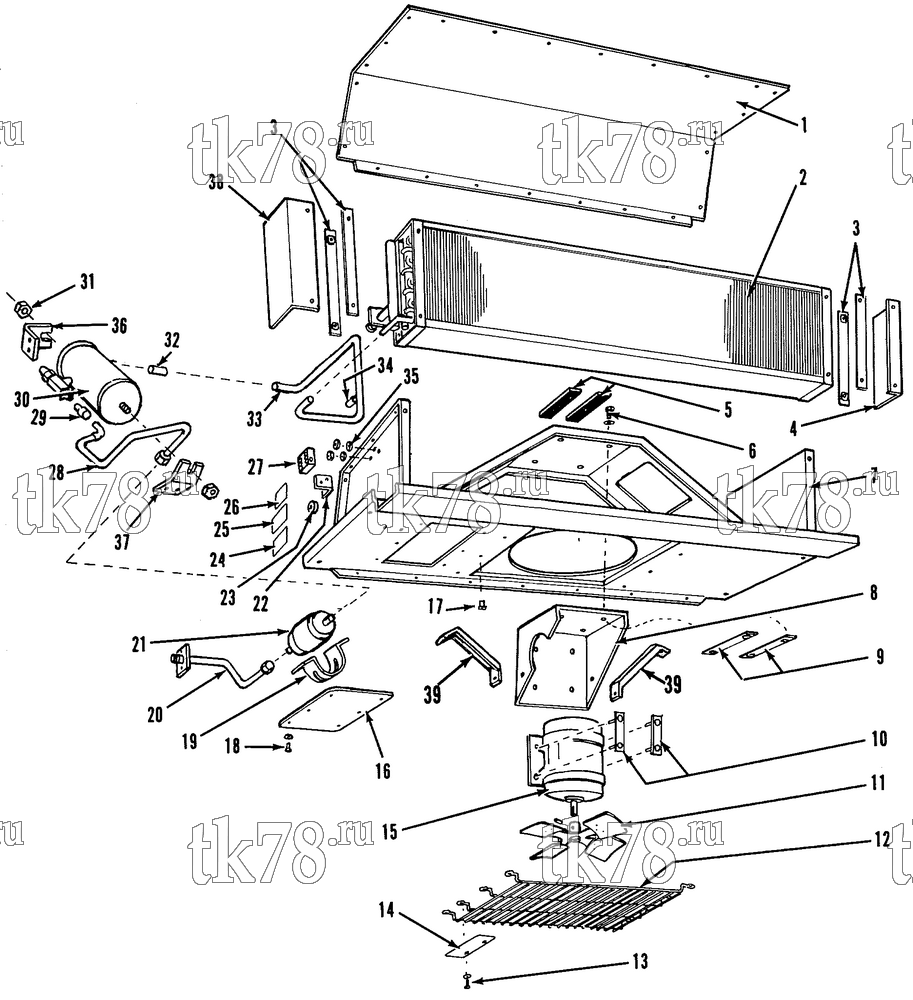

Установкa Thermo King схема CONDENSER ASSEMBLY (Before 5/79) – 50D6
Обновление от: 10/2/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-1491 | COVER - condenser | 1 | |
| 55-3672 | SCREW - cover | 7 | ||
| 55-406 | FLATWASHER | 7 | ||
| 2 | 67-443 | COIL - condenser | 1 | |
| 55-538 | SCREW - coil | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 3 | 99-4164 | NUTSTRIP - coil | 4 | |
| 4 | 99-4165 | ANGLE - shield | 1 | |
| 5 | 99-4166 | SPACER (neoprene) | 2 | |
| 6 | 55-2969 | SCREW - bracket | 4 | |
| 55-371 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 7 | 98-1492 | BASE | 1 | |
| 8 | 99-4167 | BRACKET - motor | 1 | |
| 55-3510 | CLAMP - harness | 3 | ||
| 55-3672 | SCREW - clamp | 3 | ||
| 9 | 99-4168 | NUTSTRIP - bracket | 2 | |
| 55-2270 | RIVET - strip | 4 | ||
| 10 | 99-4169 | BOLTSTRIP - motor | 2 | |
| 55-371 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-312 | NUT - motor | 4 | ||
| 11 | 78-421 | FAN & HUB - assembly | 1 | |
| 12 | 99-4170 | SCREEN - fan guard | 1 | |
| 13 | 55-736 | SCREW - nameplate | 2 | |
| 55-1698 | SCREW - screen | 6 | ||
| 55-431 | FLATWASHER | 8 | ||
| 55-1511 | LOCKWASHER | 8 | ||
| 14 | 99-4171 | NAMEPLATE - Caution Fan | 1 | |
| 15 | 104-511 | MOTOR (24V, G.E.) | 1 | |
| 44-4118 | BRUSH - set (G.E. motor) | 1 | ||
| 77-1069 | BEARING (G.E. motor) | 2 | ||
| 104-284 | MOTOR (12V, G.E.) | 1 | ||
| 44-4435 | BRUSH (set of 4, G.E. motor) | 1 | ||
| 77-1498 | BEARING - shaft end | 1 | ||
| 77-1106 | BEARING (opposite shaft end) | 1 | ||
| 33-1087 | SEAL - shaft | 1 | ||
| 104-317 | MOTOR (12V, Ohio Elect, see note) | 1 | ||
| 44-5416 | BRUSH (set of 4) | 1 | ||
| 77-1302 | BEARING | 2 | ||
| 33-1370 | SEAL - shaft | 1 | ||
| 16 | 99-4172 | PLATE - access cover | 1 | |
| 17 | 55-2870 | NUT - grommet (plastic) | 14 | |
| 18 | 55-531 | SCREW | 6 | |
| 55-431 | FLATWASHER | 6 | ||
| 55-1511 | LOCKWASHER | 6 | ||
| 19 | 99-465 | BRACKET - dehydrator | 1 | |
| 55-141 | SCREW | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-312 | NUT | 4 | ||
| 20 | 66-2584 | TUBE - plate & coupling | 1 | |
| 21 | 66-814 | DEHYDRATOR | 1 | |
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 22 | 99-4173 | BRACKET | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 23 | 33-740 | GROMMET | 1 | |
| 24 | NSS | NAMEPLATE - model | 1 | |
| 25 | 99-1347 | NAMEPLATE - phase/cycle/amp | 1 | |
| 26 | 99-236 | NAMEPLATE - patent | 1 | |
| 55-1714 | RIVET - nameplate | 12 | ||
| 27 | 44-4226 | BLOCK - terminal | 1 | |
| 99-4174 | MARKSTRIP | 1 | ||
| 55-2748 | SCREW - terminal board | 2 | ||
| 55-295 | NUT - terminal board | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-715 | LOCKWASHER | 2 | ||
| 28 | 66-2585 | TUBE - receiver to dehydrator | 1 | |
| 29 | 66-1801 | TUBE - receiver | 1 | |
| 30 | 67-1189 | TANK - receiver | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 66-8339 | INDICATOR - liquid | 1 | ||
| 66-9257 | BALL | 1 | ||
| 33-1222 | O-RING | 1 | ||
| 55-3192 | PLUG | 1 | ||
| 31 | 55-289 | NUT - receiver | 2 | |
| 55-402 | FLATWASHER | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 32 | 66-2152 | TUBE | 1 | |
| 33 | 66-2586 | TUBE - condenser to receiver | 1 | |
| 34 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 35 | 55-315 | NUT - bracket | 2 | |
| 36 | 99-5975 | BRACKET - receiver | 1 | |
| 37 | 99-4175 | BRACKET - receiver | 1 | |
| 55-214 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 38 | 99-4176 | ANGLE - shield | 1 | |
| 39 | 99-5713 | BRACKET - support | 2 | |
| 55-157 | SCREW - bracket | 4 | ||
| 55-315 | NUT | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 |
