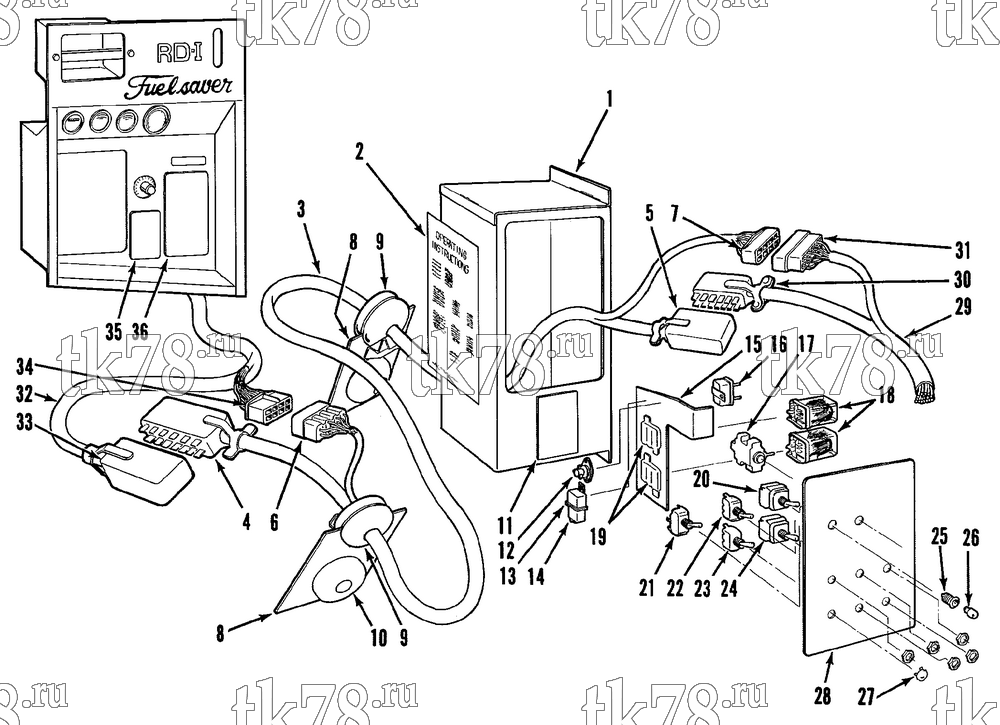

Установкa Thermo King схема REMOTE CONTROL BOX (RD-I 30) – 50C7
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2206 | BOX - remote | 1 | |
| 2 | 99-6188 | NAMEPLATE - Instructions | 1 | |
| 3 | 44-5715 | HARNESS - unit to remote box (incl 4-7) | 1 | |
| 4 | 44-5716 | PLUG (17 contacts) | 1 | |
| 5 | 44-5717 | SOCKET (17 contacts) | 1 | |
| 6 | 44-5220 | COVER - socket & plug | 2 | |
| 44-5718 | CONNECTOR (male) | 1 | ||
| 44-8092 | TERMINAL - fingrip (male) | 8 | ||
| 7 | 44-5719 | CONNECTOR (female) | 1 | |
| 44-6452 | FINGRIP - female | 8 | ||
| 8 | 99-6190 | RETAINER - assembly | 2 | |
| 9 | 33-612 | GROMMET | 2 | |
| 10 | 33-549 | GROMMET | 2 | |
| 55-3830 | PLUG - button | 2 | ||
| 55-3027 | SCREW - retainer | 4 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 11 | 99-6187 | COVER - receptacle hole | 1 | |
| 55-3029 | SCREW - cover | 4 | ||
| 55-3023 | WASHER - sealing | 4 | ||
| 55-686 | NUT | 4 | ||
| 12 | 44-4035 | RECTIFIER | 1 | |
| 55-1805 | SCREW - rectifier | 2 | ||
| 55-1516 | NUT | 2 | ||
| 13 | 44-9109 | RELAY - low oil pressure | 1 | |
| 55-1189 | SCREW - relay | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-664 | NUT | 1 | ||
| 14 | 44-5537 | SOCKET - relay | 1 | |
| 15 | 99-6033 | BRACKET - relay | 1 | |
| 55-1189 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-664 | NUT | 2 | ||
| 16 | 44-5730 | BREAKER - circuit (20 amp) | 1 | |
|
30-44-5730 | Предохранитель 20А | 1 300 ₽ |
|
| 55-346 | NUT - terminal | 2 | ||
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 55-1189 | SCREW - breaker | 1 | ||
| 55-664 | NUT | 1 | ||
| 17 | 40-1082 | SWITCH - cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 44-2119 | SEAL - switch | 1 | ||
| 55-3022 | SCREW - switch | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 18 | 44-3186 | RELAY - defrost & thermostat | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 99-2027 | SPRING - holddown (relay) | 2 | ||
| 99-2771 | CLIP - spring | 2 | ||
| 19 | 44-3184 | SOCKET - relay | 2 | |
| 44-3515 | RESISTOR | 1 | ||
| 55-2270 | RIVET - socket | 4 | ||
| 20 | 44-709 | SWITCH - cool/heat | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-4776 | DIODE | 1 | ||
| 21 | 44-490 | SWITCH - fuel economy | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 22 | 44-1164 | SWITCH - manual defrost | 1 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 23 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 24 | 44-5584 | SWITCH - preheat/start | 1 | |
| 25 | 44-1093 | LIGHT - indicator (Fuelsaver) | 1 | |
| 26 | 44-1411 | BULB - light | 1 | |
| 27 | 55-1322 | PLUG - button | 1 | |
| 28 | 99-6032 | PANEL - switch | 1 | |
| 33-1421 | GASKET - panel | 1 | ||
| 55-3027 | SCREW - panel | 2 | ||
| 55-4760 | WASHER - retaining | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 29 | 44-5731 | HARNESS - switch panel | 1 | |
| 30 | 44-5716 | PLUG (17 contacts) | 1 | |
| 44-5220 | COVER - plug | 1 | ||
| 31 | 44-5718 | CONNECTOR (male) | 1 | |
| 44-8092 | TERMINAL - fingrip | 8 | ||
| 32 | 44-5732 | HARNESS - main | 1 | |
| 33 | 44-5717 | SOCKET (17-pin) | 1 | |
| 44-5220 | COVER - socket | 1 | ||
| 34 | 44-5719 | CONNECTOR (female) | 1 | |
| 44-6452 | FINGRIP - female | 8 | ||
| 35 | 99-6187 | COVER - receptacle | 1 | |
| 55-2989 | SCREW - cover | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-686 | NUT | 4 | ||
| 36 | 99-6191 | PANEL - blank (switch panel) | 1 | |
| 55-3027 | SCREW - panel | 2 | ||
| 55-3493 | NUT - captive | 2 | ||
| 55-2001 | FLATWASHER | 2 |
