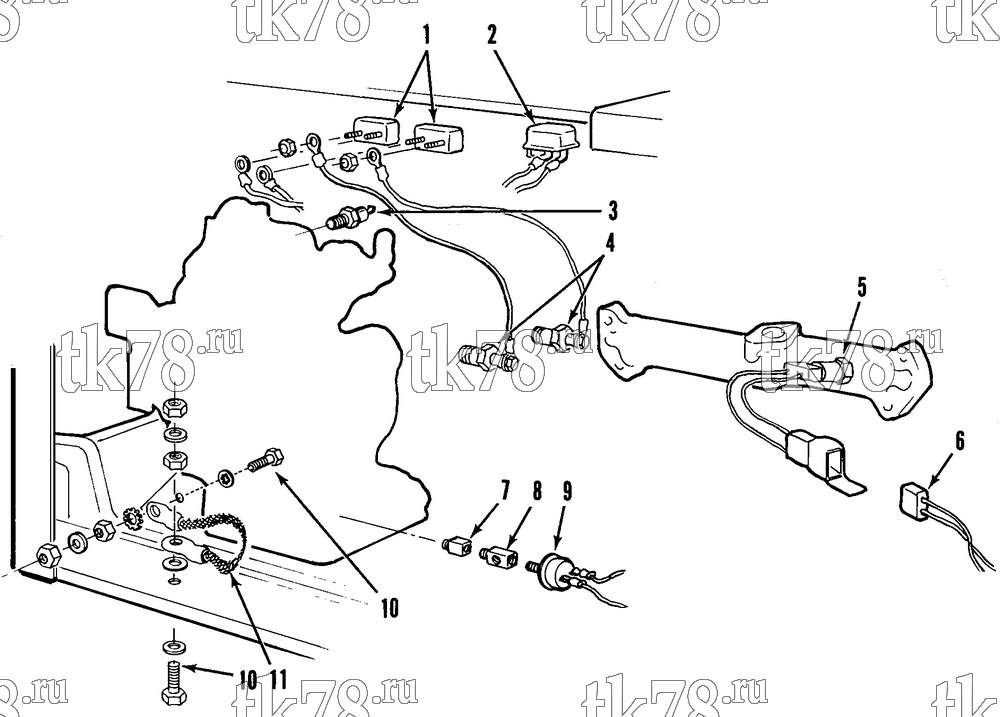

Установкa Thermo King схема ELECTRICAL COMPONENTS – 50A9
Обновление от: 7/31/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5575 | BREAKER - circuit | 2 | |
| 55-2977 | SCREW - circuit breaker | 2 | ||
| 2 | 41-3990 | SOLENOID - manifold heater | 1 | |
| 55-145 | SCREW | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-291 | NUT | 2 | ||
| 3 | 44-4793 | SWITCH - water temperature | 1 | |
| 4 | 44-4728 | GLOW PLUG | 2 | |
| 5 | 44-5305 | SWITCH - hpco (R12) | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 44-5508 | SWITCH - hpco (R502) | 1 | ||
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
| 6 | 44-5219 | CONNECTOR | 1 | |
| 7 | 11-4984 | ADAPTER - switch | 1 | |
| 8 | 55-2273 | TEE | 1 | |
| 9 | 41-7065 | SWITCH - oil pressure | 1 | |
| 10 | 55-3823 | SCREW - cable | 2 | |
| 55-448 | FLATWASHER (brass) | 2 | ||
| 55-3066 | LOCKWASHER (internal tooth) | 2 | ||
| 55-3672 | LOCKWASHER (internal/external tooth) | 2 | ||
| 55-671 | NUT (brass) | 2 | ||
| 11 | 44-5609 | CABLE - ground | 1 |
