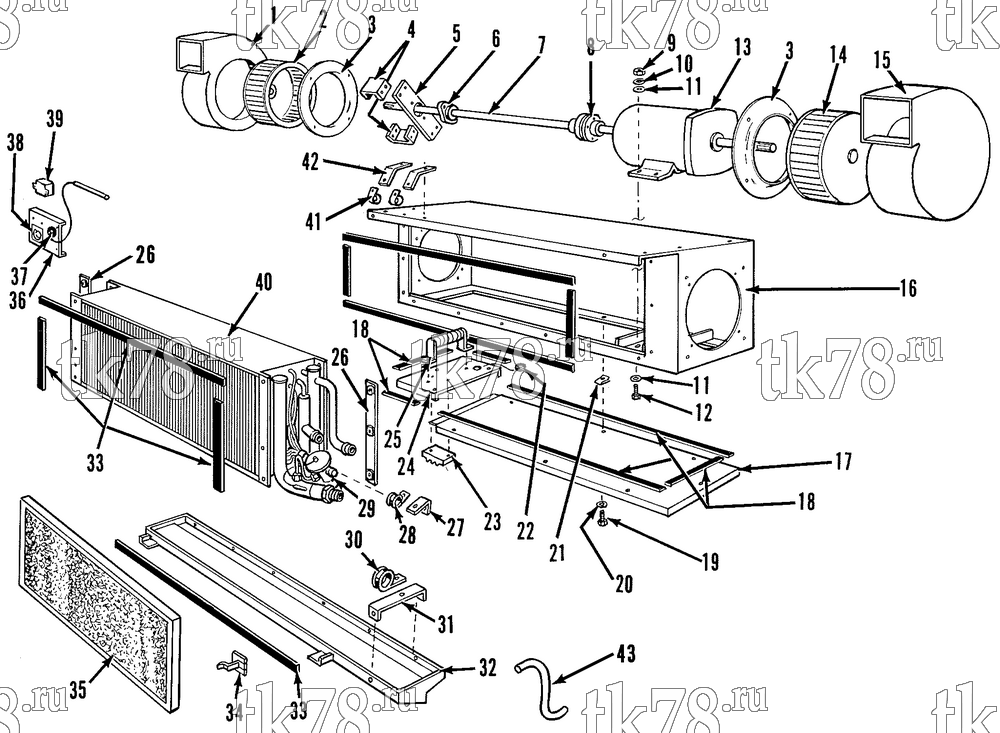

Установкa Thermo King схема EVAPORATOR SECTION – 47C7
Обновление от: 1/17/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2128 | HOUSING - blower | 1 | |
| 55-145 | SCREW - housing | 4 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-291 | NUT | 4 | ||
| 2 | 77-1327 | WHEEL - blower | 1 | |
| 3 | 77-1329 | FLANGE - inlet | 2 | |
| 55-2869 | SCREW - inlet | 8 | ||
| 4 | 99-5963 | BRACKET - standoff | 2 | |
| 55-145 | SCREW - bracket | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-366 | LOCKWASHER | 8 | ||
| 55-5691 | INSERT - threaded (1/4-20) | 2 | ||
| 5 | 99-5964 | BRACKET - bearing | 1 | |
| 6 | 77-1221 | BEARING - flange | 1 | |
| 55-3584 | SCREW - bearing | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-285 | NUT | 2 | ||
| 7 | 77-1330 | SHAFT | 1 | |
| 8 | 77-2589 | COUPLING | 1 | |
| 9 | 55-312 | NUT - motor | 4 | |
| 10 | 55-790 | LOCKWASHER | 4 | |
| 11 | 55-371 | FLATWASHER | 8 | |
| 12 | 55-2969 | SCREW - motor | 4 | |
| 13 | 104-538 | MOTOR (12VDC) | 1 | |
| 77-1302 | BEARING | 2 | ||
| 44-6720 | BRUSH (set of 4) | 1 | ||
| 33-1370 | SEAL - oil | 1 | ||
| 14 | 77-1328 | WHEEL - blower | 1 | |
| 15 | 98-2129 | HOUSING - blower | 1 | |
| 55-145 | SCREW - housing | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-291 | NUT | 4 | ||
| 16 | 98-2130 | FRAME- evaporator | 1 | |
| 17 | 98-2110 | COVER | 1 | |
| 18 | 33-1399 | GASKET | A/R | |
| 19 | 55-538 | SCREW - cover | 10 | |
| 20 | 55-411 | FLATWASHER | 10 | |
| 55-366 | LOCKWASHER | 10 | ||
| 21 | 55-4517 | NUT - speed | 10 | |
| 22 | 33-415 | GROMMET | 1 | |
| 23 | 44-5555 | BOARD - terminal | 1 | |
| 99-5965 | MARKSTRIP | 1 | ||
| 55-3442 | SCREW - terminal board | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 24 | 99-5962 | PLATE - resistor | 1 | |
| 25 | 44-5556 | RESISTOR | 1 | |
| 55-3025 | SCREW - resistor | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2989 | SCREW - clamp | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-3800 | LOCKWASHER | 3 | ||
| 55-2990 | NUT | 3 | ||
| 26 | 99-5967 | NUTSTRIP | 2 | |
| 55-1714 | RIVET - strip | 4 | ||
| 27 | 99-5968 | BRACKET - expansion valve | 1 | |
| 55-145 | SCREW - bracket | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 55-291 | NUT | 1 | ||
| 28 | 55-1203 | CLAMP | 1 | |
| 55-1510 | SCREW - clamp | 1 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-1511 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 29 | 66-3374 | VALVE - expansion | 1 | |
| 66-3375 | TUBE - equalizer | 1 | ||
| 30 | 55-5274 | CLAMP - suction tube | 1 | |
| 55-145 | SCREW - clamp | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 55-5691 | INSERT - threaded (1/4-20) | 1 | ||
| 31 | 99-5969 | BRACKET - suction tube | 1 | |
| 55-1510 | SCREW - bracket | 2 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 32 | 98-2131 | PAN - drain | 1 | |
| 33 | 99-5966 | STRIP (neoprene) | A/R | |
| 34 | 55-4422 | FASTENER - snap | 2 | |
| 55-1510 | SCREW - fastener | 4 | ||
| 55-431 | FLATWASHER | 8 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 2 | ||
| 35 | 11-4985 | FILTER - air | 1 | |
| 36 | 99-5970 | BRACKET - thermostat | 1 | |
| 55-1510 | SCREW - bracket | 2 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 37 | 33-415 | GROMMET | 1 | |
| 38 | 44-6119 | THERMOSTAT | 1 | |
| 44-1222 | KNOB | 1 | ||
| 99-6470 | NAMEPLATE - temperature control | 1 | ||
| 55-4222 | SCREW - thermostat | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 39 | 44-3961 | THERMOSTAT | 1 | |
| 55-4222 | SCREW - thermostat | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 40 | 67-601 | COIL | 1 | |
| 99-5971 | SPACER - coil | 2 | ||
| 99-1908 | STRIP (neoprene, 25ft) | A/R | ||
| 55-214 | SCREW - coil | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 41 | 55-547 | CLAMP - sensor | 2 | |
| 55-1510 | SCREW | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 42 | 99-5961 | BRACKET - clamp | 2 | |
| 55-1510 | SCREW | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 43 | 99-6619 | HOSE - drain | 1 |
