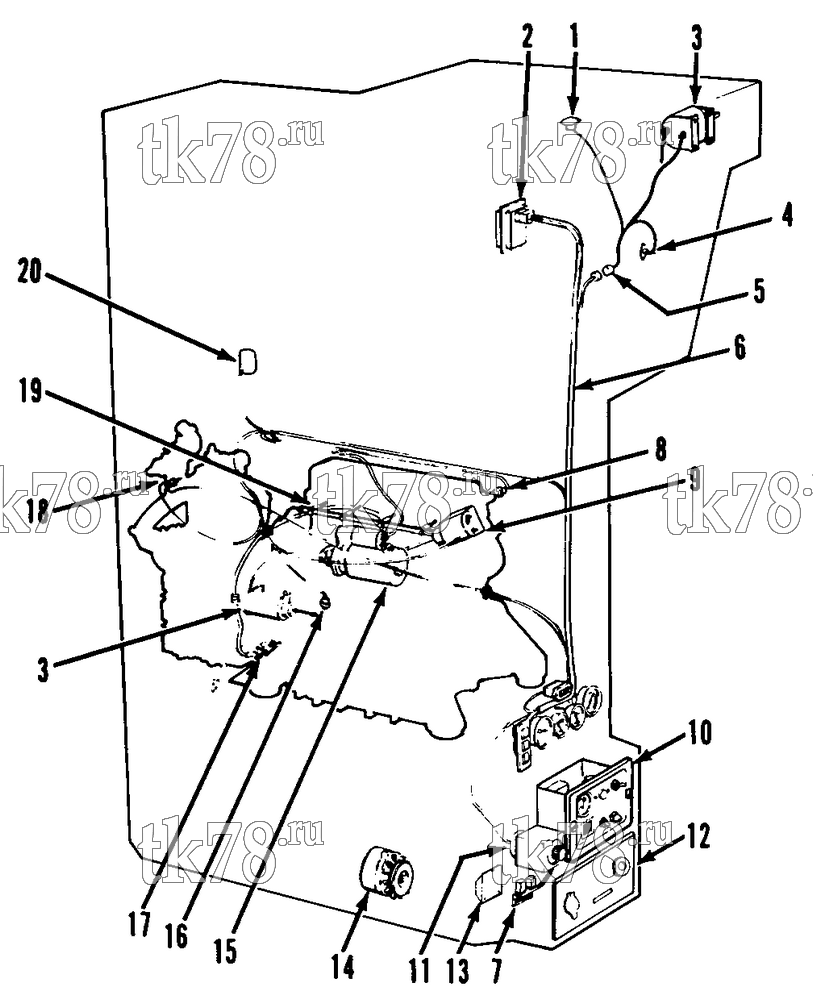

Установкa Thermo King схема ELECTRICAL COMPONENTS (NWD-50) – 45E11
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-3627 | SWITCH - high temperature cutout | 1 | |
| 2 | 66-2020 | SWITCH - air (see 14E9) | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 3 | 44-2823 | SOLENOID (see 15A9) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 4 | 44-3155 | SWITCH - defrost termination (see 14E9) | 2 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 5 | 44-4664 | HARNESS - evaporator | 1 | |
| 6 | 44-4663 | HARNESS - main/Thermoguard/thermostat (incl item 5) | 1 | |
| 44-5214 | SOCKET (12-pin) | 1 | ||
| 44-2825 | COVER - connector | 1 | ||
| 44-709 | SWITCH - diesel/electric | 1 | ||
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-5763 | DIODE - switch | 1 | ||
| 44-5057 | BOARD - terminal | 1 | ||
| 44-5310 | CONNECTOR (15-pin) | 1 | ||
| 44-5220 | COVER - connector | 1 | ||
| 44-3608 | BOARD - test plug | 1 | ||
| 44-4769 | HARNESS - main (U.E. thermostat, incl item 5) | 1 | ||
| 44-5214 | SOCKET | 2 | ||
| 44-3515 | RESISTOR | 2 | ||
| 44-3521 | DIODE - heat relay | 1 | ||
| 44-709 | SWITCH - diesel/electric | 1 | ||
|
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-5763 | DIODE - switch | 1 | ||
| 44-5057 | BOARD - terminal | 1 | ||
| 44-3608 | BOARD - test plug | 1 | ||
| 7 | 44-3184 | SOCKET - relay | 2 | |
| 44-3186 | RELAY - throttle & heat | 2 | ||
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 8 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 55-2116 | BUSHING | 1 | ||
| 9 | 44-2756 | DIODE - throttle & fuel solenoid | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-4720 | WIRE - resistance | 1 | ||
| 10 | 45-252 | PANEL - switch (see 12D1) | 1 | |
| 11 | 45-1564 | THERMOSTAT | 1 | |
| 55-2752 | NUT | 3 | ||
| 12 | 45-603 | LINESTARTER (230V, see 35E1) | 1 | |
| 45-604 | LINESTARTER (380/460V, see grid 35E2) | 1 | ||
| 13 | 44-5013 | REGULATOR - voltage | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 44-5014 | HARNESS - voltage regulator | 1 | ||
|
10-44-5014 | Проводка генератора | 3 820 ₽ |
|
| 55-2991 | SCREW - regulator | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-1511 | LOCKWASHER | 3 | ||
| 55-2752 | NUT | 3 | ||
| 14 | 44-3325 | ALTERNATOR (see 15E1) | 1 | |
| US-44-3325 | Генератор 35A/12V | 35 130 ₽ |
|
|
|
10-44-3325 | Генератор 35A/12V | 28 440 ₽ |
|
| 15 | 845-1285 | STARTER (see engine section) | 1 | |
| 16 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 17 | 44-4582 | TERMINAL - battery | 1 | |
| 18 | 44-2907 | SWITCH - hpco | 1 | |
|
10-44-2907 | Выключатель высокого давления | 4 160 ₽ |
|
| 19 | 44-2922 | GLOW PLUG | 4 | |
|
10-44-2922 | Свеча накаливания, Isuzu C201 | 1 510 ₽ |
|
| 20 | 66-2009 | VALVE - pilot solenoid (see 20B7) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 55-8786 | NUT - valve | 1 |
