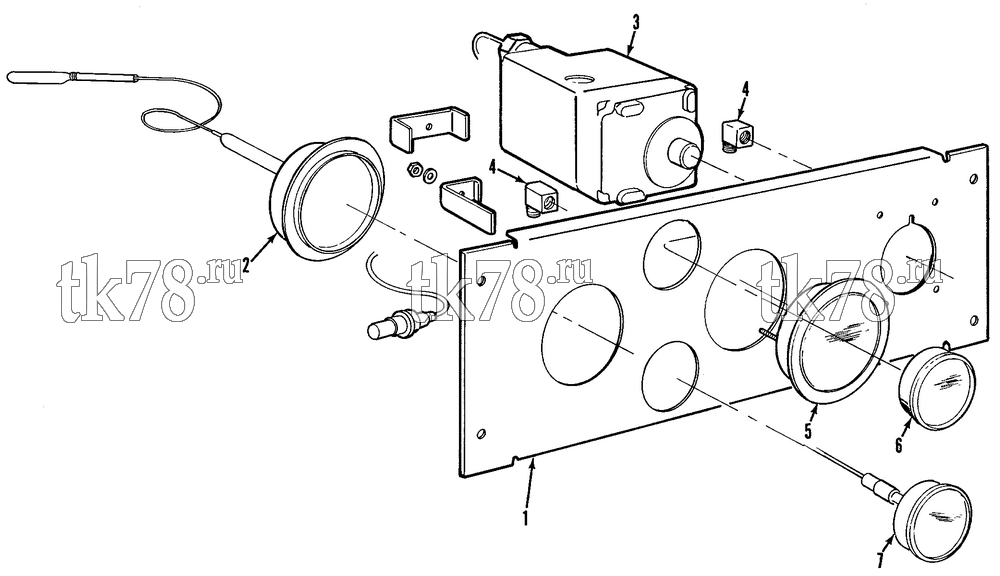

Установкa Thermo King схема GAUGE PANEL – 32G8
Обновление от: 7/23/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-588 | PANEL - gauge | 1 | ||
| 1 | 99-4247 | PANEL - lettered | 1 | |
| 2 | 61-3467 | THERMOMETER (see 20C6) | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-3003 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-3014 | LOCKWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 3 | 40-512 | KIT - thermostat (replaces U.E. thermostat) | 1 | |
| 44-2182 | SWITCH - bank (for U.E. replacement) | 1 | ||
| 66-2718 | DIAL - F scale (for U.E. replacement) | 1 | ||
| 66-2720 | DIAL - C scale (for U.E. replacement) | 1 | ||
| 99-5327 | COVER - thermostat | 1 | ||
| 55-1844 | SCREW - thermostat | 3 | ||
| 55-2202 | LOCKWASHER | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 4 | 55-328 | ELBOW | 2 | |
| 5 | 66-527 | GAUGE - compound pressure | 1 | |
|
10-66-527 | Датчик давления | 5 990 ₽ |
|
| 66-214 | RIM & GLASS | 1 | ||
| 6 | 44-2260 | GAUGE - oil pressure | 1 | |
|
10-44-2260 | Датчик давления масла | 6 600 ₽ |
|
| 7 | 44-2814 | GAUGE - water temperature | 1 | |
|
10-44-2814 | Датчик температуры воды | 15 730 ₽ |
|
| 55-2115 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-548 | CLAMP | 2 | ||
| 55-1329 | SCREW - clamp | 2 |
