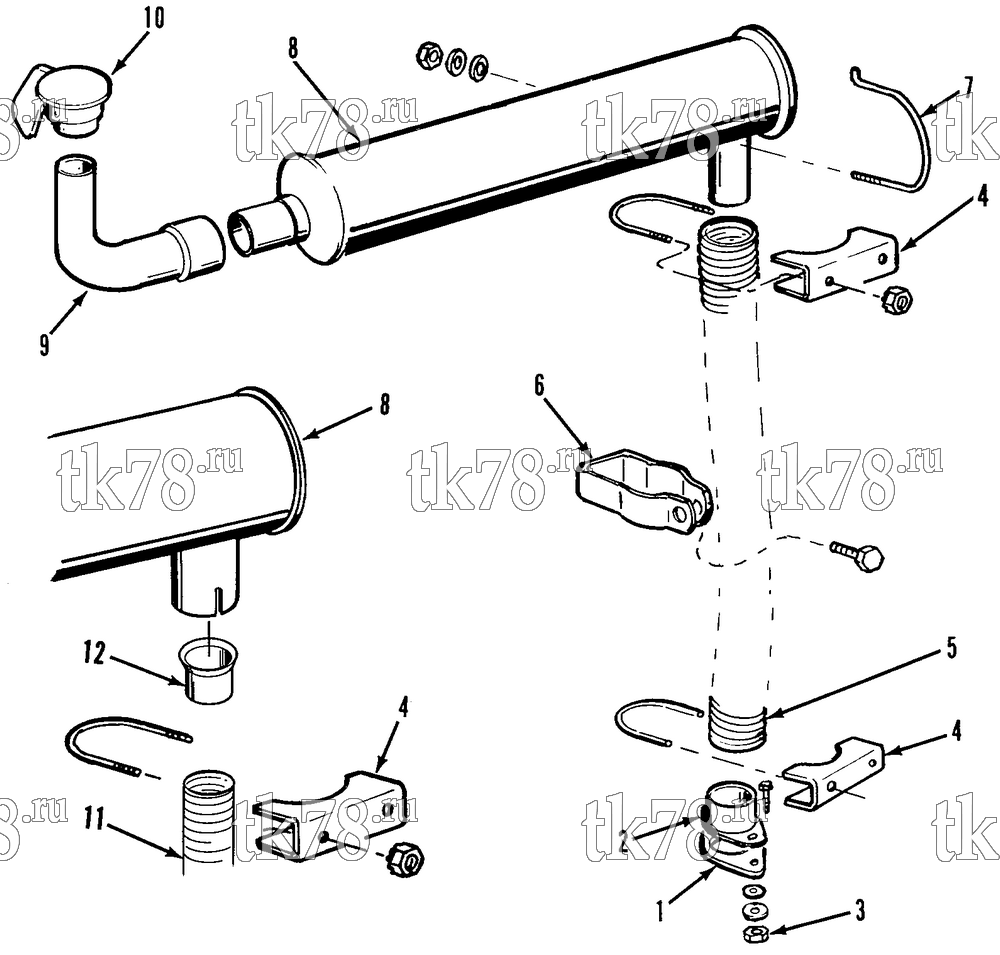

Установкa Thermo King схема MUFFLER GROUP – 32G14
Обновление от: 3/25/92
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-2113 | GASKET - flange | 1 | |
|
10-33-2113 | Прокладка выхлопной системы, Isuzu C-201 | 1 040 ₽ |
|
| 2 | 11-4439 | FLANGE - exhaust | 1 | |
| 3 | 55-2380 | SCREW - flange | 2 | |
| 55-371 | FLATWASHER | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-312 | NUT | 2 | ||
| 4 | 99-1514 | CLAMP - U (2-1/8 id) | 3 | |
| 99-3889 | U-CLAMP (2-3/8 id, units built after 3/30/78) | 1 | ||
| 5 | 12-313 | HOSE - exhaust (flex, 35.0 lg, units built before 7/31/78) | 1 | |
| 6 | 55-3853 | HANGER (1.969 id, units built before 3/1/76) | 1 | |
| 55-2141 | HANGER (2.469 id, units built after 2/29/76) | 1 | ||
| 55-144 | SCREW - hanger | 1 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 55-315 | NUT | 1 | ||
| 7 | 99-4291 | BRACKET - muffler | 2 | |
| 55-2965 | NUT - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 8 | 12-357 | MUFFLER | 2 | |
| 9 | 11-4262 | TUBE - muffler to rain cap (unit built before 2/5/77) | 1 | |
| 11-4094 | TUBE - muffler to rain cap (units built after 1/5/77) | 1 | ||
| 10 | 11-2916 | CAP - rain | 1 | |
| 11 | 11-5328 | HOSE - exhaust (units built after 7/30/78) | 1 | |
| 12 | 11-5322 | SLEEVE - exhaust hose | 1 |
