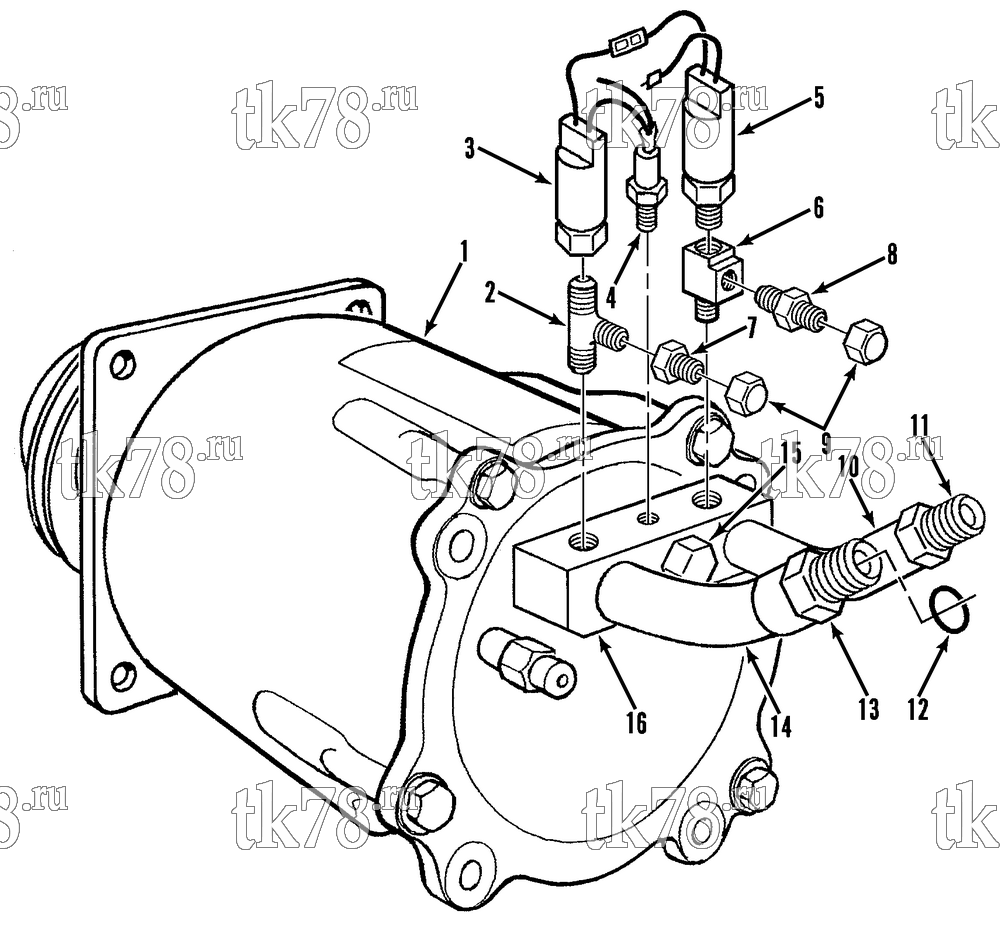

Установкa Thermo King схема COMPRESSOR GROUP (12.6 CID DELCO) – 29B12
Обновление от: 5/11/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-198 | COMPRESSOR & CLUTCH (12V, 5.6 dia) | 1 | |
| 102-244 | COMPRESSOR & CLUTCH (24V, 5.0 dia) | 1 | ||
| 102-230 | COMPRESSOR & CLUTCH (12V, 5.0 dia) | 1 | ||
| 203-515 | OIL - compressor (solest 120) | A/R | ||
| 2 | 55-1117 | TEE (fl x mpt x fl) | 1 | |
| 3 | 44-3843 | SWITCH - lpco | 1 | |
| 4 | 44-3842 | DIODE - silicone rectifier | 1 | |
| 5 | 44-2907 | SWITCH - hpco | 1 | |
|
10-44-2907 | Выключатель высокого давления | 4 160 ₽ |
|
| 44-3843 | SWITCH - only | 1 | ||
| 33-768 | GASKET - flare | 1 | ||
| 6 | 55-665 | TEE - street | 1 | |
| 7 | 66-1911 | VALVE | 1 | |
| 8 | 11-2886 | VALVE | 1 | |
| 11-7777 | CORE | 1 | ||
| 55-5672 | CAP | 1 | ||
| 9 | 55-303 | NUT - flare | 2 | |
| 55-470 | BONNET | 2 | ||
| 10 | 66-2604 | TUBE | 1 | |
| 11 | 66-3782 | ADAPTER (3/4 fl x 3/4 sld) | 1 | |
| 12 | 33-594 | O-RING (7/8 id) | 1 | |
| 13 | 66-3781 | ADAPTER - suction | 1 | |
| 14 | 66-2603 | TUBE | 1 | |
| 15 | 55-6133 | SCREW (3/8-24 x 2.0) | 1 | |
| 55-375 | LOCKWASHER | 1 | ||
| 16 | 99-7019 | BLOCK - suction & discharge valves | 1 | |
| 22-480 | BUSHING - block alignment | 1 |
