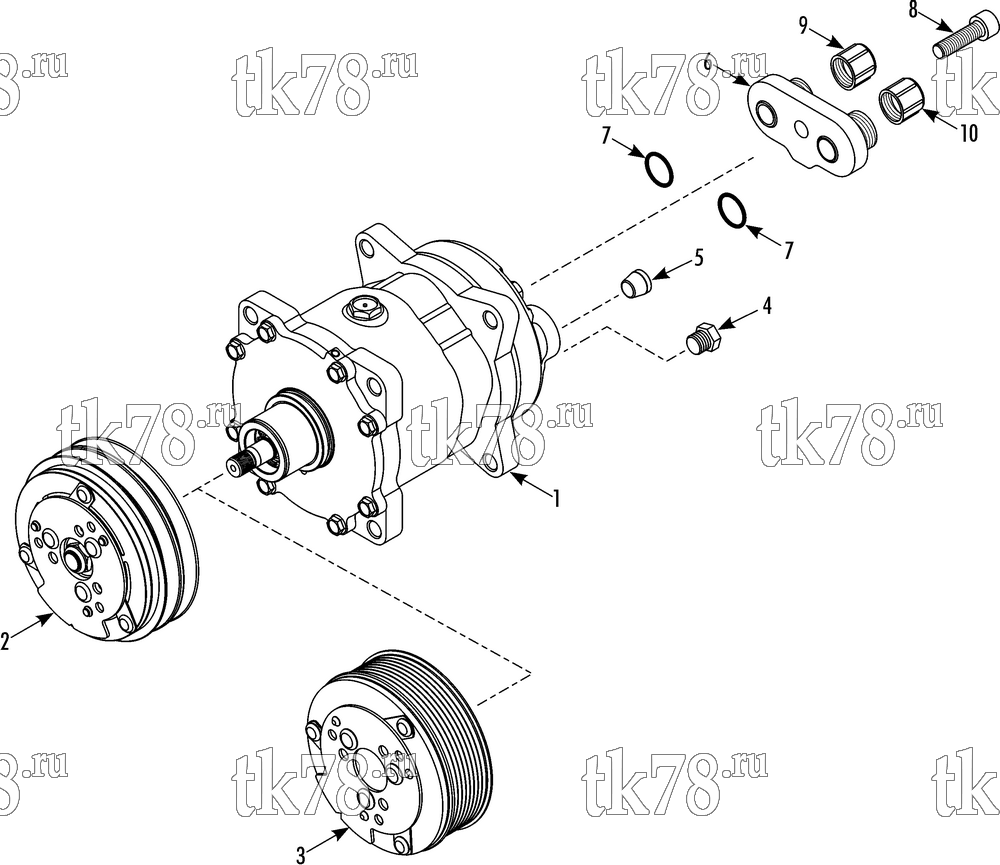

Установкa Thermo King схема COMPRESSOR GROUP (SD5H14) – 270E0
Обновление от: 8/28/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1009 | COMPRESSOR - SD5H14 R134a 12V, inc clutch) | 1 | |
| 102-1010 | COMPRESSOR - SD5H14 R134a 24V, inc clutch) | 1 | ||
| 102-887 | COMPRESSOR - SD5L14 R404A 12V, inc clutch) | 1 | ||
| 102-888 | COMPRESSOR - SD5L14 R404A 24V, inc clutch) | 1 | ||
| 102-1096 | COMPRESSOR - SD5L14 R404A 12V, inc clutch) | 1 | ||
| 102-1097 | COMPRESSOR - SD5L14 R404A 24V, inc clutch) | 1 | ||
| 102-889 | COMPRESSOR - SD5L14 R404A (less clutch) | 1 | ||
| 203-515 | OIL - compressor (ester base, 1 liter) | A/R | ||
| 203-505 | OIL - compressor (ester base, 8 oz) | A/R | ||
| 2 | 107-354 | CLUTCH (12V, 135 mm, double A groove) | 1 | |
| 107-355 | CLUTCH (24V, 135 mm, double A groove) | 1 | ||
| 3 | 107-421 | CLUTCH (12V, 119 mm, PV8 groove) | 1 | |
| 107-422 | CLUTCH (24V, 119 mm, PV8 groove) | 1 | ||
| 4 | 51-1600 | PLUG - oil | 1 | |
| 5 | 61-3773 | FILTER - suction | 1 | |
| 6 | 108-1228 | MANIFOLD - compressor | 1 | |
| 7 | 33-5051 | O-RING | 2 | |
| 8 | 55-9484 | SCREW - manifold (30 mm) | 1 | |
| 9 | 51-1672 | CAP - discharge (plastic) | 1 | |
| 10 | 51-1673 | CAP - suction (plastic) | 1 |
