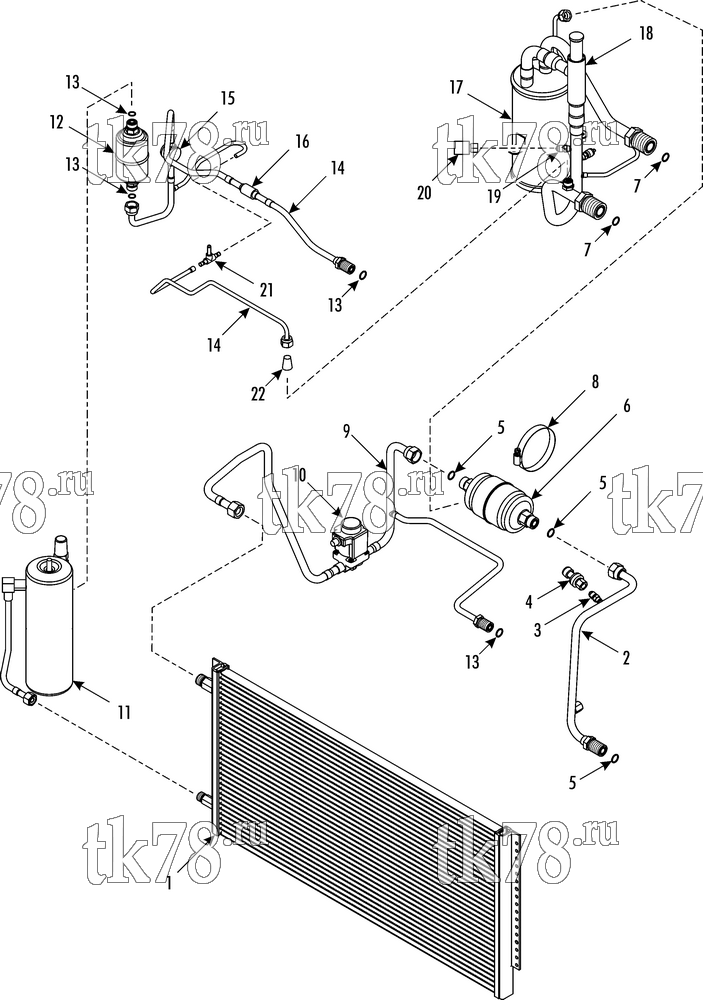

Установкa Thermo King схема REFRIGERATION GROUP (V-600 MAX 30) – 270C9
Обновление от: 5/3/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2429 | COIL - condenser | 1 | |
| 51-1924 | RIVET - coil | 4 | ||
| 2 | 61-5737 | TUBE - discharge | 1 | |
| 3 | 61-2504 | VALVE - service port | 1 | |
| 11-7777 | VALVE (Schrader) | 2 | ||
| 4 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 5 | 33-566 | O-RING (1/2 id, #8) | 3 | |
| 6 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 7 | 33-1222 | O-RING (3/4 id, #12) | 2 | |
| 8 | 55-6225 | CLAMP - filter/separator | 2 | |
| 9 | 61-5728 | TUBE - hot gas | 1 | |
| 10 | 66-9032 | VALVE - hot gas (see 193A5) | 1 | |
| 11 | 67-2680 | TANK - receiver | 1 | |
| 55-7339 | NUT - tank | 2 | ||
| 55-7085 | LOCKWASHER | 1 | ||
| 55-8548 | WASHER | 1 | ||
| 12 | 61-3853 | DEHYDRATOR | 1 | |
|
10-61-3853 | Дегидратор, V-400/500/600 | 1 280 ₽ |
|
| 13 | 33-1015 | O-RING (3/8 id, #6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 14 | 61-5731 | TUBE - liquid | 1 | |
| 15 | 61-4565 | INDICATOR - liquid | 1 | |
| 16 | 61-412 | VALVE - check | 1 | |
| 17 | 67-2683 | TANK - suction | 1 | |
| 18 | 22-954 | REGULATOR - suction pressure | 1 | |
| 19 | 11-7777 | VALVE | 1 | |
| 61-468 | CAP - valve | 1 | ||
| 20 | 44-8030 | SWITCH - low pressure cutout | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 21 | 61-6116 | SOLENOID - valve (liquid injection, see 269A7) | 1 | |
| 22 | 61-2694 | FILTER - liquid injection | 1 |
