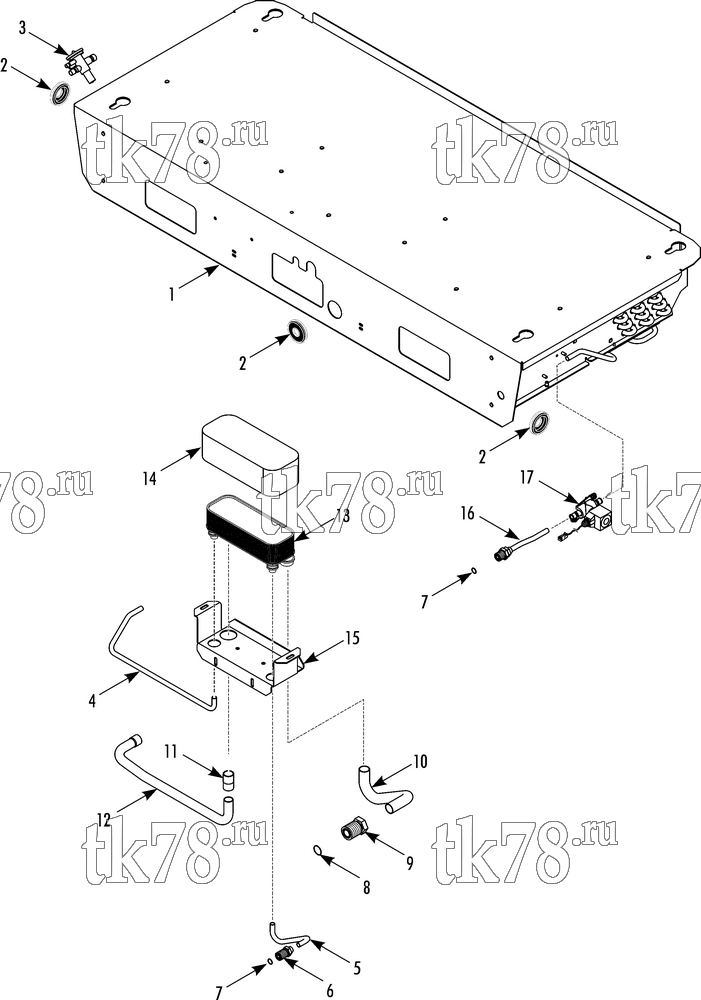

Установкa Thermo King схема EVAPORATOR REFRIGERATION ES600 – 270C2
Обновление от: 5/3/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2837 | COIL - evaporator | 1 | |
| 2 | 33-2923 | GROMMET | 3 | |
| 3 | 61-975 | VALVE - expansion | 1 | |
| 203-534 | TAPE - sealer | A/R | ||
| 4 | 61-6482 | TUBE - exchanger to expansion valve (liquid) | 1 | |
| 5 | 61-6483 | TUBE - bulkhead to exchanger (liquid) | 1 | |
| 6 | 61-434 | FITTING - liquid & hot gas (#6) | 1 | |
| 7 | 33-1015 | O-RING - liquid & hot gas (3/8 id, #6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 33-1222 | O-RING - suction (3/4 id, #12) | 1 | |
| 9 | 51-2102 | FITTING - suction (#12) | 1 | |
| 10 | 61-6484 | TUBE - exchanger to bulkhead (suction) | 1 | |
| 11 | 66-509 | BUSHING | 1 | |
| 12 | 61-6485 | TUBE - evaporator to exchanger | 1 | |
| 13 | 61-2527 | HEAT EXCHANGER | 1 | |
| 51-2508 | NUT - heat exchanger | 2 | ||
| 14 | 33-3444 | INSULATION - heat exchanger | 1 | |
| 15 | 93-950 | BRACKET - heat exchanger | 1 | |
| 51-2010 | SCREW - bracket | 4 | ||
| 51-2508 | NUT | 4 | ||
| 16 | 61-5473 | TUBE - fitting to valve | 1 | |
| 17 | 61-6110 | VALVE - solenoid (hot gas, see 269A7) | 1 |
