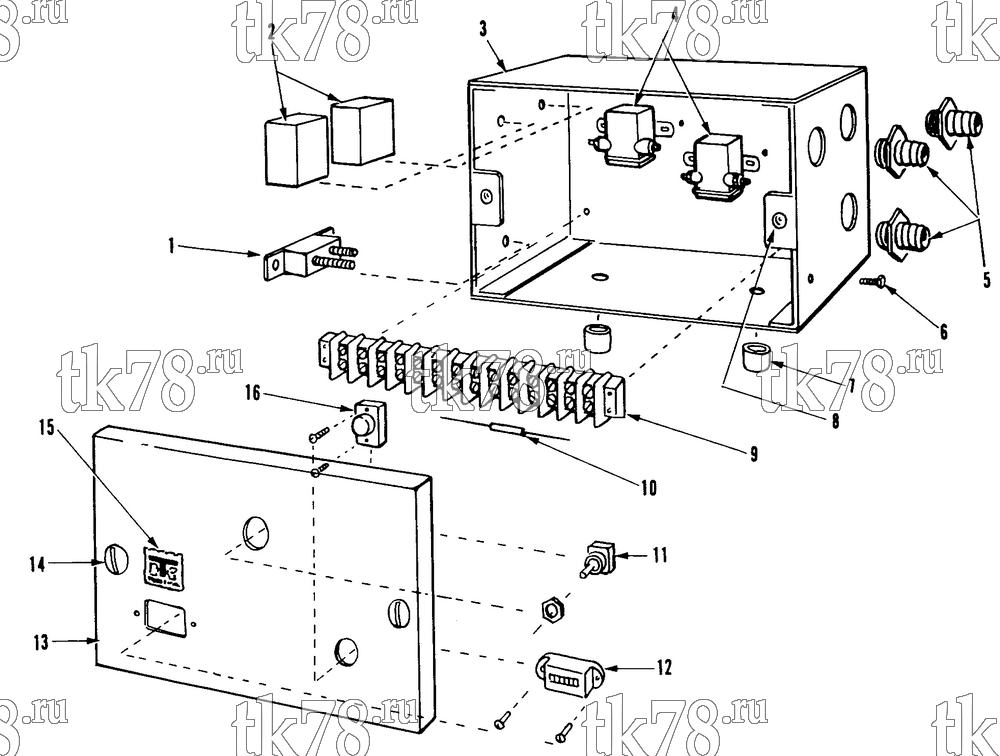

Установкa Thermo King схема CONTROL BOX (POWER PAC 24VDC) – 26F1
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-483 | BOX - control (complete, 24V) | 1 | ||
| 1 | 44-4238 | BREAKER - circuit | 1 | |
| 55-2995 | SCREW - breaker | 2 | ||
| 55-2001 | FLATWASHER - breaker | 2 | ||
| 55-664 | NUT - breaker | 2 | ||
| 2 | 44-3008 | RELAY - fuel & throttle | 2 | |
| 55-3256 | SCREW - relay | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 3 | 98-1282 | BOX - only | 1 | |
| 99-3395 | BRACKET | 1 | ||
| 4 | 41-3987 | SOLENOID (24V) | 2 | |
| 99-3526 | NAMEPLATE - Glow Plug Relay | 1 | ||
| 5 | 55-2788 | FITTING - barb | 3 | |
| 33-144 | O-RING | 3 | ||
| 55-2635 | NUT | 3 | ||
| 6 | 44-4229 | STRAP - ground | 1 | |
| 55-3507 | SCREW | 1 | ||
| 55-1852 | LOCKWASHER | 2 | ||
| 55-3496 | LOCKWASHER | 1 | ||
| 55-401 | WASHER | 1 | ||
| 55-346 | NUT | 2 | ||
| 7 | 99-2545 | MOUNT - vibration | 4 | |
| 55-165 | SCREW - bracket to box | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-927 | NUT | 4 | ||
| 8 | 55-2658 | RECEPTACLE | 2 | |
| 55-2270 | RIVET | 4 | ||
| 9 | 44-3551 | BOARD - terminal | 1 | |
| 99-3396 | MARKSTRIP | 1 | ||
| 44-2915 | STRIP - jumper | 1 | ||
| 55-2995 | SCREW - board | 2 | ||
| 55-2001 | FLATWASHER - board | 2 | ||
| 55-664 | NUT - board | 2 | ||
| 10 | 44-4228 | DIODE - assembly | 1 | |
| 44-5763 | DIODE | 1 | ||
| 11 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 44-739 | BOOT - switch | 1 | ||
| 99-3453 | NAMEPLATE - Switch | 1 | ||
| 12 | 44-5703 | HOURMETER | 1 | |
|
10-44-5703 | Счетчик часов | 6 030 ₽ |
|
| 55-3526 | SCREW | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-1516 | NUT | 2 | ||
| 13 | 99-3397 | COVER | 1 | |
| 33-1041 | GASKET - cover | 1 | ||
| 14 | 55-3073 | STUD | 2 | |
| 55-2657 | WASHER | 2 | ||
| 15 | 99-1739 | NAMEPLATE - TK | 1 | |
| 99-2477 | NAMEPLATE - 24 Volt | 1 | ||
| 16 | 44-1390 | SWITCH - assembly | 1 | |
| 40-1082 | SWITCH - only | 1 | ||
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1376 | RESISTOR (20 ohm) | 1 | ||
| 44-2119 | SEAL - pushbutton | 1 | ||
| 55-3022 | SCREW | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-927 | NUT | 2 | ||
| 44-2739 | NAMEPLATE - Push to Reset | 1 |
