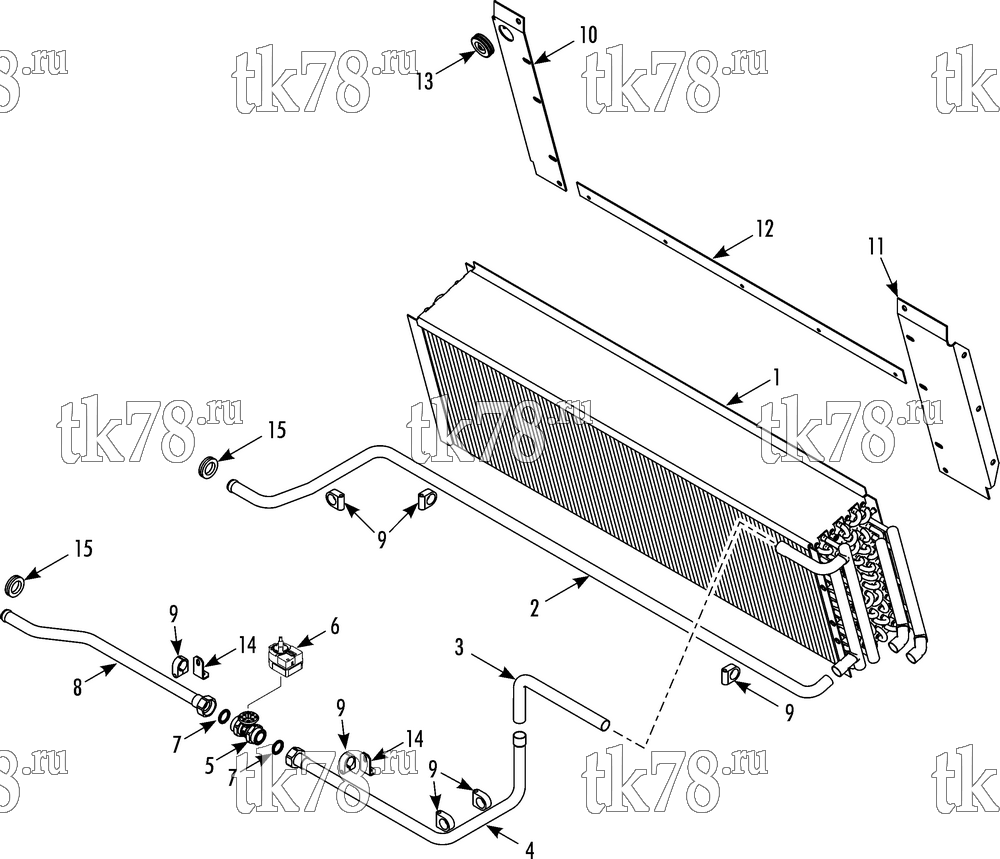

Установкa Thermo King схема HEATER COMPONENTS – 269G9
Обновление от: 7/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2553 | COIL - evaporator w/heat | 1 | |
| 55-1587 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-8976 | INSERT | 6 | ||
| 2 | 61-5858 | TUBE - coolant, inlet | 1 | |
| 3 | 61-5189 | TUBE - coolant, outlet | 1 | |
| 4 | 61-6580 | TUBE - coolant, coil to valve | 1 | |
| 5 | 61-6519 | VALVE - coolant 24V | 1 | |
| 6 | 42-1150 | ACTUATOR - valve, coolant | 1 | |
| 7 | 33-5156 | O-RING - valve inlet/ outlet | 2 | |
| 8 | 61-6581 | TUBE - coolant, outlet | 1 | |
| 9 | 55-7013 | CLAMP - tube (.875 id) | 7 | |
| 55-2979 | SCREW - clamp | 7 | ||
| 55-4953 | NUT | 7 | ||
| 10 | 92-8464 | BRACKET - coil | 1 | |
| 11 | 92-8731 | BRACKET - coil | 1 | |
| 12 | 92-8466 | PLATE - cover (evap bottom) | 1 | |
| 55-2957 | SCREW | 15 | ||
| 55-2086 | FLATWASHER | 15 | ||
| 55-1800 | LOCKWASHER | 15 | ||
| 13 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 14 | 93-1227 | BRACKET - coolant tube | 2 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 15 | 33-507 | GROMMET (.875 id) | 2 |
