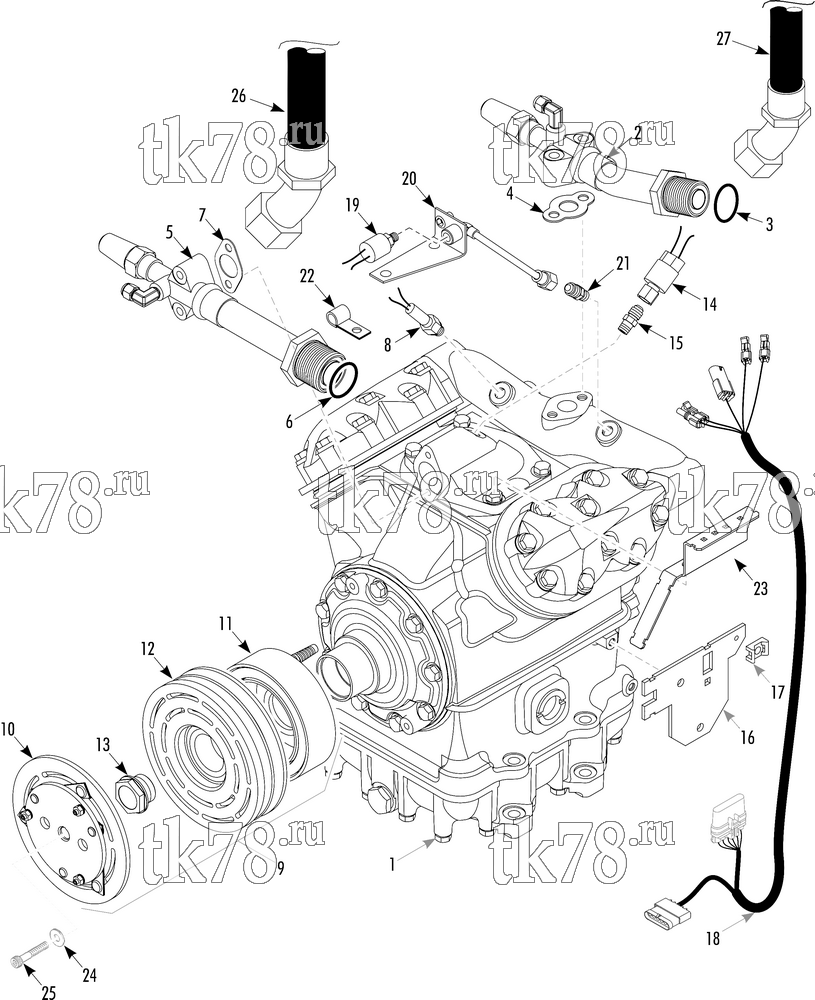

Установкa Thermo King схема COMPRESSOR GROUP (KIT 703803) – 269E8
Обновление от: 7/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 8102-917 | COMPRESSOR - X430 C5 (subassy, reman, see 228E5) | 1 | ||
| 2 | 66-9406 | VALVE - discharge (see 151B5) | 1 | |
| 55-6776 | SCREW - discharge valve | 2 | ||
| 55-6804 | WASHER - sealing | 2 | ||
| 3 | 33-1785 | O-RING (#16, discharge) | 1 | |
| 4 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 5 | 66-9404 | VALVE - suction (see 151B4) | 1 | |
| 55-201 | SCREW - suction valve | 2 | ||
| 55-895 | FLATWASHER | 2 | ||
| 6 | 33-1777 | O-RING (#20, suction) | 1 | |
| 7 | 33-2541 | GASKET - suction valve | 1 | |
| 8 | 41-3345 | SENSOR - thermistor (discharge) | 1 | |
| 9 | 107-415 | CLUTCH - assembly | 1 | |
| 10 | 77-3097 | PLATE | 1 | |
| 11 | 42-937 | FIELD - clutch (24V) | 1 | |
| 12 | 77-3096 | PULLEY (2-5V grooves, 7.75 in od) | 1 | |
| 13 | 51-2377 | NUT - retainer | 1 | |
| 14 | 41-4558 | SWITCH - lpco | 1 | |
| 41-4559 | SWITCH - only | 1 | ||
| 15 | 55-7213 | ADAPTER - flare | 1 | |
| 33-768 | GASKET - adapter | 1 | ||
| 203-393 | SEALER - thread | A/R | ||
| 16 | 92-5945 | BRACKET - compressor harness | 2 | |
| 55-3834 | SCREW - bracket | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 17 | 99-3281 | MOUNT - cable tie | 1 | |
| 55-5047 | RIVET - mount | 1 | ||
| 18 | 41-4810 | HARNESS - compressor (see 246D2) | 1 | |
| 19 | 41-4486 | SWITCH - hpco | 1 | |
| 41-4809 | SWITCH - only | 1 | ||
| 20 | 91-8288 | BRACKET - remote hpco | 1 | |
| 21 | 55-459 | COUPLING | 1 | |
| 22 | 55-9298 | CLAMP (0.187 dia) | 3 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 23 | 92-5946 | BRACKET - compressor harness | 1 | |
| 24 | 77-2498 | WASHER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 25 | 55-5283 | SCREW - clutch | 1 | |
| 26 | NSS | HOSE - suction (not supplied by Thermo King) | 1 | |
| 27 | NSS | HOSE - discharge (not supplied by Thermo King) | 1 |
