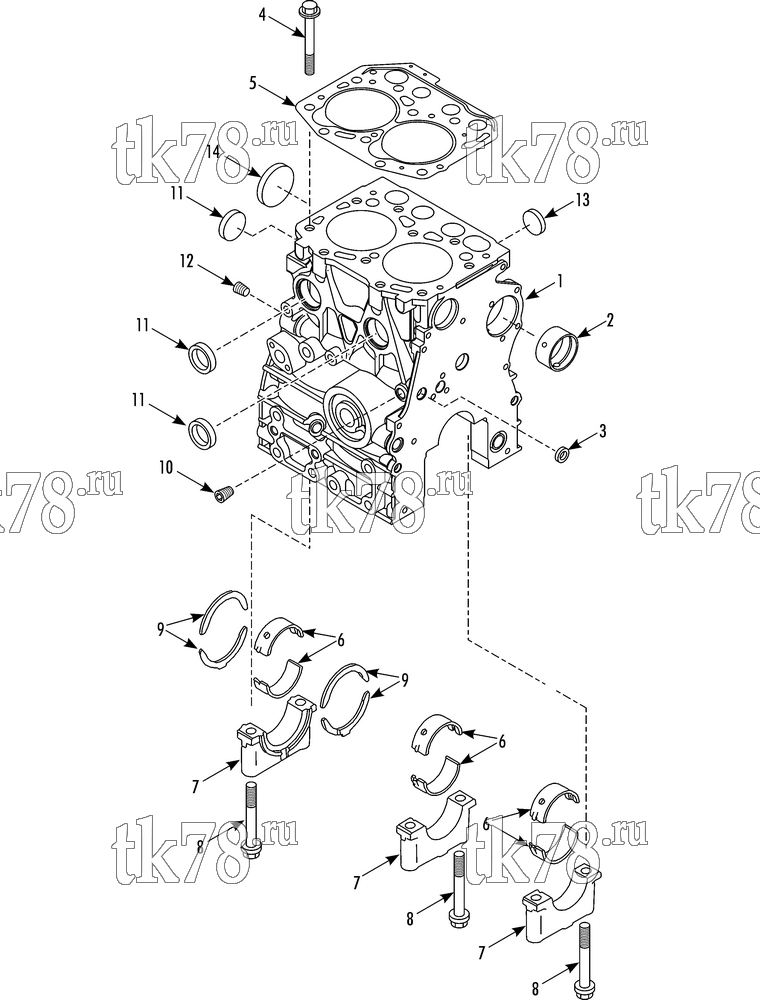

Установкa Thermo King схема CYLINDER BLOCK GROUP (2TNV70F TKA) – 268H1
Обновление от: 6/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-404 | ENGINE - 2TNV70F-TKA Tier 4 (TriPac) | 1 | ||
| 1 | NSS | BLOCK - cylinder | 1 | |
| 2 | 13-843 | BUSHING - camshaft | 1 | |
| 13-843 OEM | Втулка распредвала, Yanmar 370 / 376 | 1 790 ₽ |
|
|
| 3 | 11-6555 | PLUG (12 mm) | 1 | |
|
10-10-486FP | Заглушки блока, к-т, Yanmar 482 / 486 / 486V | 4 110 ₽ |
|
|
10-10-395FPB | Заглушки блока, к-т, Yanmar 395 | 2 900 ₽ |
|
| 4 | 51-1294 | SCREW - cylinder head | 10 | |
| 5 | 33-4220 | GASKET - cylinder head | 1 | |
| 6 | 13-844 | BEARING - main (standard, 3 sets per engine) | 3 | |
| 13-844 OEM | Вкладыш коренной STD, Yanmar 370 / 376 | 6 530 ₽ |
|
|
| PP-13-844 | Вкладыш коренной STD, Yanmar 370 / 376 | 2 420 ₽ |
|
|
| 13-846 | BEARING - main (0.25 us, 3 sets per engine) | 3 | ||
| 7 | NSS | CAP - bearing housing | 3 | |
| 8 | 55-6178 | SCREW - bearing cap | 6 | |
| 9 | 13-553 | BEARING - thrust (standard, 2 sets per engine) | 2 | |
| 13-845 | BEARING - thrust (0.25 mm us, 2 sets per engine) | 2 | ||
| 13-845 OEM | Вкладыш упорный STD, к-т, Yanmar 376 | 3 480 ₽ |
|
|
| 10 | 55-4593 | PLUG (1/8) | 1 | |
| 11 | 11-5499 | PLUG (30 mm) | 3 | |
|
|
10-10-486FP | Заглушки блока, к-т, Yanmar 482 / 486 / 486V | 4 110 ₽ |
|
|
|
10-10-395FPB | Заглушки блока, к-т, Yanmar 395 | 2 900 ₽ |
|
| 12 | 55-6176 | PLUG (1/4) | 1 | |
| 13 | 55-5779 | PLUG (25 mm) | 2 | |
| 14 | 51-590 | PLUG (45 mm) | 1 | |
|
|
10-10-486FP | Заглушки блока, к-т, Yanmar 482 / 486 / 486V | 4 110 ₽ |
|
|
|
10-10-395FPB | Заглушки блока, к-т, Yanmar 395 | 2 900 ₽ |
|
| 30-281 | GASKET SET - engine overhaul (see 209A0) | 1 |
