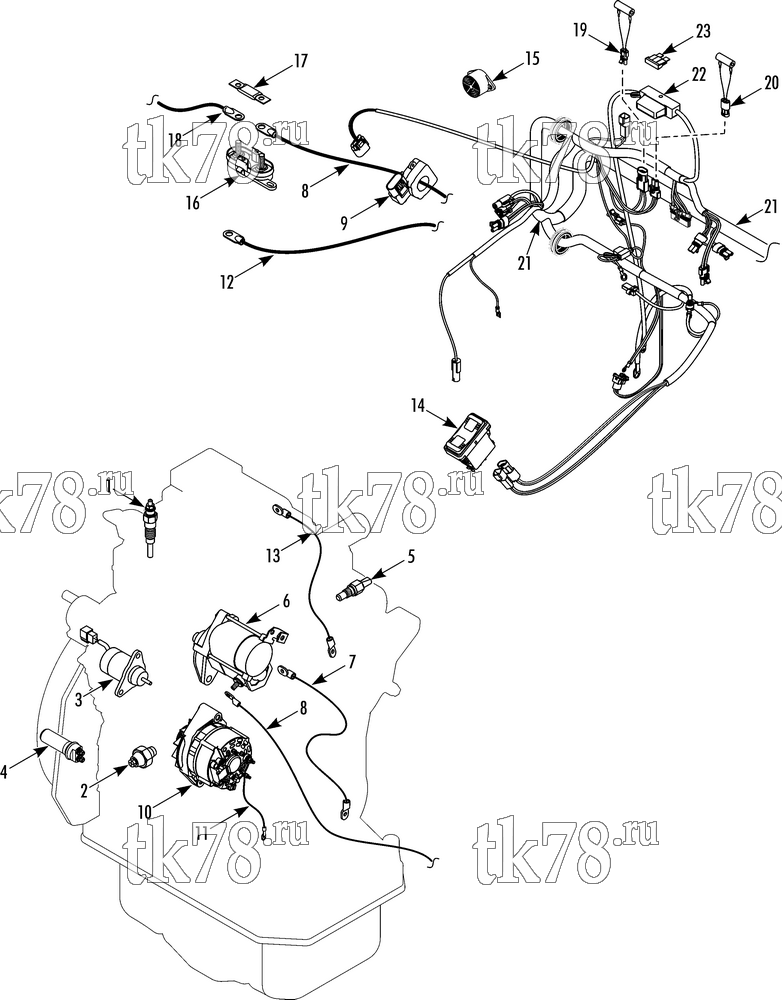

Установкa Thermo King схема APU ELECTRICAL COMPONENTS – 268H0
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-916 | GLOW PLUG (see 268H2) | 2 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| 2 | 41-6801 | SWITCH - oil pressure (see 268H4) | 1 | |
| 20-41-6801 | Выключатель давления масла | 3 400 ₽ |
|
|
| 3 | 42-100 | SOLENOID - stop (see 268H8) | 1 | |
|
10-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 8 670 ₽ |
|
| PP-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 4 870 ₽ |
|
|
|
PP-41-6383 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 2 000 ₽ |
|
| 4 | 42-1002 | SENSOR - rpm | 1 | |
| 5 | 42-978 | SENSOR - coolant | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 6 | 45-1718 | STARTER 1.4 kW (see 268H6) | 1 | |
|
10-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 12 860 ₽ |
|
| PP-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 9 620 ₽ |
|
|
| 45-2326 | STARTER (standard life plus) | 1 | ||
| 845-2326 | STARTER (remanufactured) | 1 | ||
| 7 | 41-8852 | HARNESS - starter | 1 | |
| 8 | 42-1115 | CABLE - starter positive | 1 | |
| 9 | 41-9376 | SENSOR - current | 1 | |
| 10 | NSS | ALTERNATOR (see 269D4) | 1 | |
| 11 | 42-1116 | CABLE - alternator to ground | 1 | |
| 12 | 41-7507 | CABLE - battery (negative, 240 inch) | 1 | |
| 13 | 42-922 | CABLE - ground (engine to frame) | 1 | |
| 14 | 41-8737 | SWITCH - on/off (rocker) | 1 | |
| 15 | 41-7736 | BUZZER - warning (12V, w/ leads) | 1 | |
| 16 | 41-7008 | HOLDER - fuse | 1 | |
| 30-41-7008 | Гнездо предохранителя | 1 820 ₽ |
|
|
| 17 | 41-9758 | FUSE - battery (200 amp) | 1 | |
| 18 | 41-7016 | CABLE - battery (positive, 12 inch) | 1 | |
| 19 | 42-1173 | HARNESS - loadshed (low, 2 ohms) | 1 | |
| 42-1174 | RESISTOR (2 ohms) | 1 | ||
| 20 | 42-1175 | HARNESS - loadshed (hi, 4 ohms) | 1 | |
| 42-1176 | RESISTOR (4 ohms) | 1 | ||
| 21 | 42-1114 | HARNESS - main | 1 | |
| 22 | 41-3665 | HOLDER - fuse | 1 | |
| 23 | 41-7420 | FUSE (50 amp) | 1 | |
|
30-41-7420 | Предохранитель 50А | 840 ₽ |
|
| 203-524 | GEL - anti corrosion | A/R |
