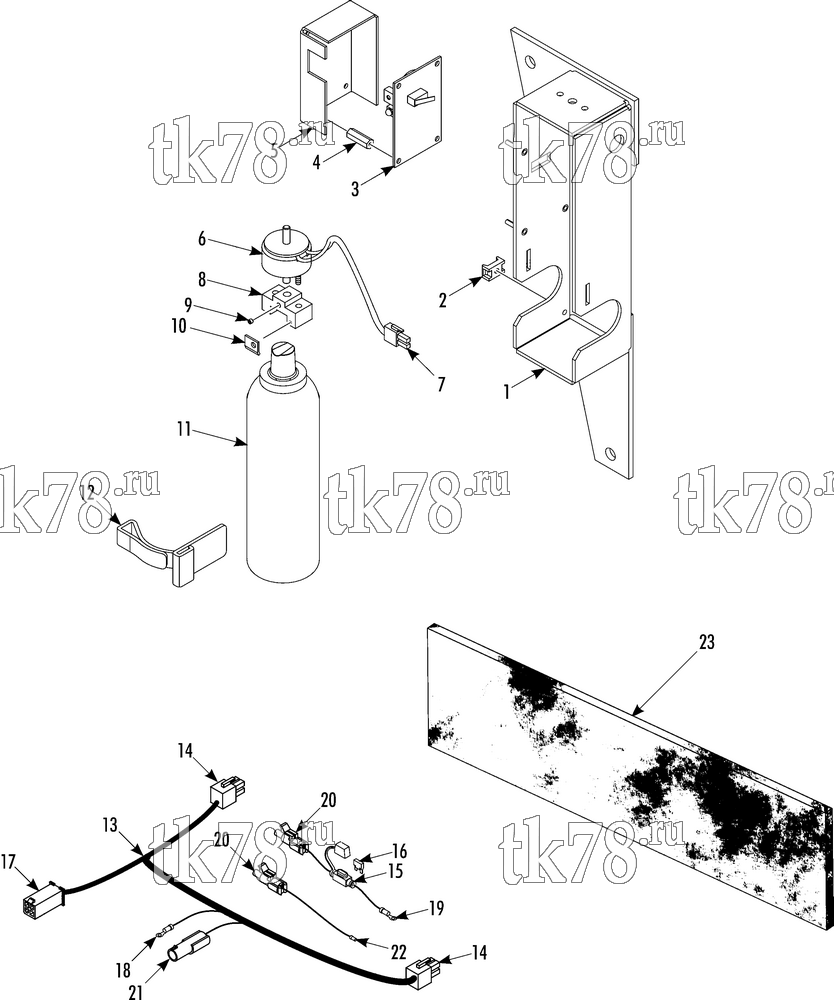

Установкa Thermo King схема ENVIROFRESH OPTION T14 (008983) – 268F8
Обновление от: 6/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8597 | BOX - Envirofresh | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 2 | 99-3427 | MOUNT - cable tie | 1 | |
| 55-2988 | RIVET - mount | 1 | ||
| 55-2330 | WRAP - band | 1 | ||
| 3 | 41-7395 | BOARD - pc, spray control | 1 | |
| 55-2359 | FLATWASHER | 8 | ||
| 55-2360 | LOCKWASHER | 8 | ||
| 55-2361 | NUT - pc board | 4 | ||
| 4 | 92-5850 | STANDOFF | 4 | |
| 5 | 92-5851 | COVER - pc board | 1 | |
| 55-3427 | SCREW - cover | 1 | ||
| 6 | 41-7935 | SOLENOID | 1 | |
| 7 | 41-1507 | CONNECTOR (2-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 2 | ||
| 8 | 92-5853 | PLUNGER - spray nozzle | 1 | |
| 9 | 55-1768 | SCREW - set | 1 | |
| 10 | 92-6242 | PLATE - nozzle support | 1 | |
| 55-3513 | SCREW - plate | 1 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-3013 | FLATWASHER | 1 | ||
| 11 | 203-553 | BOTTLE - Envirofresh fragrance | 1 | |
| 12 | 51-1567 | GRIP - tie | 1 | |
| 13 | 42-1029 | HARNESS - Envirofresh | 1 | |
| 14 | 41-654 | CONNECTOR (4-pin) | 2 | |
| 41-1807 | SOCKET (18-24 ga) | A/R | ||
| 15 | 42-1030 | HOLDER - fuse | 1 | |
| 16 | 41-4551 | FUSE - mini (5 amp, 32V) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 17 | 41-8221 | CONNECTOR - in line (4 pin) | 1 | |
| 651-148 | PIN (18-24 ga) | 4 | ||
| 18 | 44-7245 | TERMINAL - ring (10 red, 22-16 ga) | 1 | |
| 19 | 44-2793 | TERMINAL - ring (yellow) | 1 | |
| 20 | 44-7327 | CONNECTOR - tower (1 pin) | 2 | |
| 21 | 44-7330 | CONNECTOR - shroud (1 pin) | 1 | |
| 22 | 41-8841 | TERMINAL - fuse (14-16 awg) | 1 | |
| 55-2332 | BANDWRAP | 1 | ||
| 23 | 92-6885 | FILTER - air (13.50 x 42.75 in, anti-microbial) | 1 |
