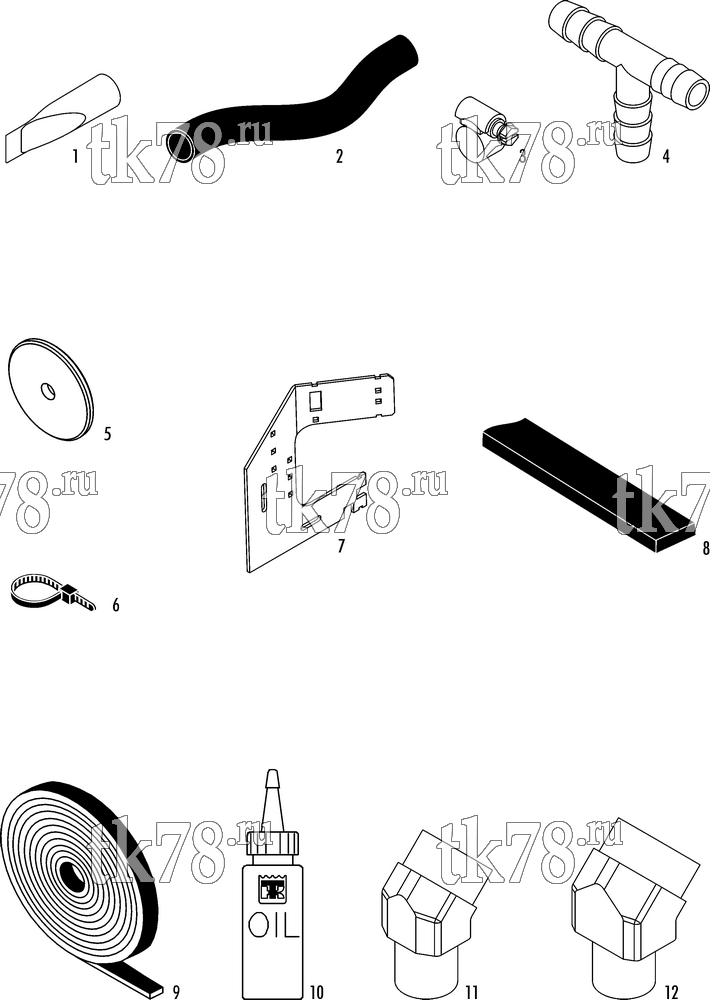

Установкa Thermo King схема INSTALLATION COMPONENTS – 268F1
Обновление от: 2/26/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - check | 4 | |
| 2 | 61-5417 | HOSE (16M) | 1 | |
| 3 | 55-6726 | CLAMP | 10 | |
| 4 | 55-6349 | TEE | 2 | |
| 5 | 55-8542 | WASHER - special | 6 | |
| 6 | 55-2330 | BANDWRAP (1.75 dia) | 20 | |
| 7 | 93-811 | BRACKET - compressor (701513) | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 8 | 99-9251 | STRIP - neoprene (0.62 thk) | A/R | |
| 9 | 203-391 | SEALER - tape (permagum) | A/R | |
| 10 | 203-505 | OIL - compressor (POE, 8 oz) | A/R | |
| 203-515 | OIL - compressor (SOLEST, 1L) | A/R | ||
| 11 | 55-5887 | ADAPTER (#20) | 1 | |
| 12 | 55-7050 | ADAPTER (#24) | 1 |
