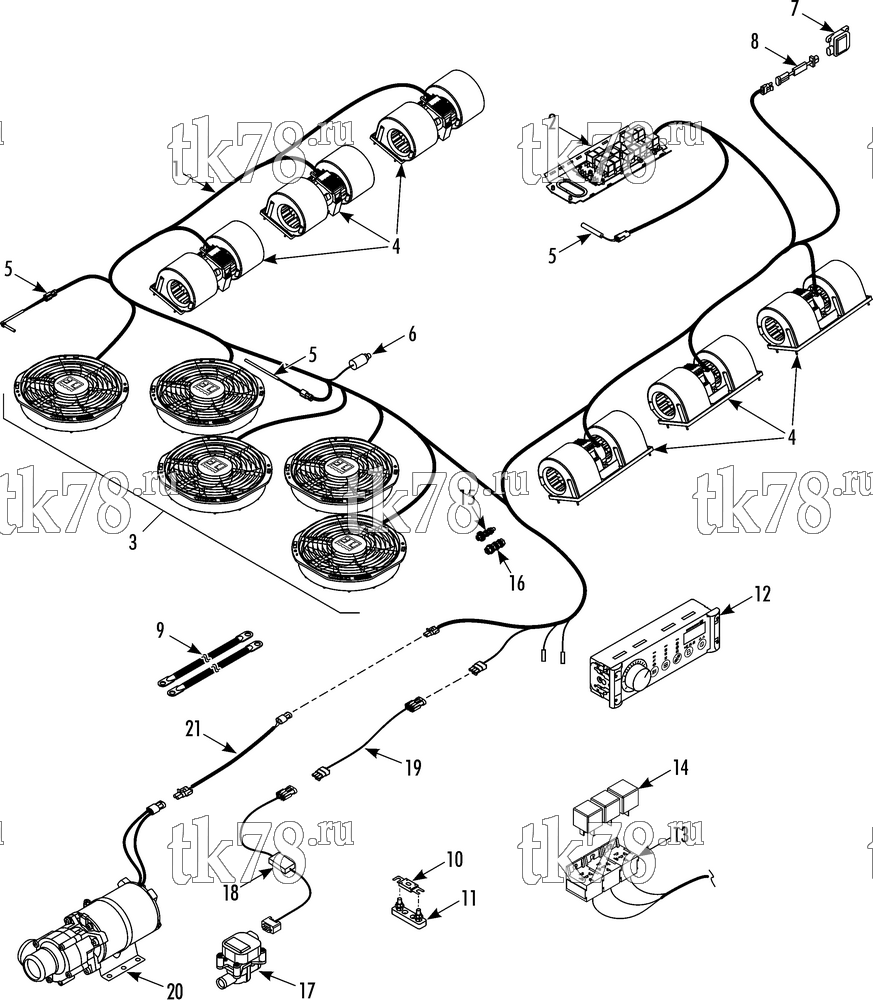

Установкa Thermo King схема ELECTRICAL COMPONENTS – 268E6
Обновление от: 2/26/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-991 | HARNESS - main (see 268E7) | 1 | |
| 2 | NSS | PANEL - control (703307 & 703282, see 268E1) | 1 | |
| 3 | 78-1344 | FAN - condenser (703307) | 5 | |
| 78-1799 | FAN - condenser (703282) | 5 | ||
| 4 | 78-1297 | BLOWER - evaporator (703307) | 6 | |
| 78-1798 | BLOWER - evaporator (703282) | 6 | ||
| 5 | 41-4157 | SENSOR - temperature | A/R | |
| 6 | 41-5220 | SWITCH - hpco | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 7 | 41-3255 | SERVOMOTOR (see 262B8) | 1 | |
| 8 | 41-7190 | CONTROLLER - servomotor (see 262B8) | 1 | |
| 9 | 41-8520 | CABLE - battery (red, 5M) | 1 | |
| 41-8521 | CABLE - battery (black, 5M) | 1 | ||
| 10 | 44-8709 | FUSE (130 amp) | 1 | |
| 11 | 44-8708 | HOLDER - fuse | 1 | |
| 12 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 13 | 42-997 | HARNESS - relays | 1 | |
| 14 | 41-896 | RELAY | 3 | |
| 15 | 55-9191 | STUD - ground | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9189 | NUT | 4 | ||
| 16 | 55-9367 | STUD - power (plus) | 1 | |
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8631 | WASHER - nylon | 1 | ||
| 55-8955 | WASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 305-1653 | NUT | 4 | ||
| 17 | 41-5649 | VALVE - coolant 3 way | 1 | |
| 41-9943 | VALVE - coolant 2 way | 1 | ||
| 18 | 41-6767 | CONTROLLER - servomotor | 1 | |
| 19 | 41-6792 | HARNESS - coolant valve (10M) | 1 | |
| 20 | 12-822 | PUMP - coolant | 1 | |
| 21 | 41-4143 | HARNESS - pump (14M) | 1 |
