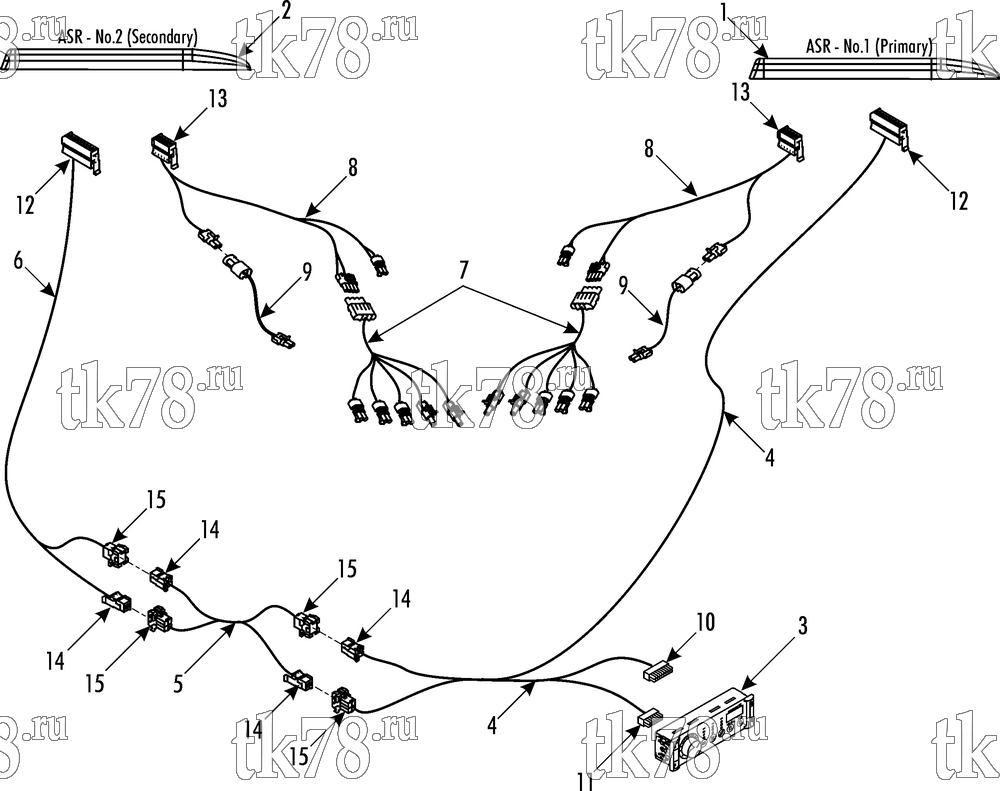

Установкa Thermo King схема ELECTRICAL COMPONENTS (EXTERNAL) – 268E0
Обновление от: 2/26/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | UNIT - primary | 1 | |
| 2 | NSS | UNIT - secondary | 1 | |
| 3 | 41-4658 | ClimaAIRE II - assembly (see 184F9) | 1 | |
| 4 | 41-6850 | HARNESS - driver panel (16M, 720753) | 1 | |
| 42-992 | HARNESS - driver panel (7M, 701897) | 1 | ||
| 42-998 | HARNESS - driver panel (4M, 701022) | 1 | ||
| 42-999 | HARNESS - driver panel (7M, 701769) | 1 | ||
| 5 | 41-6852 | HARNESS - extension (3M, 720753) | 1 | |
| 42-993 | HARNESS - extension (3M, 701769) | 1 | ||
| 41-8726 | HARNESS - extension (4M, 701022) | 1 | ||
| 42-994 | HARNESS - extension (5M, 701674) | 1 | ||
| 6 | 41-6854 | HARNESS - secondary unit (4M, 720753) | 1 | |
| 42-995 | HARNESS - secondary unit (4M, 701022) | 1 | ||
| 7 | 41-6878 | HARNESS - compressor (QS616B, CA II,) | 1 | |
| 8 | 41-9167 | HARNESS - compressor (QS616B, 14M, 701770) | 1 | |
| 41-6857 | HARNESS - compressor (QS616B, 18M, 720753) | 1 | ||
| 42-996 | HARNESS - compressor (QS616B, 18M, 700954) | 1 | ||
| 9 | 41-4143 | HARNESS - boost pump (14M) | 1 | |
| 10 | 41-650 | CONNECTOR (18-pin) | A/R | |
| 11 | 41-661 | CONNECTOR (14-pin) | A/R | |
| 12 | 41-3856 | CONNECTOR (18-pin) | A/R | |
| 13 | 41-3855 | CONNECTOR (10-pin) | A/R | |
| 14 | 44-9903 | PLUG (8 terminal) | A/R | |
| 15 | 44-9900 | RECEPTACLE (8-pin) | A/R |
