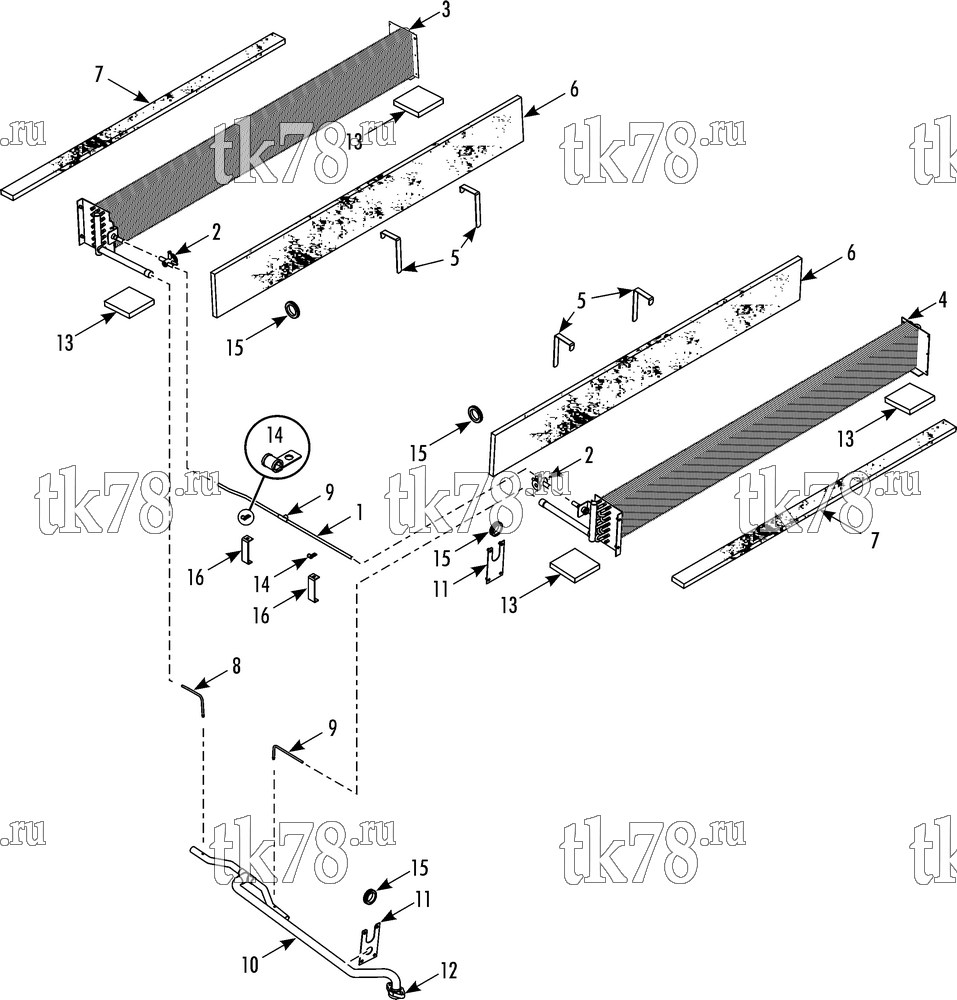

Установкa Thermo King схема EVAPORATOR REFRIGERATION COMPONENTS 1004 (LEFT SIDE IN/OUT) – 268D0
Обновление от: 2/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6231 | TUBE - liquid | 1 | |
| 2 | 66-9900 | VALVE - expansion (R134a) | 2 | |
| 61-5657 | VALVE - expansion (R407c) | 2 | ||
| 3 | 67-2825 | COIL - evaporator | 1 | |
| 4 | 67-2826 | COIL - evaporator | 1 | |
| 5 | 92-5664 | CLIP | 4 | |
| 6 | 92-5663 | FILTER - air | 2 | |
| 7 | 92-7800 | FILTER - evaporator | 2 | |
| 8 | 61-6232 | TUBE - equalizer | 1 | |
| 9 | 61-6233 | TUBE - equalizer | 1 | |
| 10 | 61-6238 | TUBE - suction | 1 | |
| 11 | 93-249 | PLATE - brass | 1 | |
| 12 | 55-9186 | FLANGE | 1 | |
| 13 | 92-7801 | FILTER - evaporator | 2 | |
| 14 | 55-2239 | CLAMP (.375 id) | 2 | |
| 15 | 33-1213 | GROMMET (.50 id) | 1 | |
| 33-367 | GROMMET (.625 id) | 1 | ||
| 33-1770 | GROMMET (.875 id) | 4 | ||
| 33-1770 | GROMMET (1.5 id) | 4 | ||
| 33-1371 | GROMMET (1.703 id) | 2 | ||
| 16 | 93-250 | BRACKET - tube | 2 |
