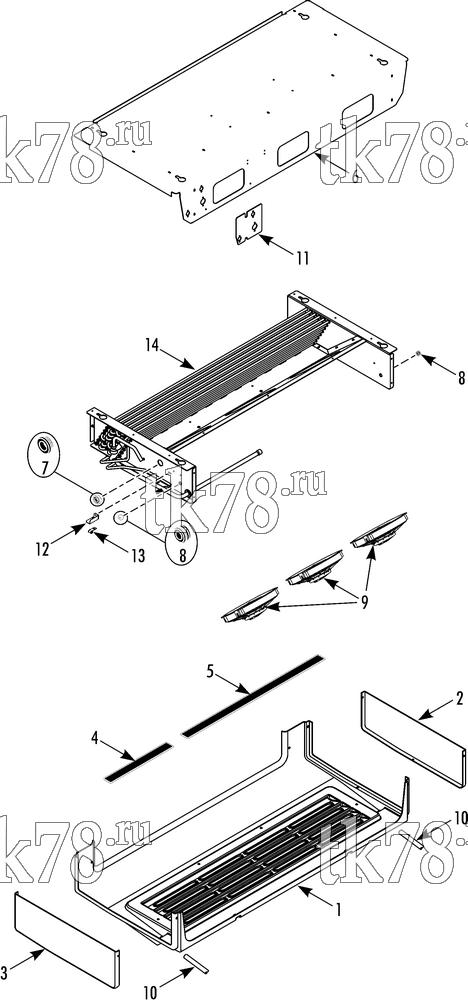

Установкa Thermo King схема EVAPORATOR COVER AND FANS – 268B8
Обновление от: 3/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-752 | COVER - middle | 1 | |
| 2 | 93-748 | COVER - right | 1 | |
| 3 | 93-747 | COVER - left | 1 | |
| 55-7340 | SCREW - cover | A/R | ||
| 55-5970 | WASHER - sealing | A/R | ||
| 51-1610 | WASHER | A/R | ||
| 4 | 33-4594 | LINING | 1 | |
| 5 | 33-4595 | LINING | 1 | |
| 6 | 93-751 | COVER - top | 1 | |
| 7 | 33-572 | GROMMET (.75 id) | 1 | |
| 8 | 33-547 | GROMMET (.375 id) | 2 | |
| 9 | 78-1373 | FAN - evaporator, 12V | 3 | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator, 24V | 3 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 10 | 92-3466 | TUBE - drain | 2 | |
| 11 | 93-749 | BRACKET | 1 | |
| 12 | 93-754 | BRACKET | 1 | |
| 13 | 55-2239 | CLAMP (.375 dia) | 1 | |
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7033 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-8375 | NUT | 1 | ||
| 14 | 67-2816 | COIL - evaporator (see 268B9) | 1 |
