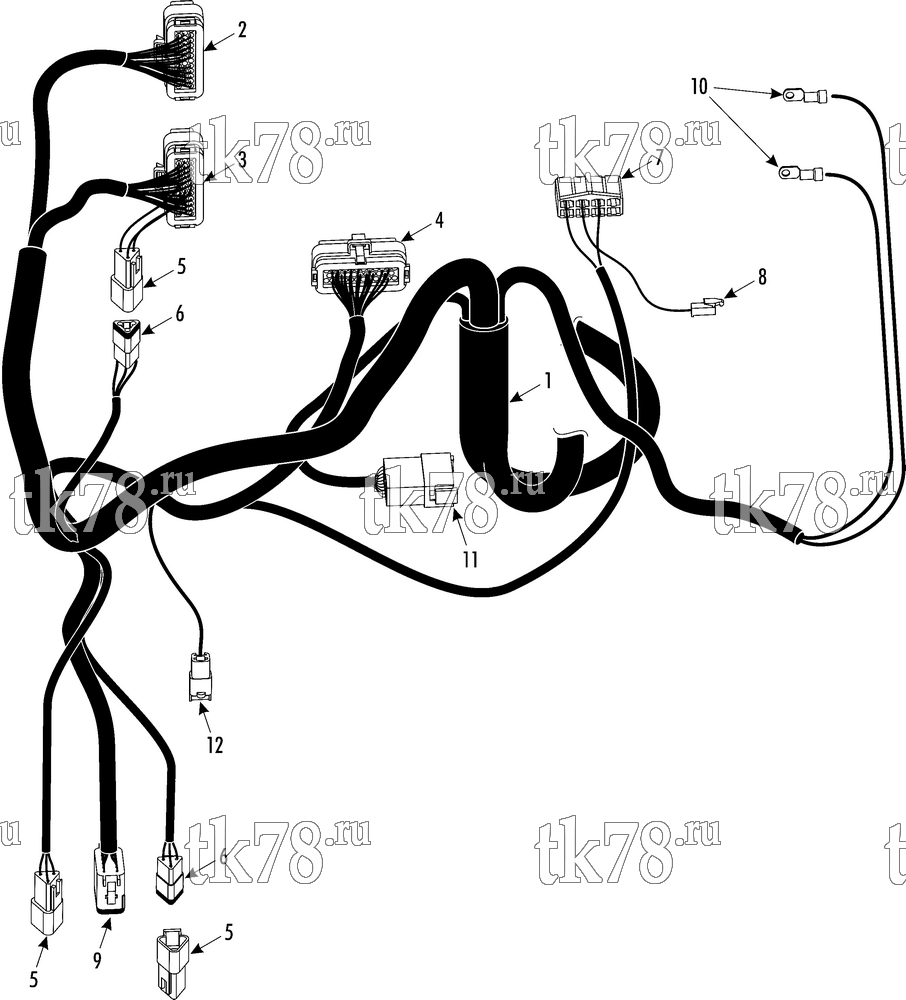

Установкa Thermo King схема MAIN HARNESS C-600 (control box) – 267H4
Обновление от: 5/2/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-1108 | HARNESS - main (also see 267H5) | 1 | |
| 2 | 41-5190 | PLUG - J1 (35-pin, white) | 1 | |
| 3 | 41-2407 | PLUG - J3 (35-pin, black) | 1 | |
| 4 | 41-3359 | PLUG - J4 (35-pin, gray) | 1 | |
| 41-2457 | TERMINAL - socket | 61 | ||
| 5 | 44-9544 | RECEPTACLE - DS-INT, ALT AFA (3-pin) | 3 | |
| 6 | 44-9631 | CONNECTOR - DS-INT-01 (3-pin, w/ seal) | 2 | |
| 7 | 44-5719 | CONNECTOR - J16 (8-pin) | 1 | |
| 44-5631 | TERMINAL - fingrip (18-20 ga) | 3 | ||
| 8 | 41-6257 | CONNECTOR - 8D (1-pin) | 1 | |
| 9 | 44-9600 | PLUG - C_KIT (12-pin, w/ seal) | 1 | |
| 10 | 44-2792 | TERMINAL - ring (yellow #10) | 2 | |
| 11 | 44-9904 | RECEPTACLE - EVAPS_HMI (12-pin) | 1 | |
| 12 | 44-6292 | CONNECTOR - FH-OPT (1-pin) | 1 | |
| 55-7702 | TERMINAL - fingrip (16-18 ga) | 3 | ||
| 42-517 | TERMINAL - fingrip (12-14 ga) | 5 |
