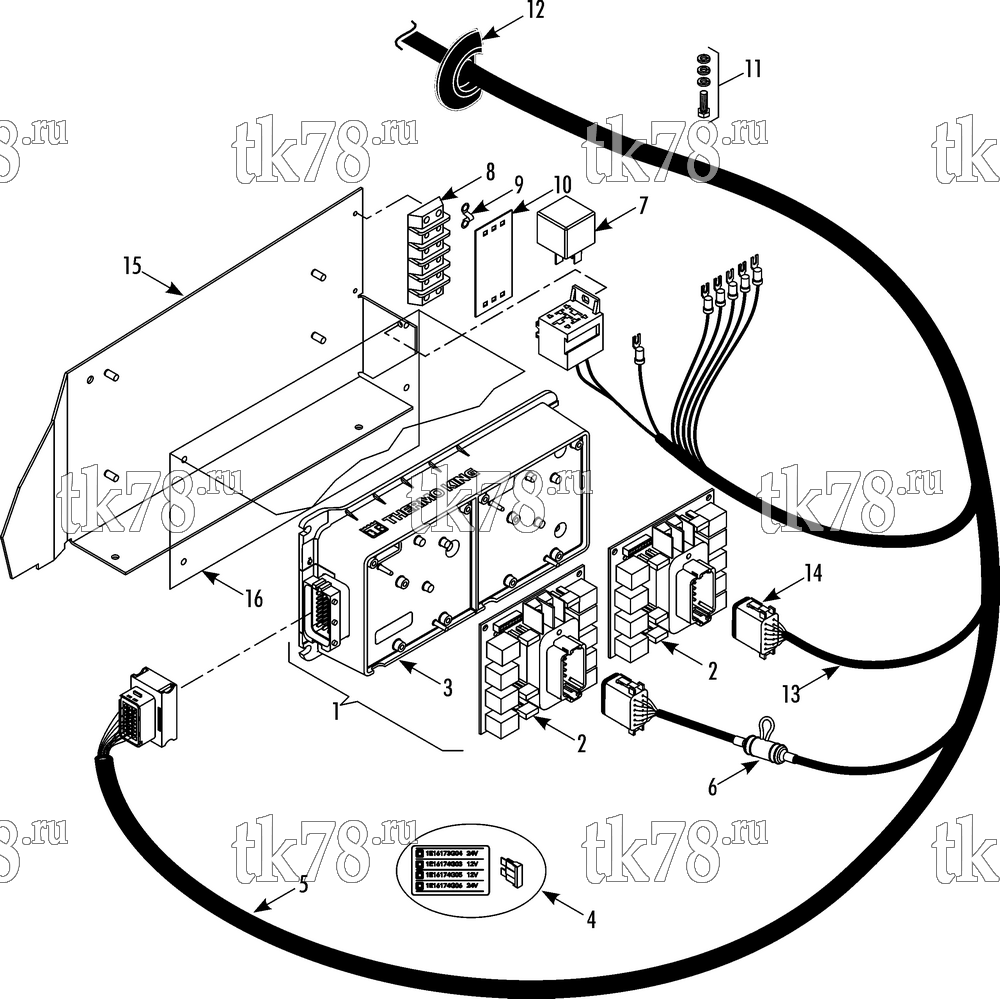

Установкa Thermo King схема CONTROL BOX (SPECTRUM 30 w/ DSR III) – 267F3
Обновление от: 8/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2476 | MODULE - control box (DSR III, 24V) | 1 | |
| 2 | 42-589 | BOARD - power | 2 | |
| 3 | 92-9931 | COVER | 1 | |
| 4 | 40-1182 | KIT - fuses | 1 | |
| 41-3080 | FUSE (12 & 24V units, 2 amp, gray) | 2 | ||
| 41-4554 | FUSE (12V unit, 15 amp, blue) | 4 | ||
| 41-4555 | FUSE (12V unit, 20 amp, yellow) | 2 | ||
| 41-4553 | FUSE ( 24V unit, 10 amp, red) | 6 | ||
| 5 | 42-961 | HARNESS - main (see 236F5) | 1 | |
| 6 | 42-962 | HOLDER - fuse | 1 | |
| 42-963 | FUSE - (10 amp) | 1 | ||
| 42-964 | FUSE - (16 amp) | 1 | ||
| 7 | 41-9313 | RELAY - battery (12V) | 1 | |
| 41-9314 | RELAY - battery (24V) | 1 | ||
| 8 | 44-4269 | BOARD - terminal (4, 30 amp) | 1 | |
| 55-9352 | SCREW - board | 2 | ||
| 9 | 44-2915 | STRIP - jumper | 3 | |
| 10 | 41-5783 | COVER - board | 1 | |
| 11 | 51-2010 | SCREW - ground | 1 | |
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7370 | LOCKWASHER (internal tooth) | 2 | ||
| 55-9826 | FLATWASHER | 1 | ||
| 55-7367 | NUT | 2 | ||
| 12 | 33-2656 | GROMMET - harness | 1 | |
| 13 | 42-1067 | HARNESS - multi temperature | 1 | |
| 14 | 44-9600 | PLUG (12-pin, w/ seal, see 112D9) | 1 | |
| 15 | 93-948 | PANEL - control box | 1 | |
| 51-2012 | NUT - panel | 4 | ||
| 16 | 92-9932 | GUARD - splash | 1 |
