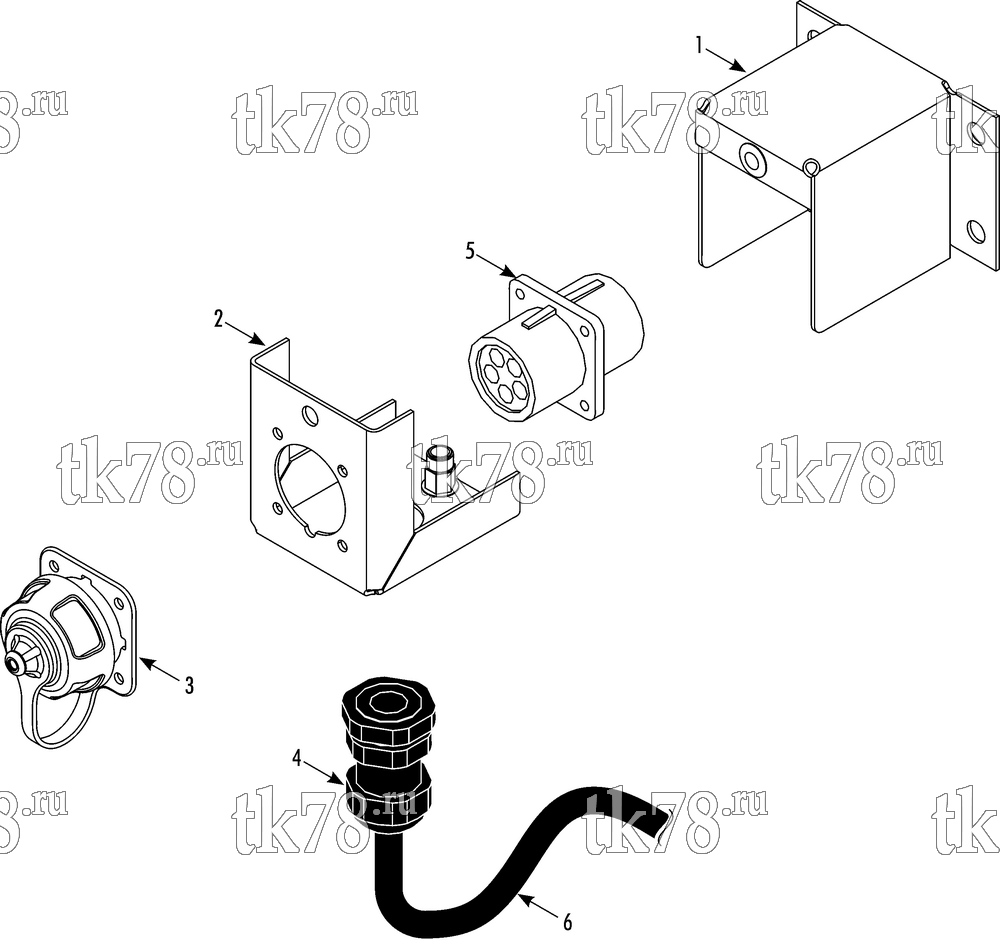

Установкa Thermo King схема DOWNLOAD BOX – 267A8
Обновление от: 2/20/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-2386 | REMOTE PORT - service watch | 1 | ||
| 1 | 92-7933 | BOX - download (top) | 1 | |
| 2 | 92-7934 | BOX - download (bottom) | 1 | |
| 55-7407 | SCREW - box | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 51-2130 | INSERT - threaded | 2 | ||
| 3 | 92-3067 | CAP - dust | 1 | |
| 55-3272 | RIVET - cap | 4 | ||
| 55-7830 | FLATWASHER | 4 | ||
| 4 | 55-6409 | GRIP - harness | 1 | |
| 5 | 41-2405 | RECEPTACLE - 5 pin | 1 | |
| 44-9602 | PIN - sealing | 1 | ||
| 6 | 41-9038 | HARNESS - download | 1 |
