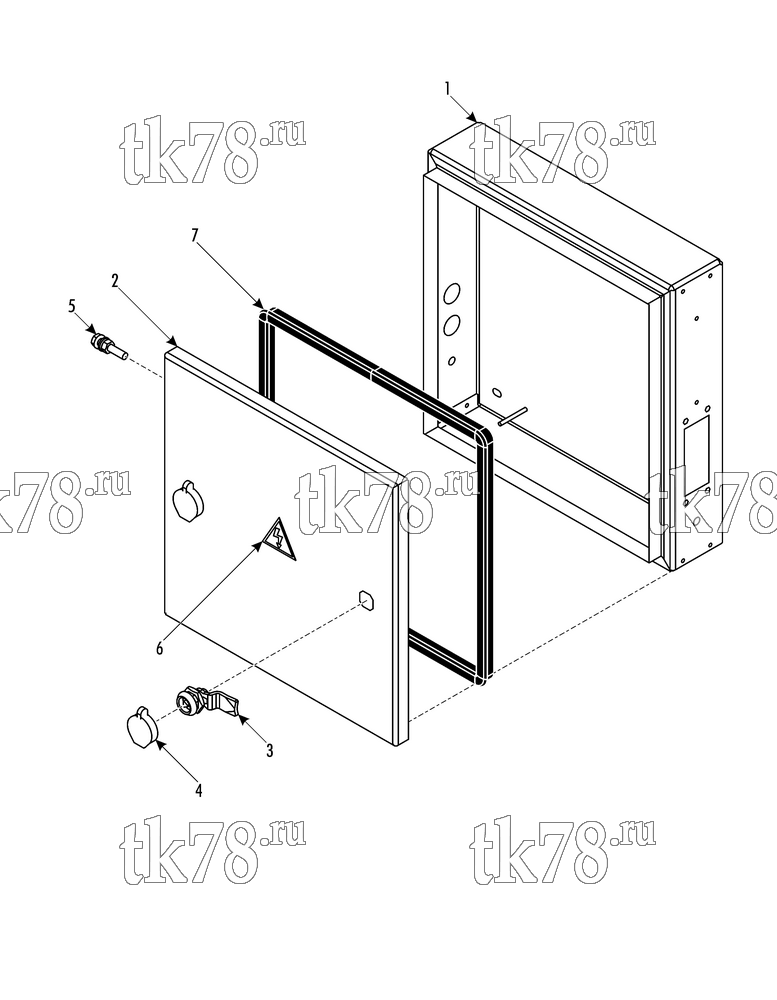

Установкa Thermo King схема CONTROLLER BOX PANELS – 266F1
Обновление от: 8/27/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-1288 | CONTROLLER BOX - sealed assembly | 1 | |
| 2 | 92-6964 | DOOR - electro box | 1 | |
| 3 | 92-5927 | LOCK | 2 | |
| 4 | 92-7253 | COVER - lock | 2 | |
| 5 | 55-8137 | SCREW - grounding | 1 | |
| 55-7085 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7825 | NUT | 1 | ||
| 6 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 7 | 92-146 | RUBBER - profile | 1 |
