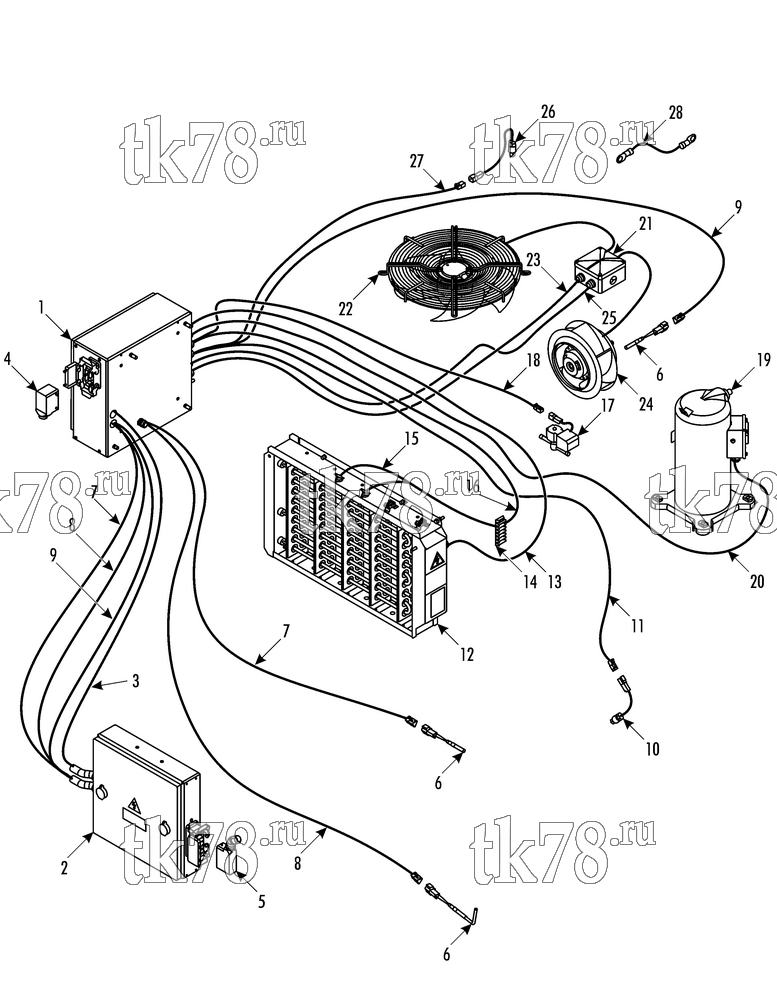

Установкa Thermo King схема ELECTRICAL COMPONENTS – 266E5
Обновление от: 8/30/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ELECTRO BOX (see 266E6) | 1 | |
| 2 | NSS | CONTROLLER BOX (see 266E0) | 1 | |
| 42-1284 | CABLE - CAN | 1 | ||
| 42-1285 | CABLE - communication | 1 | ||
| 3 | 42-1286 | HARNESS - electro box x controller box | 1 | |
| 4 | 40-1039 | CONNECTOR - power, assembly (see 266F4) | 1 | |
| 5 | 40-1040 | CONNECTOR - communications, assembly (see 266F4) | 1 | |
| 6 | 41-7513 | SENSOR - temperature | 3 | |
| 7 | 42-290 | CABLE - RAS | 1 | |
| 8 | 42-289 | CABLE - FAS | 1 | |
| 9 | 42-288 | CABLE - DAS | 1 | |
| 10 | 41-5899 | SWITCH - low pressure cutout (service set - connector incl.) | 1 | |
| 11 | 41-8043 | CABLE - low pressure cutout | 1 | |
| 12 | NSS | HEATER (see 266E4) | 1 | |
| 13 | 41-8045 | CABLE - power heater | 1 | |
| 14 | 44-5350 | BOARD - term | 1 | |
| 55-7664 | SCREW - board | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 51-1181 | NUT - captive, closed | 2 | ||
| 15 | 41-8040 | WIRES - high temperature | 1 | |
| 16 | 41-8041 | CABLE - heater temperature sensor | 1 | |
| 17 | NSS | VALVE - solenoid (see 227B3) | 1 | |
| 18 | 41-8042 | CABLE - solenoid | 1 | |
| 19 | NSS | COMPRESSOR (see 234B2) | 1 | |
| 20 | 41-8039 | CABLE - power compressor | 1 | |
| 21 | NSS | TERMINAL BOX BLOWER (see 227B8) | 1 | |
| 22 | NSS | FAN - axial (see 266E3) | 1 | |
| 23 | 41-8038 | CABLE - condenser fan power (CFM) | 1 | |
| 24 | NSS | BLOWER (see 227H8) | 1 | |
| 25 | 42-284 | CABLE - evaporator fan supply (EFM) | 1 | |
| 26 | 41-6318 | SWITCH - high pressure cutout (service set - connector incl.) | 1 | |
| 27 | 41-8044 | CABLE - high pressure cutout | 1 | |
| 28 | 42-291 | CABLE - grounding | 1 |
