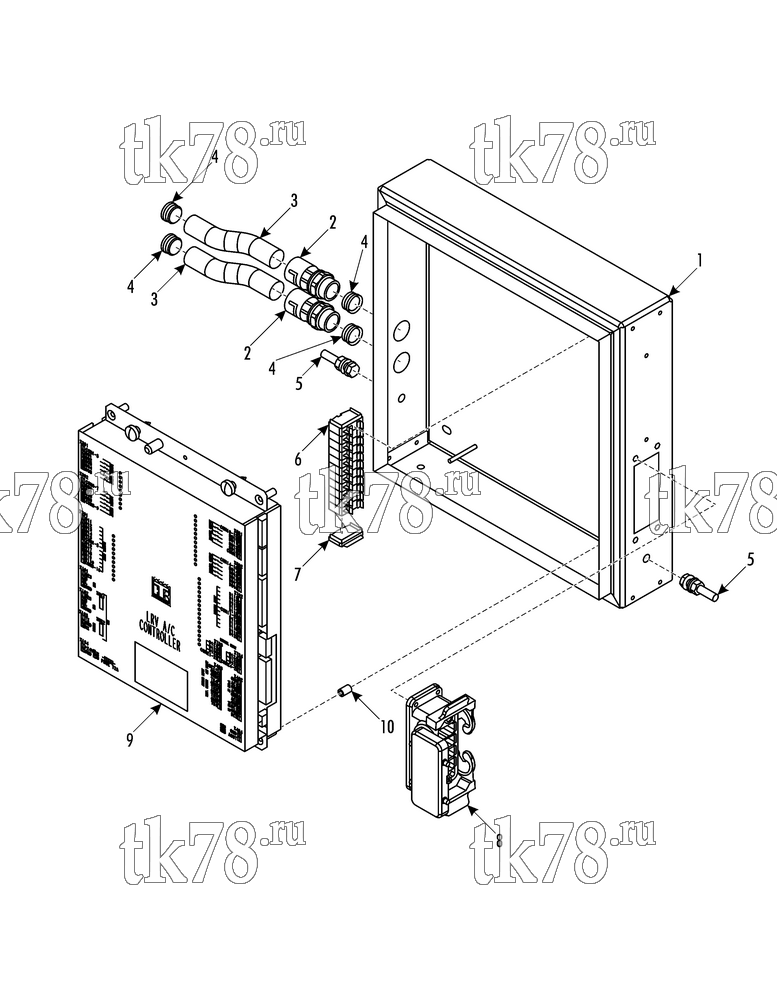

Установкa Thermo King схема CONTROLLER BOX – 266E0
Обновление от: 8/29/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER BOX PANELS (see 266F1) | 1 | |
| 55-7172 | SCREW - box to unit frame | 4 | ||
| 51-871 | WASHER - sealing | 4 | ||
| 55-9814 | NUT - captive, closed | 4 | ||
| 2 | 51-710 | BUSHING | 2 | |
| 55-9711 | LOCKNUT | 2 | ||
| 3 | 41-5620 | CONDUIT | A/R | |
| 4 | 41-7977 | INSERT - seal | 4 | |
| 5 | 55-8137 | SCREW - grounding | 2 | |
| 55-7085 | FLATWASHER | 4 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 6 | 41-3893 | TERMINAL - double | 11 | |
| 7 | 41-3894 | PLATE - end | 1 | |
| 8 | 42-1288 | CONNECTOR - communication, assembly (see 266F6) | 1 | |
| 41-5582 | HOUSING - connector | 1 | ||
| 92-3242 | CAP - connector | 1 | ||
| 41-5504 | FRAME - fixing | 1 | ||
| 41-7517 | INSERT - fixing | 2 | ||
| 41-5300 | COVER - connector, male | 4 | ||
| 55-7664 | SCREW - connector | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7866 | NUT - captive | 1 | ||
| 9 | 41-5421 | CONTROLLER | 1 | |
| 203-549 | BATTERY | 1 | ||
| 41-7246 | FUSE | 1 | ||
| 10 | 93-1287 | RING - distance | 4 | |
| 55-7698 | NUT | 4 | ||
| 55-7369 | LOCKWASHER | 4 |
