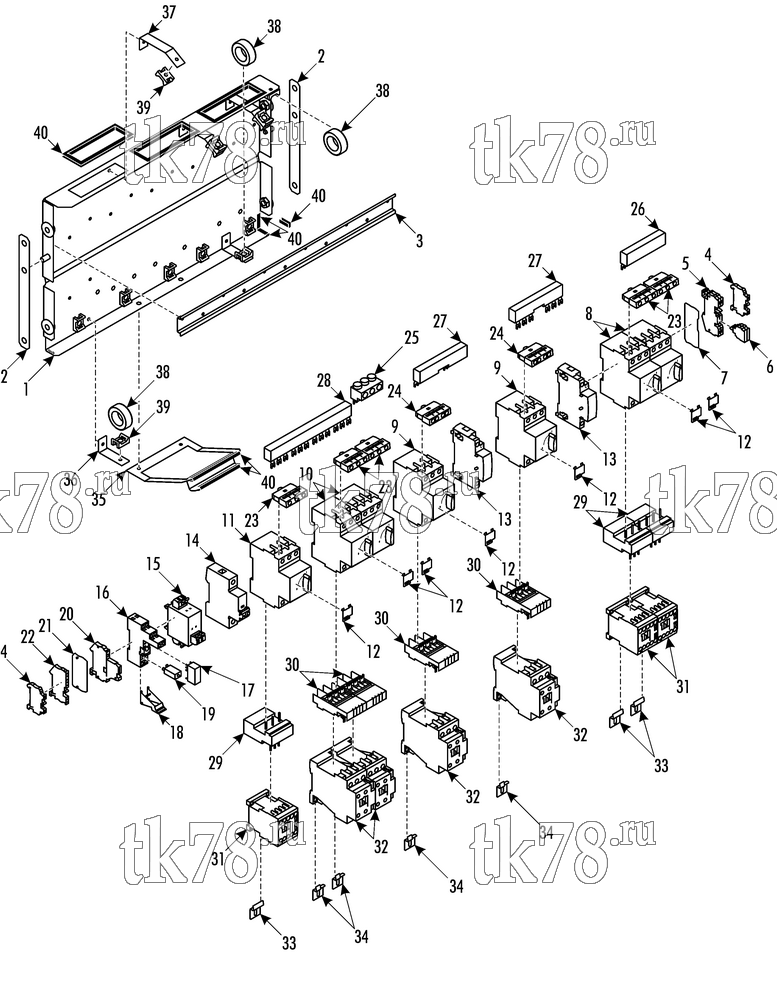

Установкa Thermo King схема SUBPANEL – 266C7
Обновление от: 5/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-1046 | SHEET - mounting | 1 | |
| 2 | 51-2142 | WASHER | 2 | |
| 55-6993 | SCREW - sheet | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 3 | 92-9205 | RAIL (DIN) | 1 | |
| 51-2030 | RIVET - rail | 11 | ||
| 4 | 41-8639 | CLAMP | 2 | |
| 5 | 41-8645 | CAGE SPRING - terminal block | 2 | |
| 6 | 41-8651 | ACCESSORIES - terminals | 2 | |
| 41-8873 | DIODE | 2 | ||
| 7 | 41-8649 | ENDPLATE | 1 | |
| 8 | 42-1093 | BREAKER - circuit, 3 pole (2.2-3.2 amp) | 2 | |
| 9 | 42-1129 | BREAKER - circuit, 3 pole (20-25 amp) | 2 | |
| 10 | 42-1130 | BREAKER - circuit, 3 pole (11-16 amp) | 2 | |
| 11 | 42-1131 | BREAKER - circuit, 3 pole (2.8-4.0 amp) | 1 | |
| 12 | 42-1095 | COVER - scale, sealable | 7 | |
| 41-9123 | SEAL | 7 | ||
| 41-9122 | WIRE - sealing | 7 | ||
| 13 | 42-1132 | RELAY - shunt-release | 2 | |
| 14 | 41-5602 | BREAKER - circuit (6 amp) | 1 | |
| 15 | 42-138 | ARRESTER - overvoltage | 1 | |
| 16 | 41-6367 | SOCKET - relay | 1 | |
| 17 | 41-5667 | RELAY | 1 | |
| 18 | 41-6368 | LOCK - relay socket | 1 | |
| 19 | 41-6369 | DIODE - suppressor | 1 | |
| 20 | 41-8667 | TERMINAL - fuse | 1 | |
| 41-4180 | FUSE (1 amp, 250 V) | 1 | ||
| 21 | 42-139 | ENDPLATE | 1 | |
| 22 | 41-8640 | CAGE SPRING - terminal block | 1 | |
| 23 | 42-1094 | BLOCK - contact, auxiliary | 5 | |
| 24 | 42-1133 | BLOCK - contact, auxiliary | 2 | |
| 25 | 42-1134 | TERMINAL - input | 1 | |
| 26 | 41-4726 | BUSBAR | 1 | |
| 27 | 41-4684 | BUSBAR | 2 | |
| 28 | 41-3801 | BUSBAR | 1 | |
| 29 | 41-2944 | ELEMENT - coupling | 3 | |
| 30 | 42-1135 | ELEMENT - coupling | 4 | |
| 31 | 42-1136 | CONTACTOR (3.0 kW) | 3 | |
| 32 | 42-1137 | CONTACTOR (7.5 kW) | 4 | |
| 33 | 92-3615 | BRACKET - contactor | 3 | |
| 34 | 92-3616 | BRACKET - contactor | 4 | |
| 55-7663 | SCREW - bracket | 7 | ||
| 51-1451 | WASHER - spring | 7 | ||
| 55-7866 | NUT - captive | 7 | ||
| 35 | 92-9219 | HANDRAIL | 1 | |
| 51-845 | SCREW - handrail | 2 | ||
| 51-1451 | WASHER - spring | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 36 | 92-7518 | BRACKET | 2 | |
| 37 | 92-9206 | BRACKET | 3 | |
| 51-2030 | RIVET - rail | 5 | ||
| 38 | 42-183 | TRANSFORMER - current | 3 | |
| 39 | 99-3281 | MOUNT - bandwrap | 13 | |
| 51-2030 | RIVET - rail | 13 | ||
| 55-2330 | BANDWRAP | 13 | ||
| 40 | 92-3279 | RUBBER - profile | 2 |
