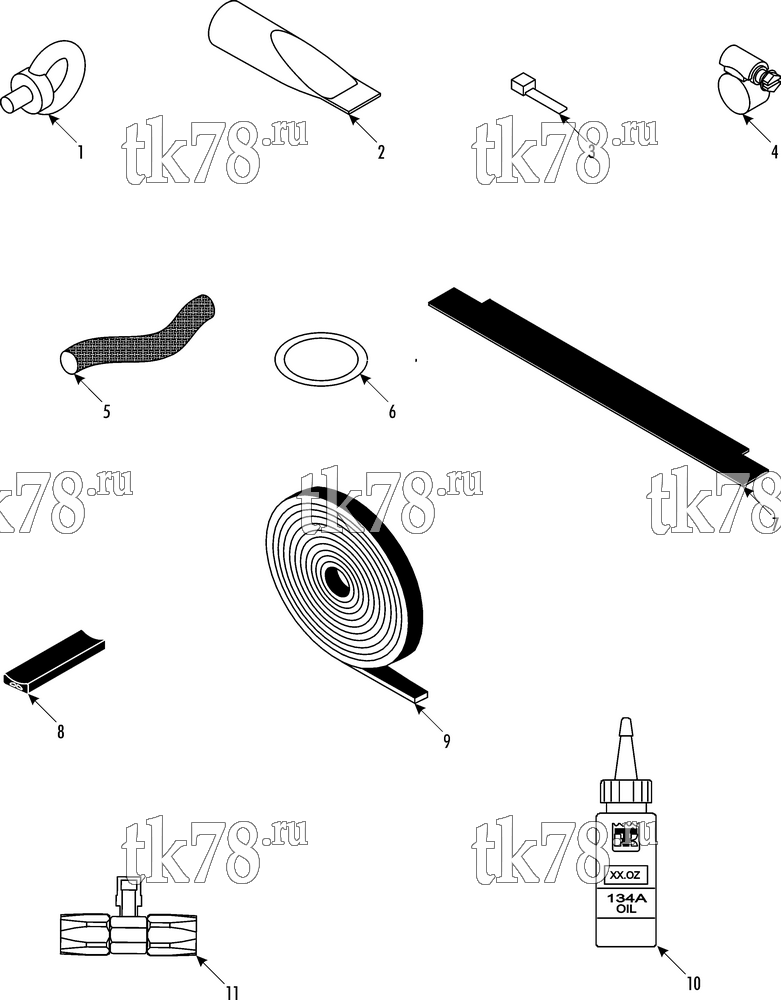

Установкa Thermo King схема INSTALLATION COMPONENTS – 265D8
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 51-0916 | EYE - lifting | 4 | |
| 2 | 66-1273 | VALVE - hose check | 4 | |
| 3 | 55-2330 | BANDWRAP | 4 | |
| 4 | 55-6726 | CLAMP | 4 | |
| 5 | 91-9006 | HOSE (16 mm) | A/R | |
| 6 | 33-3191 | GASKET - flat | 2 | |
| 7 | 92-4040 | INSULATION | 2 | |
| 8 | 92-7771 | GASKET | A/R | |
| 9 | 203-0391 | TAPE - sealer | A/R | |
| 10 | 203-0505 | OIL - compressor (2 oz bottle) | 1 | |
| 11 | 61-3313 | T - FITTING (#16 hose) | 1 |
