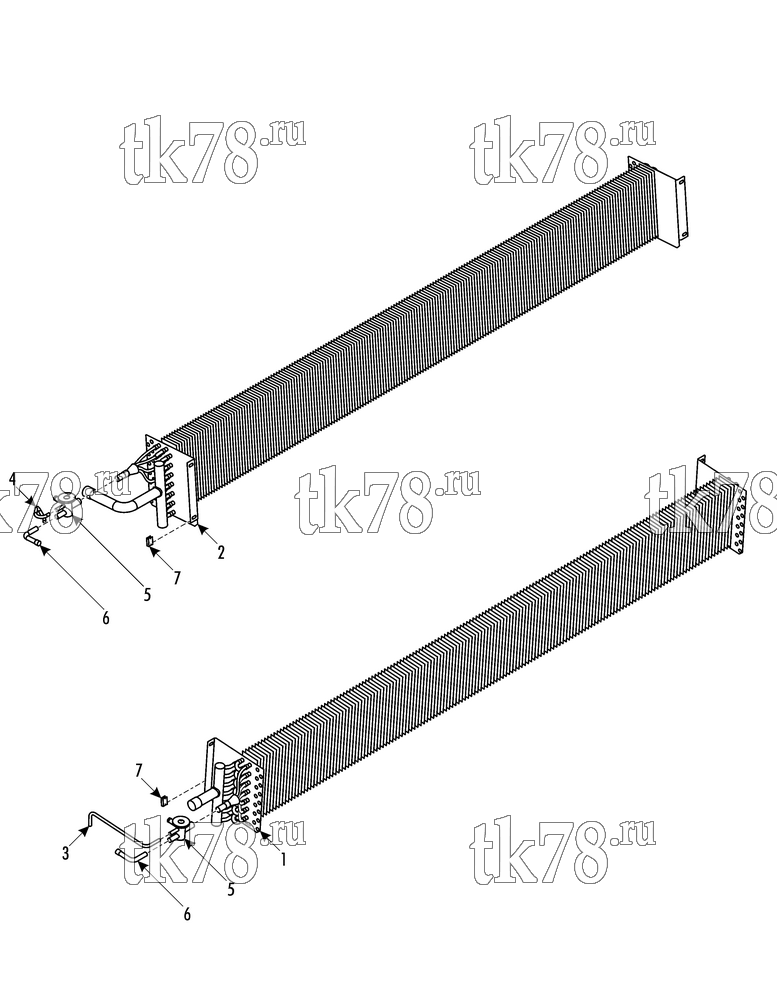

Установкa Thermo King схема EVAPORATOR COIL – 265D2
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2624 | COIL - evaporator, #1 | 1 | |
| 2 | 67-2829 | COIL - evaporator, #2 | 1 | |
| 3 | 61-5627 | TUBE - evaporator, #1 | 1 | |
| 4 | 61-6460 | TUBE - evaporator, #2 | 1 | |
| 5 | 66-9900 | VALVE - thermostatic expansion, R134a | 2 | |
| 6 | 61-5629 | TUBE | 2 | |
| 55-7340 | SCREW - coil | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-8375 | NUT - captive | 4 | ||
| 7 | 51-2242 | CLAMP | 4 |
