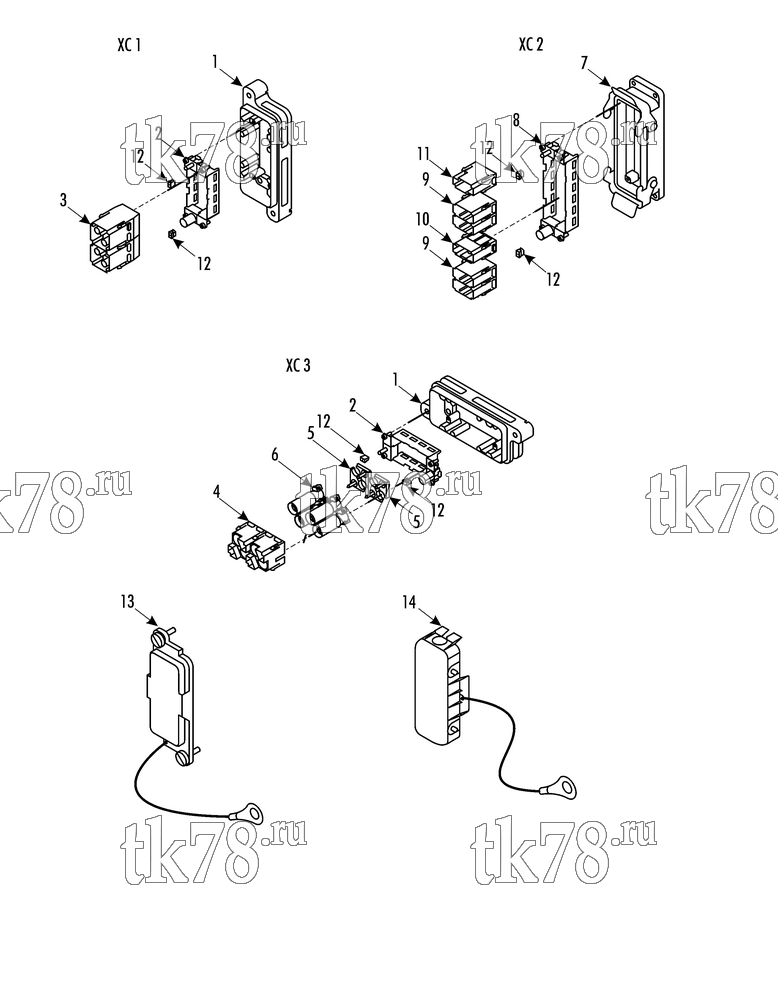

Установкa Thermo King схема MAIN UNIT CONNECTORS – 265A8
Обновление от: 1/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8669 | HOUSING - connector | 2 | |
| 55-9854 | SCREW - connector | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-9837 | NUT - captive | 8 | ||
| 2 | 41-5504 | FRAME - fixing | 2 | |
| 3 | 41-9107 | COVER - connector, male | 2 | |
| 4 | 41-5297 | COVER - connector, male | 2 | |
| 5 | 41-5298 | BRACKET | 2 | |
| 6 | 41-7539 | CONTACT - male | 4 | |
| 7 | 41-8671 | HOOD - connector, male | 1 | |
| 55-7696 | SCREW - connector | 4 | ||
| 51-1451 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 51-1181 | NUT - captive, closed | 4 | ||
| 8 | 41-6009 | FRAME - fixing | 1 | |
| 9 | 41-5300 | COVER - connector, male | 4 | |
| 10 | 41-7147 | COVER - connector, male | 1 | |
| 11 | 41-7516 | COVER - connector, male | 1 | |
| 12 | 41-7517 | INSERT - fixing | 6 | |
| 13 | 42-181 | CAP - connector (w screw locking system) | 2 | |
| 14 | 42-182 | CAP - connector | 1 |
