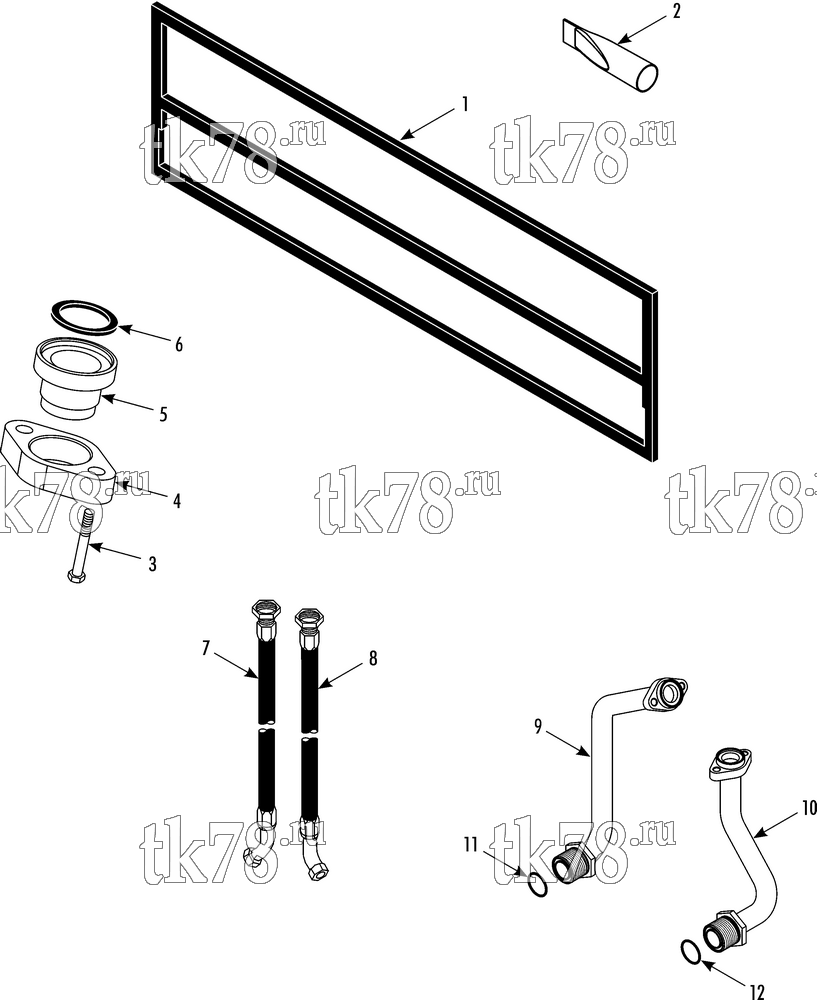

Установкa Thermo King схема INSTALLATION COMPONENTS – 264F3
Обновление от: 12/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-4627 | GASKET - evaporator to roof top | 2 | |
| 2 | 66-1273 | VALVE - check | 6 | |
| 3 | 55-9822 | SCREW - flange | 4 | |
| 4 | 55-9371 | FLANGE (2 bolt, threaded) | 1 | |
| 51-2063 | FLANGE (2 bolt, non threaded) | 1 | ||
| 5 | 51-2064 | ADAPTER (1-3/8 tube) | 1 | |
| 55-9184 | ADAPTER (1-1/8 tube) | 1 | ||
| 6 | 33-3191 | GASKET - flat | 2 | |
| 7 | 66-9478 | HOSE - suction (#20, 29.5 in long) | 1 | |
| 8 | 61-4452 | HOSE - discharge (#24, 24.5 in long) | 1 | |
| 9 | 61-6357 | TUBE - suction | 1 | |
| 10 | 61-6358 | TUBE - discharge | 1 | |
| 11 | 33-920 | O-RING (1-1/2 id) | 1 | |
| 12 | 33-1777 | O-RING (1-3/16 id) | 1 |
