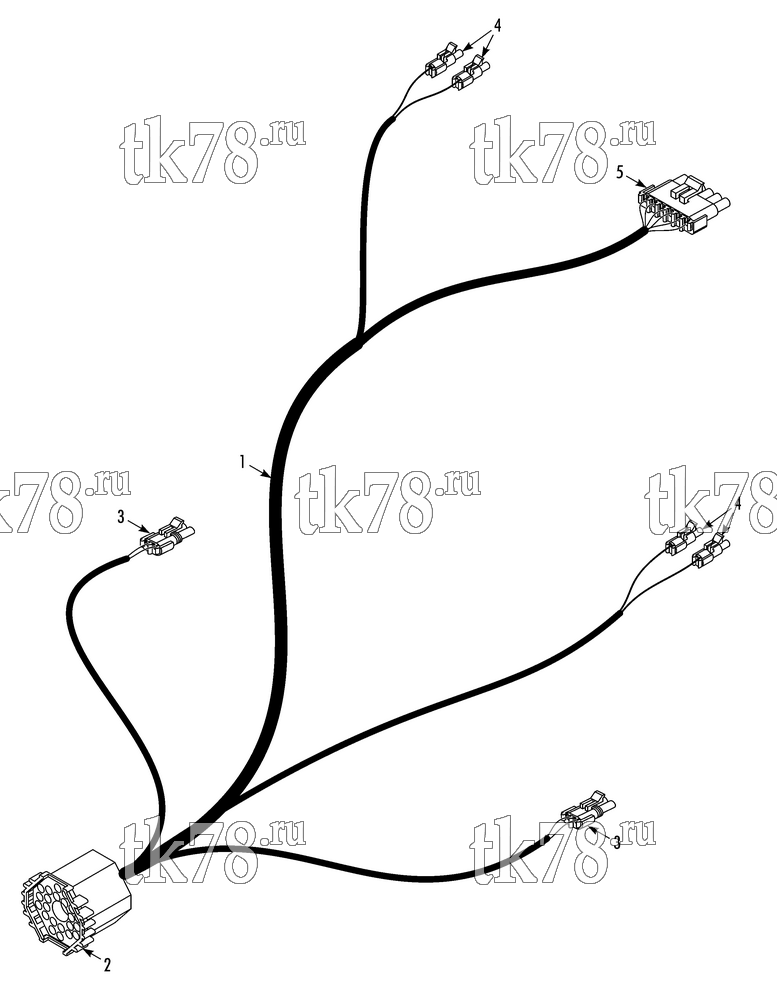

Установкa Thermo King схема HARNESS ADAPTER – 264F1
Обновление от: 12/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-890 | HARNESS - adapter | 1 | |
| 2 | 44-7884 | CONNECTOR - shroud (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 2 | ||
| 44-5883 | TERMINAL - male (20-18 ga) | 14 | ||
| 44-8681 | SEAL - cable (red) | 14 | ||
| 44-7812 | PLUG - cavity (green) | 8 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 3 | ||
| 44-5839 | TERMINAL - female (16-14 ga) | 1 | ||
| 44-8681 | SEAL - cable (red) | 3 | ||
| 44-6324 | SEAL - cable (blue) | 1 | ||
| 4 | 44-7327 | CONNECTOR - tower (1-pin) | 4 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray) | 1 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 44-6324 | SEAL - cable (blue) | 1 | ||
| 5 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 4 | ||
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 4 | ||
| 44-5837 | SEAL - cable (gray) | 2 |
