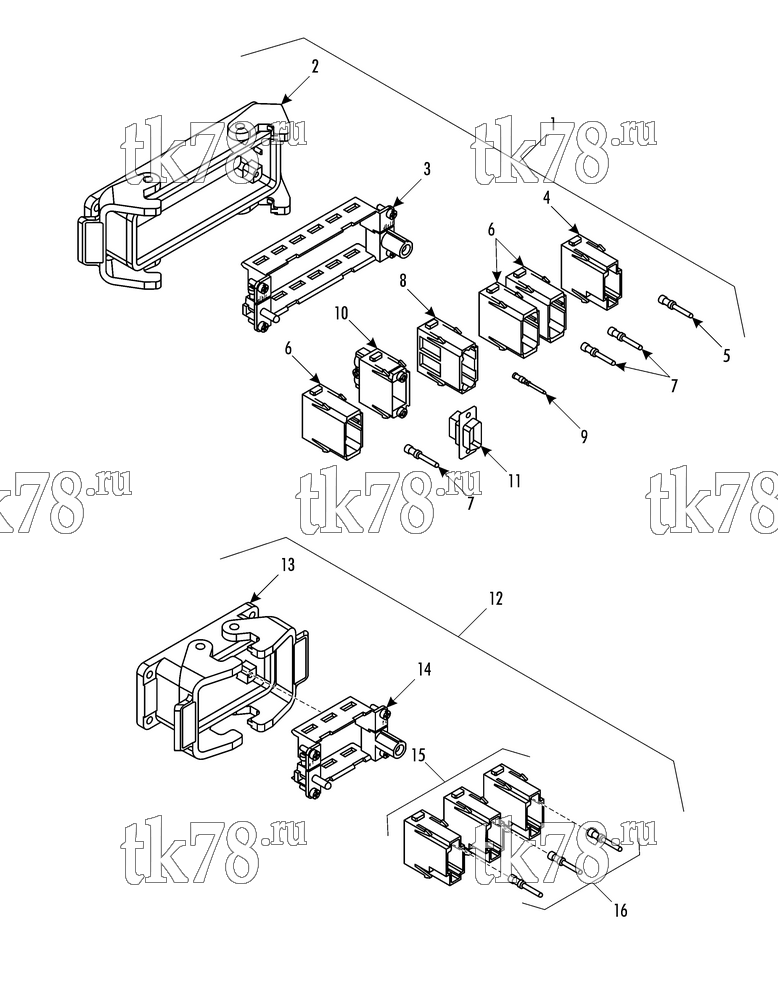

Установкa Thermo King схема MAIN UNIT CONNECTORS – 263F7
Обновление от: 10/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-763 | CONNECTOR - low voltage | 1 | |
| 2 | 41-6497 | HOOD - connector, male | 1 | |
| 55-7696 | SCREW - hood | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 51-1824 | NUT - captive | 4 | ||
| 3 | 41-6009 | FRAME - fixing | 1 | |
| 4 | 41-7516 | COVER - connector, male | 1 | |
| 5 | 42-603 | PIN - male | 6 | |
| 6 | 41-5300 | COVER - connector, male | 3 | |
| 7 | 41-9918 | PIN - male | 24 | |
| 8 | 41-7147 | COVER - connector, male | 1 | |
| 9 | 41-9691 | PIN - male | 12 | |
| 10 | 42-226 | MODULE | 1 | |
| 11 | 42-227 | CONNECTOR - male (D SUB9) | 1 | |
| 12 | 42-762 | CONNECTOR - high voltage | 1 | |
| 13 | 42-455 | HOOD - connector | 1 | |
| 55-7696 | SCREW - hood | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 51-1824 | NUT - captive | 4 | ||
| 14 | 42-456 | FRAME - fixing | 1 | |
| 15 | 41-7516 | COVER - connector, male | 3 | |
| 16 | 42-603 | PIN - male | 18 |
