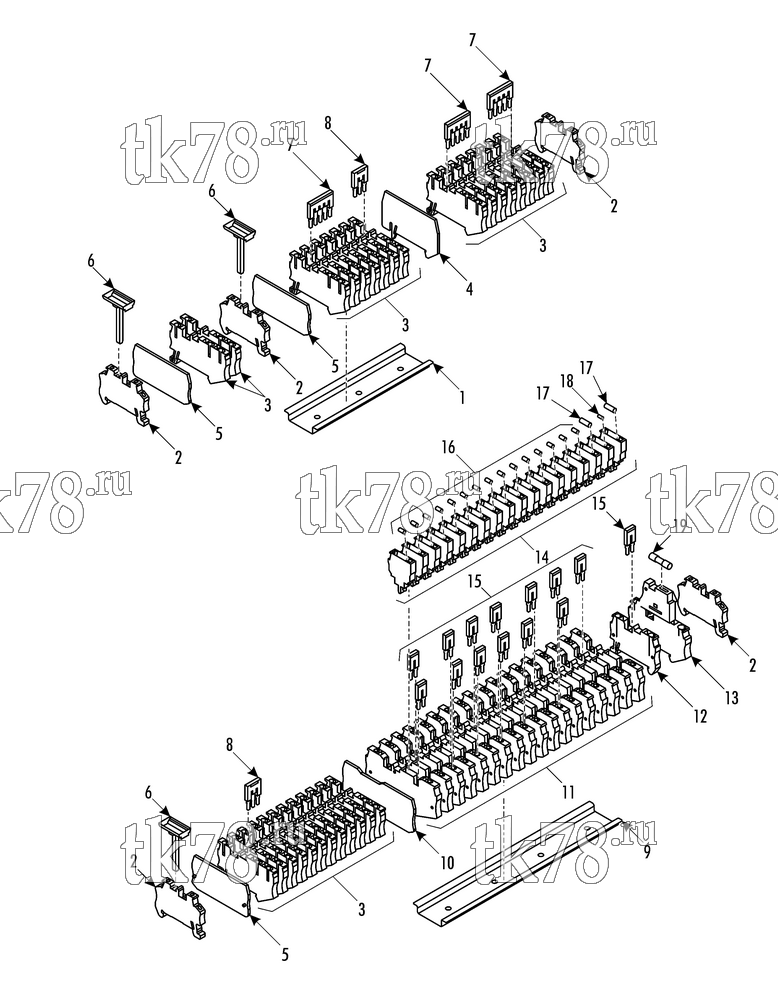

Установкa Thermo King схема RAIL (DIN) XPI and XI – 263E1
Обновление от: 10/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-519 | RAIL (DIN) | 1 | |
| 51-2030 | RIVET - rail | 3 | ||
| 2 | 41-8639 | CLAMP | 5 | |
| 3 | 41-8640 | SPRING | 29 | |
| 4 | 41-8647 | PLATE - separation | 1 | |
| 5 | 42-139 | ENDPLATE | 3 | |
| 6 | 41-8650 | MARKER - terminal strip | 3 | |
| 7 | 41-8655 | BRIDGE, plug in | 3 | |
| 8 | 41-8654 | BRIDGE, plug in | 2 | |
| 9 | 93-520 | RAIL (DIN) | 1 | |
| 51-2030 | RIVET - rail | 4 | ||
| 10 | 41-8649 | ENDPLATE | 1 | |
| 11 | 41-8645 | SPRING | 18 | |
| 12 | 41-8644 | SPRING | 1 | |
| 13 | 41-8667 | TERMINAL - fuse | 1 | |
| 14 | 41-8651 | ACCESSORIES - terminals | 18 | |
| 15 | 41-8652 | BRIDGE, plug in | 14 | |
| 16 | 41-8873 | DIODE | 15 | |
| 17 | 44-3647 | RESISTOR - carbon | 2 | |
| 18 | 41-8137 | DIODE | 1 | |
| 19 | 41-4180 | FUSE (1 amp, 250 V) | 1 |
