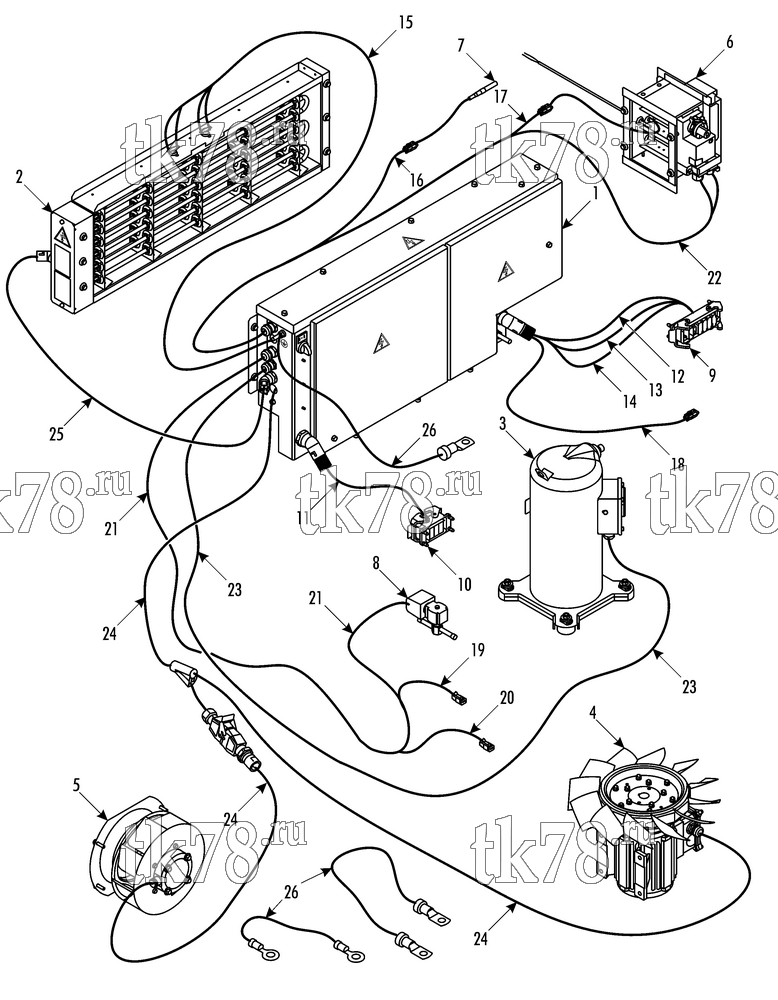

Установкa Thermo King схема ELECTRICAL COMPONENTS – 263D5
Обновление от: 10/26/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL BOX (see 263D9) | 1 | |
| 2 | NSS | HEATER (see 263D8) | 1 | |
| 3 | NSS | COMPRESSOR - assy (see 263D4) | 1 | |
| 4 | NSS | FAN (see 263D6) | 1 | |
| 5 | NSS | BLOWER (see 263D7) | 1 | |
| 6 | NSS | FRESH AIR DAMPER (see 263C9) | 1 | |
| 7 | 40-974 | SENSOR - temperature (connector incl.) | 3 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 8 | 61-382 | VALVE - solenoid (see 263D1) | 1 | |
| 9 | 42-763 | CONNECTOR - low voltage (see 263F7) | 1 | |
| 10 | 42-762 | CONNECTOR - high voltage (see 263F7) | 1 | |
| 11 | 42-824 | CABLE - W1 | 1 | |
| 12 | 42-813 | CABLE - WS1 RS232 | 1 | |
| 13 | 42-846 | CABLE - WS2 PT1000 | 1 | |
| 14 | 42-816 | CABLE - WS3 | 1 | |
| 15 | 42-827 | CABLE - WS4 | 1 | |
| 16 | 42-818 | CABLE - temperature sensor (DAS) | 1 | |
| 17 | 42-819 | CABLE - temperature sensor (FAS) | 1 | |
| 18 | 42-817 | CABLE - temperature sensor (RAS) | 1 | |
| 19 | 42-820 | CABLE - LPCO | 1 | |
| 20 | 42-821 | CABLE - HPCO | 1 | |
| 21 | 42-814 | CABLE - WS10 | 1 | |
| 22 | 42-815 | CABLE - WS11 | 1 | |
| 23 | 42-812 | CABLE - W10 | 1 | |
| 24 | 42-825 | CABLE - W20/W30 | 1 | |
| 25 | 42-826 | CABLE - W40 | 1 | |
| 26 | 42-848 | WIRES - grounding | 1 |
