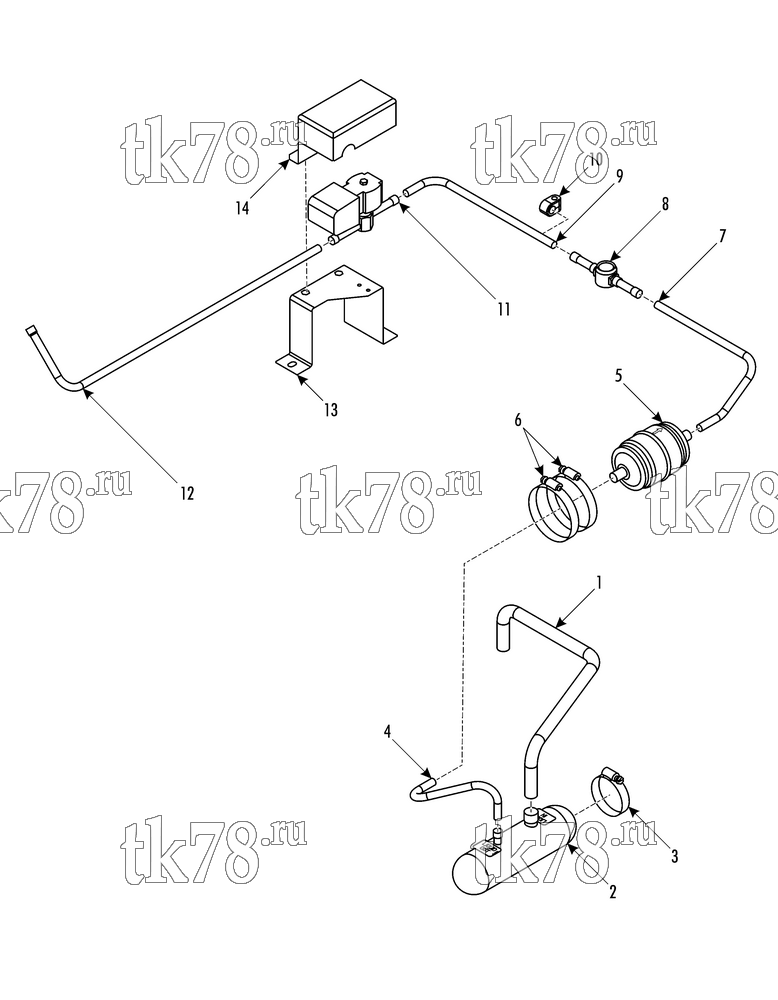

Установкa Thermo King схема LIQUID LINE – 263D1
Обновление от: 10/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6319 | TUBE | 1 | |
| 2 | 67-2358 | TANK - receiver | 1 | |
| 3 | 55-4979 | CLAMP | 1 | |
| 4 | 61-6320 | TUBE | 1 | |
| 5 | 61-381 | FILTER - drier | 1 | |
| 6 | 55-2688 | CLAMP - filter | 2 | |
| 7 | 61-6321 | TUBE | 1 | |
| 8 | 66-7682 | INDICATOR - liquid (sight glass) | 1 | |
| 9 | 61-6322 | TUBE | 1 | |
| 10 | 55-6388 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 51-167 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 11 | 61-382 | VALVE - solenoid | 1 | |
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 12 | 61-6323 | TUBE | 1 | |
| 13 | 93-499 | BRACKET - solenoid | 1 | |
| 55-6994 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 14 | 93-501 | COVER - solenoid | 1 | |
| 55-6994 | SCREW - cover | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 |
