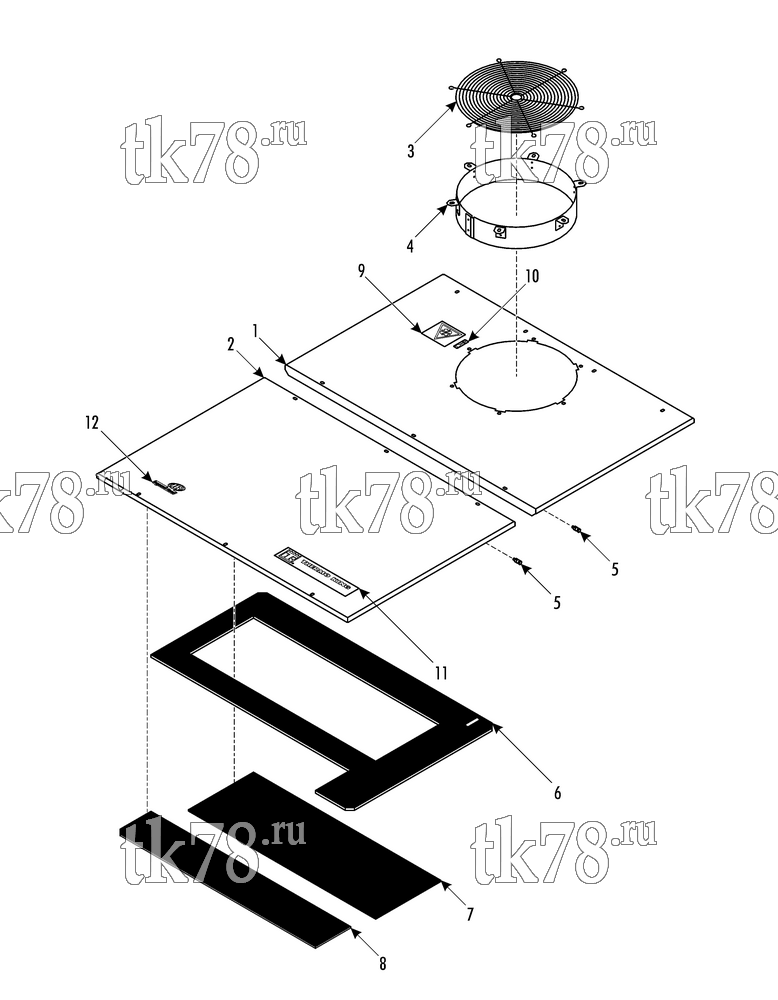

Установкa Thermo King схема COVERS – 263C7
Обновление от: 10/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9162 | COVER - condenser | 1 | |
| 2 | 98-9163 | COVER - evaporator | 1 | |
| 55-6994 | SCREW - cover | 13 | ||
| 55-7170 | LOCKWASHER | 13 | ||
| 51-167 | FLATWASHER | 13 | ||
| 55-7373 | NUT - captive | 13 | ||
| 3 | 93-494 | GRILLE - fan | 1 | |
| 55-7035 | SCREW - grille | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 51-167 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 4 | 93-493 | DIFUSOR - assy | 1 | |
| 5 | 55-7035 | SCREW - ground | 2 | |
| 55-6995 | FLATWASHER | 4 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 51-1820 | NUT (jam) | 2 | ||
| 55-8224 | NUT | 2 | ||
| 6 | 93-495 | INSULATION | 1 | |
| 7 | 93-496 | INSULATION | 1 | |
| 8 | 93-497 | INSULATION | 1 | |
| 9 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 10 | 99-4931 | NAMEPLATE - arrow | 1 | |
| 11 | 91-7551 | NAMEPLATE - TK Logo | 1 | |
| 12 | 92-1307 | NAMEPLATE - IR (black letters) | 1 |
