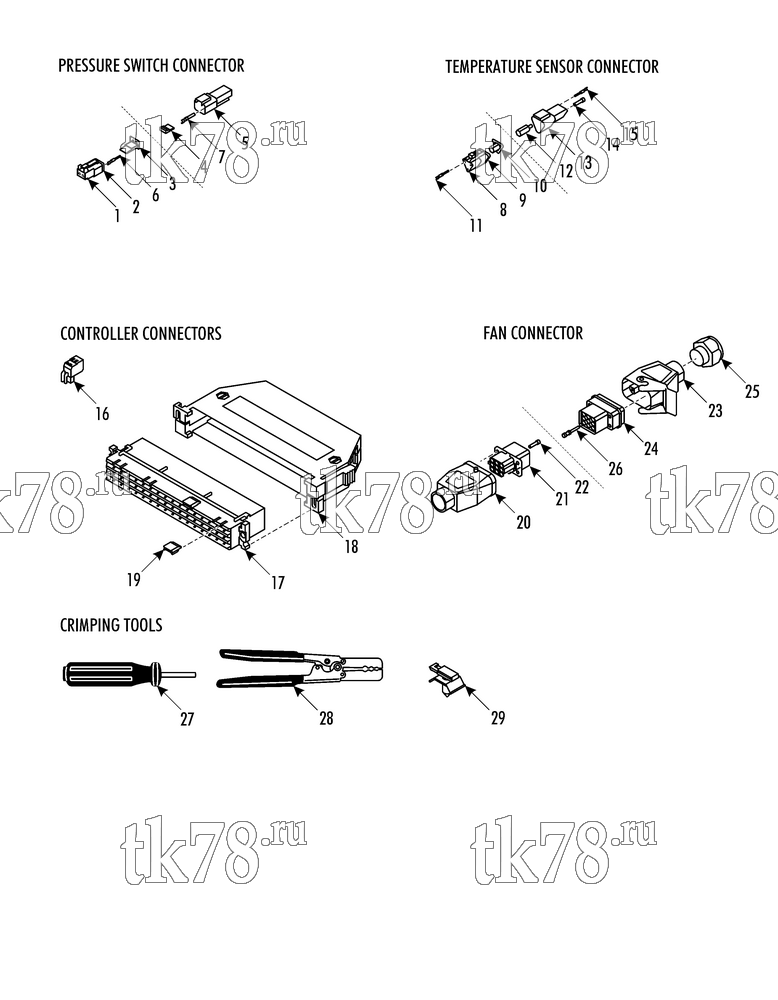

Установкa Thermo King схема CONNECTORS – 263A2
Обновление от: 12/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9585 | PLUG (2 pin) | 1 | |
| 2 | 33-2392 | SEAL | 1 | |
| 3 | 44-9586 | WEDGE | 1 | |
| 4 | 44-9590 | WEDGE | 1 | |
| 5 | 44-9589 | RECEPTACLE (2 pin) | 1 | |
| 6 | 44-9593 | SOCKET - 14-16GA | 2 | |
| 7 | 44-9597 | PIN - 14-16GA | 2 | |
| 8 | 44-9631 | PLUG (3 pin) | 1 | |
| 9 | 33-2393 | SEAL | 1 | |
| 10 | 44-9536 | WEDGE | 1 | |
| 11 | 44-9593 | SOCKET - 14-16GA | 2 | |
| 12 | 44-9545 | WEDGE | 1 | |
| 13 | 44-9544 | RECEPTACLE (3 pin) | 1 | |
| 14 | 44-9602 | PIN - sealing plastic | 1 | |
| 15 | 41-8832 | PIN - gold 18GA | 2 | |
| 16 | 41-3928 | CONNECTOR | 1 | |
| 17 | 42-504 | CONNECTOR | 1 | |
| 18 | 42-503 | HOUSING - side entry | 1 | |
| 51-2237 | SCREW - housing | 2 | ||
| 19 | 42-505 | PIN - coding | 2 | |
| 20 | 41-8875 | HOUSING - connector | 1 | |
| 21 | 41-8876 | INSERT - contact, female | 1 | |
| 22 | 41-5552 | PIN - female | 9 | |
| 23 | 41-9661 | HOUSING - connector | 1 | |
| 24 | 41-9662 | INSERT - contact, male | 1 | |
| 25 | 41-8877 | PROTECTION - cable | 1 | |
| 26 | 41-5551 | PIN - male | 9 | |
| 27 | 204-623 | TOOL - pin removal | 1 | |
| 28 | 204-624 | TOOL - terminal crimper | 1 | |
| 29 | 55-9704 | CLIP - self-locking | A/R |
