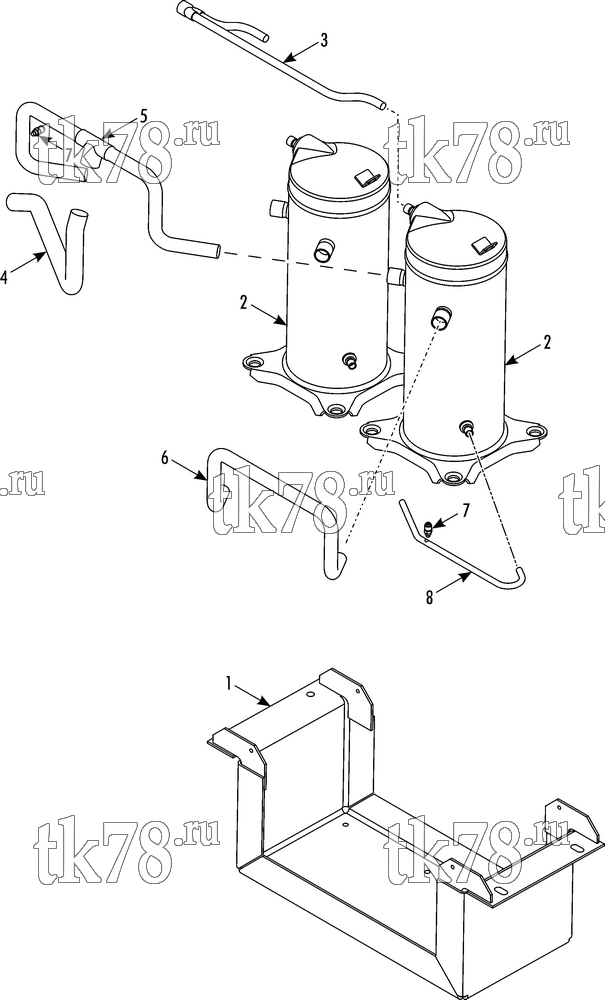

Установкa Thermo King схема COMPRESSOR REFRIGERATION – 262H7
Обновление от: 10/25/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-374 | BRACKET - compressor | 1 | |
| 55-2683 | SCREW - mount | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 2 | 102-992 | COMPRESSOR - scroll (see 262H8) | 2 | |
| 3 | 61-6295 | TUBE - compressor discharge | 1 | |
| 4 | 61-6296 | TUBE - suction, compressor to evap | 1 | |
| 5 | 61-6297 | TUBE - compressor to tee (suction) | 1 | |
| 6 | 61-6298 | TUBE - gas equalization | 1 | |
| 7 | 66-9842 | VALVE | 2 | |
| 8 | 61-6299 | TUBE - oil equalizer | 1 |
