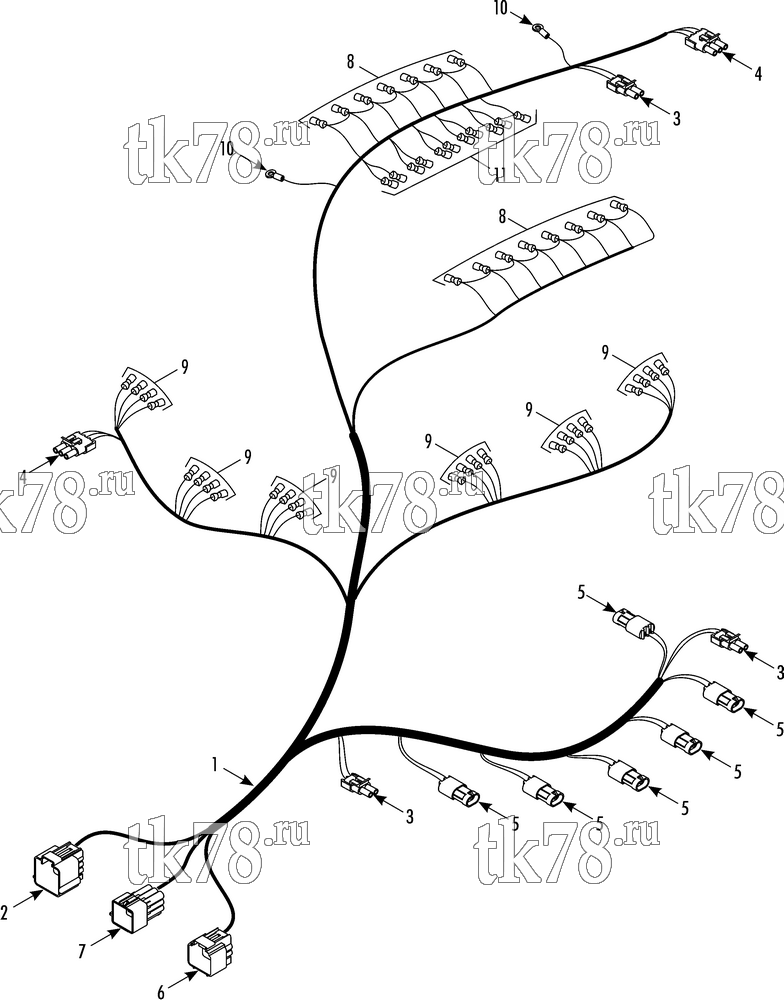

Установкa Thermo King схема HARNESS MAIN (703097 & 703197) – 262F1
Обновление от: 8/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-731 | HARNESS - main | 1 | |
| 2 | 41-8510 | CONNECTOR (9-pin) | 1 | |
| 42-663 | CONNECTOR - strain relief | 1 | ||
| 41-8512 | TERMINAL - female (18 awg) | A/R | ||
| 41-8514 | SEAL - black | A/R | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5884 | TERMINAL - female (20-18 ga) | A/R | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | A/R | ||
| 4 | 44-6959 | CONNECTOR - tower (3-pin) | 2 | |
| 44-5839 | TERMINAL - female (16-14 ga) | A/R | ||
| 44-5884 | TERMINAL - female (20-18 ga) | A/R | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | A/R | ||
| 5 | 44-5835 | CONNECTOR - shroud (2-pin) | 6 | |
| 44-5836 | TERMINAL - male (16-14 ga) | A/R | ||
| 44-5883 | TERMINAL - male (20-18 ga) | A/R | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | A/R | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | A/R | ||
| 6 | 41-8509 | CONNECTOR (9-pin) | 1 | |
| 42-664 | CONNECTOR - strain relief | 1 | ||
| 41-8513 | TERMINAL - male (18 awg) | A/R | ||
| 41-8514 | SEAL - black | A/R | ||
| 7 | 41-8511 | CONNECTOR (6-pin) | 1 | |
| 42-665 | CONNECTOR - strain relief | 1 | ||
| 41-8512 | TERMINAL - female (18 awg) | A/R | ||
| 41-8514 | SEAL - black | A/R | ||
| 8 | 44-5066 | TERMINAL - fingrip (18-14 ga) | A/R | |
| 55-7702 | TERMINAL - fingrip (16-18 ga) | A/R | ||
| 9 | 41-4850 | TERMINAL - fingrip (.25, blue) | A/R | |
| 10 | 44-9995 | TERMINAL - ring (5/16 yellow, 12-10 ga) | A/R | |
| 44-5089 | TERMINAL - ring (3/8 yellow, 10-12 ga) | A/R | ||
| 42-662 | TERMINAL - ring (5/16 blue, 6 ga) | A/R | ||
| 11 | 42-666 | TERMINAL - fuse | A/R |
