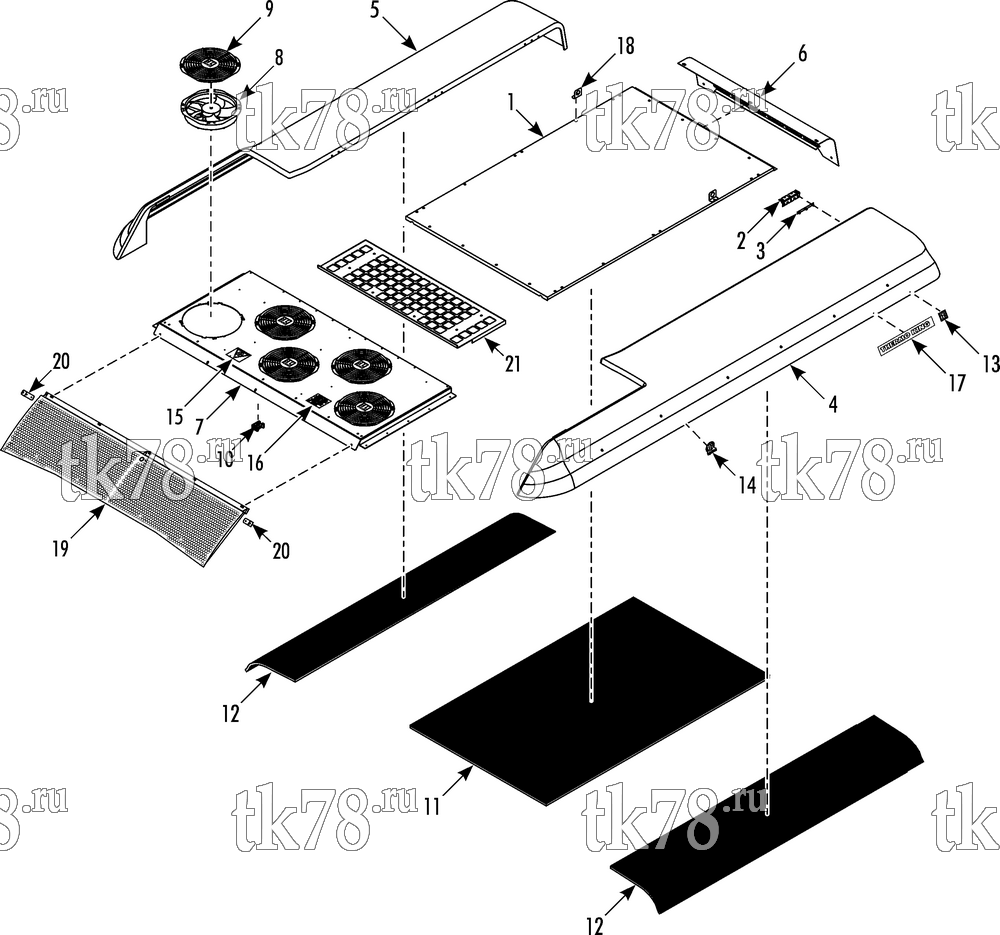

Установкa Thermo King схема COVERS – 262E8
Обновление от: 2/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9075 | COVER - evaporator | 1 | |
| 55-7035 | SCREW - cover | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 51-871 | WASHER - sealing | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 2 | 91-7098 | HINGE - cover | 6 | |
| 55-7036 | SCREW - hinge | 30 | ||
| 55-7404 | LOCKWASHER | 30 | ||
| 55-8375 | NUT - captive | 12 | ||
| 3 | 92-4019 | STRIP - nut | 6 | |
| 4 | 98-9101 | COVER - side | 1 | |
| 93-809 | COVER - side (5M) | 1 | ||
| 93-802 | COVER - side (7.5M) | 1 | ||
| 5 | 98-9102 | COVER - side | 1 | |
| 93-810 | COVER - side (5M) | 1 | ||
| 93-803 | COVER - side (7.5M) | 1 | ||
| 51-1930 | SCREW - cover | 10 | ||
| 6 | 98-9078 | COVER - rear | 1 | |
| 55-7172 | SCREW - cover | 5 | ||
| 55-6996 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 55-7373 | NUT - captive | 5 | ||
| 7 | 98-9103 | COVER - condenser | 1 | |
| 55-5130 | RIVET - cover | A/R | ||
| 8 | 78-1799 | FAN - condenser (TK10, 703055, 703097 & 703193) | 5 | |
| 78-1344 | FAN - condenser (axial, 703181, 703195 & 703197) | 5 | ||
| 9 | 98-5425 | GUARD - fan | 5 | |
| 55-7372 | SCREW - fan | 20 | ||
| 10 | 99-6093 | MOUNT - cable tie | 5 | |
| 55-2330 | BAND - wrap | A/R | ||
| 55-5130 | RIVET - cable tie | A/R | ||
| 11 | 33-5008 | INSULATION - top cover | 1 | |
| 12 | 33-5007 | INSULATION - side cover | 2 | |
| 13 | 91-6958 | NAMEPLATE - TK logo | 2 | |
| 14 | 92-1307 | NAMEPLATE - IR | 2 | |
| 15 | 99-8506 | NAMEPLATE - caution fan | 1 | |
| 16 | 99-8507 | NAMEPLATE - caution fan | 1 | |
| 17 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 18 | 92-2430 | BRACKET - lift | 4 | |
| 55-7373 | NUT - captive | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6994 | SCREW - bracket | 4 | ||
| 19 | 98-9104 | GRILLE - condenser | 1 | |
| 55-7373 | NUT | 2 | ||
| 20 | 93-258 | BRACKET | 2 | |
| 55-6994 | SCREW - bracket | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-6996 | FLATWASHER | 8 | ||
| 21 | 98-9105 | GRILLE | 1 | |
| 55-6994 | SCREW - grille | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 |
