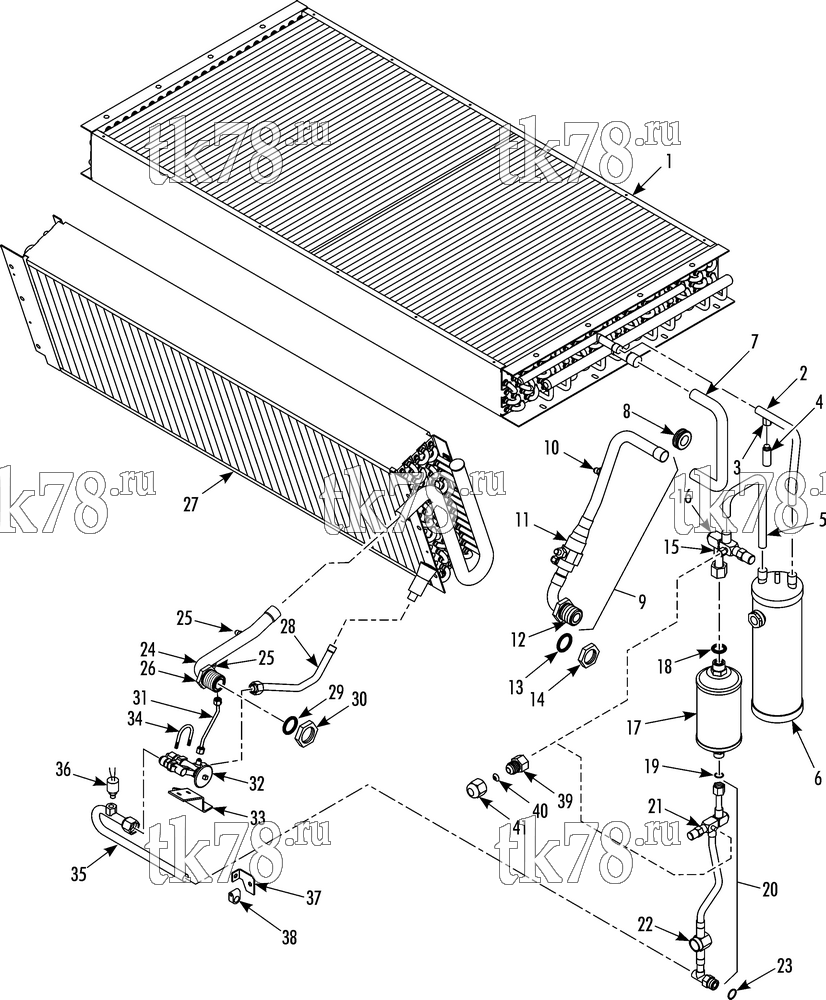

Установкa Thermo King схема REFRIGERATION COMPONENTS – 262D6
Обновление от: 8/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1588 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 16 | ||
| 99-6968 | STRIP - sealing (0.125 thick x 1.0 wide) | A/R | ||
| 2 | 66-7634 | TUBE - inlet | 1 | |
| 3 | 99-3060 | FITTING - saddle | 1 | |
| 4 | 61-5066 | VALVE - relief | 1 | |
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 61-2002 | TUBE - outlet | 1 | |
| 6 | 67-1191 | TANK - receiver (see 220F5) | 1 | |
| 7 | 66-8980 | TUBE - valve to header | 1 | |
| 8 | 33-507 | GROMMET (7/8 id) | 1 | |
| 9 | 61-6239 | TUBE ASSEMBLY - shutoff (top) | 1 | |
| 10 | 66-874 | FITTING (1/4 flare) | 1 | |
| 11 | 61-6240 | VALVE - shutoff | 1 | |
| 12 | 66-5247 | ADAPTER - bulkhead (#16 ORS) | 1 | |
| 13 | 33-1785 | O-RING - discharge | 1 | |
| 14 | 55-5740 | NUT (#16) | 1 | |
| 55-5741 | LOCKWASHER (#16) | 1 | ||
| 15 | 61-4877 | TUBE ASSEMBLY (inc valve) | 1 | |
| 16 | 306-661 | VALVE - shutoff | 2 | |
| 306-115 | CAP - valve | 1 | ||
| 55-3304 | SCREW - valve | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 17 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 18 | 33-566 | O-RING (1/2 id) | 1 | |
| 19 | 33-2115 | O-RING (5/8 id) | 1 | |
| 20 | 61-4379 | TUBE - drier to fitting (includes item 21 & 22) | 1 | |
| 21 | 306-661 | VALVE - shutoff | 1 | |
| 306-115 | CAP - valve | 1 | ||
| 22 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 23 | 33-1223 | O-RING (9/16 id) | 1 | |
| 24 | 61-1322 | TUBE - suction | 1 | |
| 25 | 61-4343 | FITTING - flare | 2 | |
| 26 | 55-7537 | ADAPTER - bulkhead (#20, o-ring seal) | 1 | |
| 99-7809 | INSULATION - suction tube | A/R | ||
| 27 | 67-2132 | COIL - evaporator (lacquer coating see 174G9) | 1 | |
| 67-1768 | COIL - evaporator (see 174G9) | 1 | ||
| 28 | 66-7321 | TUBE - expansion valve to distributor | 1 | |
| 29 | 33-1777 | O-RING - suction | 1 | |
| 30 | 55-5739 | NUT (#20) | 1 | |
| 55-5742 | LOCKWASHER (#20) | 1 | ||
| 31 | 61-1020 | TUBE - equalizer | 1 | |
| 32 | 66-5952 | VALVE - expansion | 1 | |
| 66-4213 | ELEMENT - power | 1 | ||
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 33 | 91-5560 | BRACKET - expansion valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 34 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 91-3084 | SPACER | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 35 | 61-2322 | TUBE - inlet | 1 | |
| 36 | 41-7956 | SWITCH - condenser fan | 1 | |
| 37 | 92-1771 | BRACKET - liquid line | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 38 | 91-758 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 39 | 51-2105 | REDUCER - flare | 2 | |
| 40 | 33-768 | GASKET - flare | 2 | |
| 41 | 55-2669 | CAP - flare | 2 |
