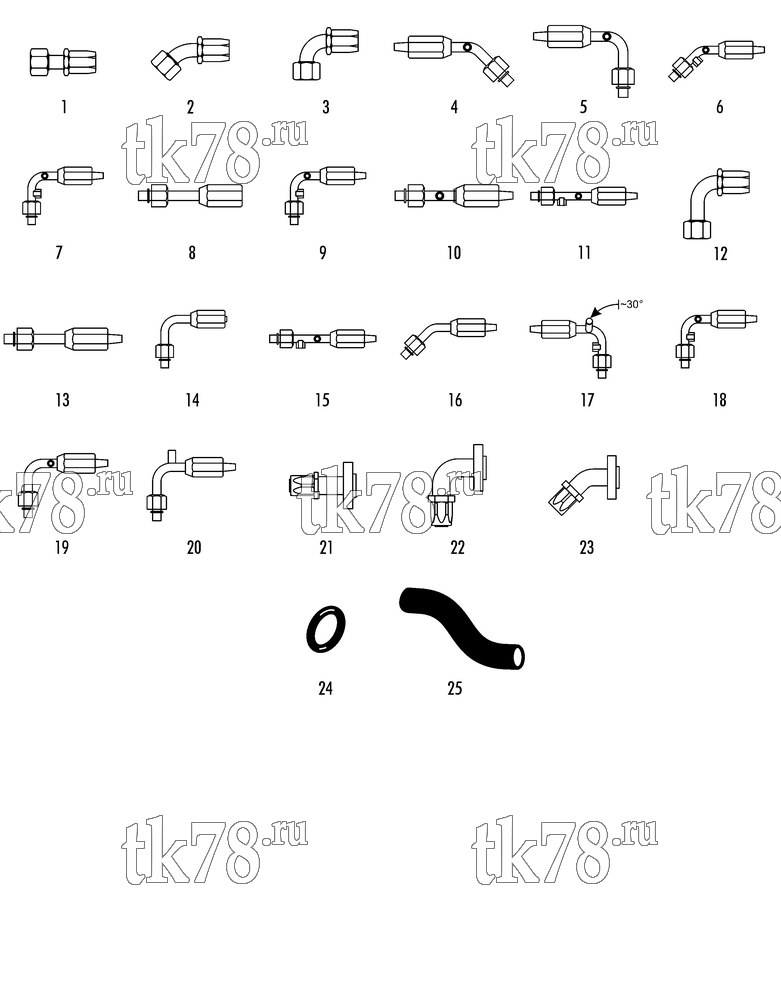

Установкa Thermo King схема FITTINGS & HOSES (AEROQUIP) – 262C6
Обновление от: 8/10/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-9234 | FITTING - straight (#16 ftg, #16 hose) | 1 | |
| 66-9231 | FITTING - straight (#20 ftg, #20 hose) | 1 | ||
| 66-9526 | FITTING - straight (#24 ftg, #24 hose) | 1 | ||
| 2 | 66-9235 | FITTING - 45 degree (#16 ftg, #16 hose) | 1 | |
| 66-9232 | FITTING - 45 degree (1-11/16-12 thread, #20 ftg, #20 hose) | 1 | ||
| 66-9524 | FITTING - 45 degree (#24 ftg, #24 hose) | 1 | ||
| 3 | 66-9236 | FITTING - 90 degree (#16 ftg, #16 hose) | 1 | |
| 66-9233 | FITTING - 90 degree (#20 ftg, #20 hose) | 1 | ||
| 4 | 55-9598 | FITTING - 45 degree (#12 ftg, #16 hose) | 1 | |
| 5 | 61-5538 | FITTING - 90 degree (#12 ftg, #16 hose) | 1 | |
| 6 | 55-9599 | FITTING - 45 degree (#10 ftg, #12 hose) | 1 | |
| 7 | 61-5539 | FITTING - 90 degree (#10 ftg, #12 hose) | 1 | |
| 8 | 61-5587 | FITTING - straight (#8 ftg, #10 hose) | 1 | |
| 61-5546 | FITTING - straight (#10 ftg, #12 hose) | 1 | ||
| 9 | 61-5588 | FITTING - 90 degree (#8 ftg, #10 hose) | 1 | |
| 10 | 61-5536 | FITTING - straight (#12 ftg, #16 hose) | 1 | |
| 11 | 61-5537 | FITTING - straight (#10 ftg, #12 hose) | 1 | |
| 12 | 66-9531 | FITTING - 90 degree (#16 ftg, #16 hose) | 1 | |
| 13 | 61-5543 | FITTING - straight (#12 ftg, #16 hose) | 1 | |
| 14 | 61-5205 | FITTING - 90 degree (#12 ftg, #16 hose) | 1 | |
| 15 | 61-5589 | FITTING - straight (3/4-16 thread, #8 ftg, #10 hose) | 1 | |
| 16 | 61-5545 | FITTING - 45 degree (#12 ftg, #16 hose) | 1 | |
| 61-5551 | FITTING - 45 degree (#10 ftg, #12 hose) | 1 | ||
| 17 | 61-5548 | FITTING - 90 degree (#16 ftg, #12 hose) | 1 | |
| 18 | 61-5550 | FITTING - 90 degree (#10 ftg, #12 hose) | 1 | |
| 19 | 61-5534 | FITTING - 90 degree (#20 ftg, #16 hose) | 1 | |
| 20 | 61-5535 | FITTING - 90 degree (#10 ftg, #12 hose) | 1 | |
| 21 | 61-4771 | FITTING - discharge (w/ flange, #16, straight) | 1 | |
| 61-3588 | FITTING - suction (w/ flange, #20, straight) | 1 | ||
| 61-5541 | FITTING - (w/ flange, #12, straight) | 1 | ||
| 22 | 61-475 | FITTING - discharge (w/ flange, #16, elbow, 90 deg) | 1 | |
| 61-476 | FITTING - suction (w/ flange, #20, elbow, 90 deg) | 1 | ||
| 61-5540 | FITTING - (w/ flange, #12, elbow, 90 deg) | 1 | ||
| 23 | 61-3589 | FITTING - discharge (w/ flange, #16, elbow, 45 deg) | 1 | |
| 61-5142 | FITTING - suction (w/ flange, #20, elbow, 45 deg) | 1 | ||
| 61-5542 | FITTING - (w/ flange, #12, elbow, 45 deg) | 1 | ||
| 24 | 33-2846 | O-RING (#8) | A/R | |
| 33-2848 | O-RING (#10) | A/R | ||
| 33-2847 | O-RING (#12) | A/R | ||
| 33-3165 | O-RING (#16) | A/R | ||
| 33-3166 | O-RING (#20) | A/R | ||
| 33-920 | O-RING (#24) | A/R | ||
| 25 | 61-4886 | HOSE - green (#10) | A/R | |
| 61-2186 | HOSE - green (#12) | A/R | ||
| 61-2152 | HOSE - green (#16, 39.37 ft lg) | A/R | ||
| 61-2183 | HOSE - green (#20, 39.37 ft lg) | A/R | ||
| 61-3333 | HOSE - green (#24, 19.685 ft lg) | A/R |
