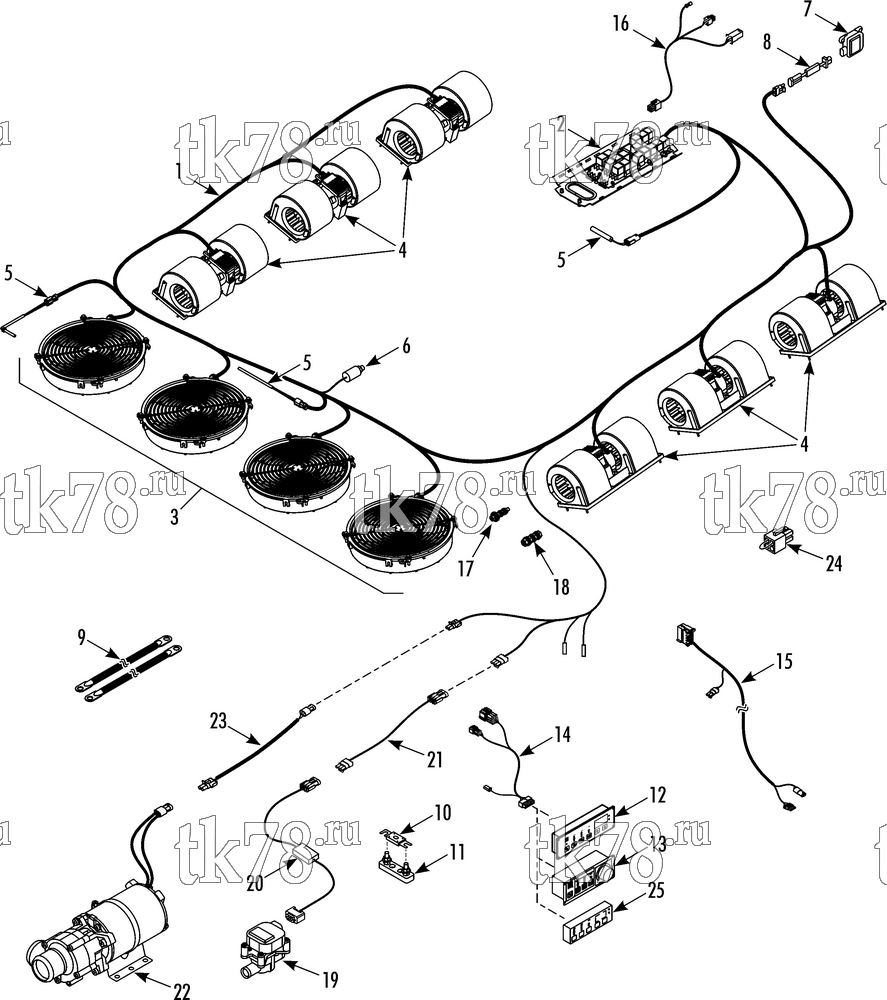

Установкa Thermo King схема ELECTRICAL COMPONENTS – 262B3
Обновление от: 2/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-710 | HARNESS - main (see 262C3) | 1 | |
| 42-711 | HARNESS - main (see 262C4) | 1 | ||
| 42-712 | HARNESS - main (see 262C5) | 1 | ||
| 2 | NSS | PANEL - control (703104 & 703194, see 262B4) | 1 | |
| NSS | PANEL - control (703083 & 703196, see 262C1) | 1 | ||
| NSS | PANEL - control (703184 & 703192, see 262C2) | 1 | ||
| 3 | 78-1344 | FAN - condenser (703192, 703194 & 703196) | 4 | |
| 78-1799 | FAN - condenser (703083, 703104 & 703184) | 4 | ||
| 4 | 78-1297 | BLOWER - evaporator (703192, 703194 & 703196) | 6 | |
| 78-1798 | BLOWER - evaporator (703083, 703104 & 703184) | 6 | ||
| 5 | 41-4157 | SENSOR - temperature | A/R | |
| 6 | 41-5220 | SWITCH - hpco (703104, 703194, 703083 & 703196) | 1 | |
| 41-3831 | SWITCH - only (703104, 703194, 703083 & 703196) | 1 | ||
| 41-5781 | TRANSDUCER - discharge (703184 & 703192) | 1 | ||
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 7 | 41-3255 | SERVOMOTOR (see 262B8) | 1 | |
| 8 | 41-7190 | CONTROLLER - servomotor (see 262B8) | 1 | |
| 9 | 41-8520 | CABLE - battery (red, 5M) | 1 | |
| 41-8521 | CABLE - battery (black, 5M) | 1 | ||
| 10 | 44-8709 | FUSE (130 amp) | 1 | |
| 11 | 44-8708 | HOLDER - fuse | 1 | |
| 12 | 41-8403 | ClimaAIRE I D (701741) | 1 | |
| 41-7211 | ClimaAIRE I D (719360) | 1 | ||
| 13 | 41-6998 | SmartAIRE (702835 & 702899, see 260H8) | 1 | |
| 14 | 41-4604 | HARNESS - driver panel (18.3M, 719360, see 260H8) | 1 | |
| 41-9199 | HARNESS - driver panel (12M, 702835, see 260H8) | 1 | ||
| 42-942 | HARNESS - control panel to driver panel (12M, 703506, see 268A8) | 1 | ||
| 42-941 | HARNESS - control panel to driver panel (14M, 703505, see 268A8) | 1 | ||
| 42-940 | HARNESS - control panel to driver panel (16M, 703504, see 268A8) | 1 | ||
| 42-939 | HARNESS - control panel to driver panel (18M, 703503, see 268A8) | 1 | ||
| 15 | 41-9778 | HARNESS - control panel to compr (12M, 701233, see 233B4) | 1 | |
| 41-4912 | HARNESS - control panel to compr (12M, 719301, see 262C7) | 1 | ||
| 42-946 | HARNESS - control panel to compr (12M, 703514, see 268A7) | 1 | ||
| 42-945 | HARNESS - control panel to compr (14M, 703513, see 268A7) | 1 | ||
| 41-8529 | HARNESS - control panel to compr (14M, 701482, see 233B4) | 1 | ||
| 41-5315 | HARNESS - control panel to compr (14M, 720028, see 262C7) | 1 | ||
| 41-9198 | HARNESS - control panel to compr (14M, 008304, see 262C8) | 1 | ||
| 42-944 | HARNESS - control panel to compr (16M, 703512, see 268A7) | 1 | ||
| 41-8530 | HARNESS - control panel to compr (16M, 701483, see 233B4) | 1 | ||
| 42-943 | HARNESS - control panel to compr (18M, 703511, see 268A7) | 1 | ||
| 41-8531 | HARNESS - control panel to compr (18.3M, 701484, see 233B4) | 1 | ||
| 42-947 | HARNESS - control panel to compr (703238) | 1 | ||
| 16 | 42-713 | HARNESS - CAN (16M, 701741, see 262C9) | 1 | |
| 42-714 | HARNESS - CAN, interface (703184) | 1 | ||
| 42-948 | HARNESS - CAN, interface (703237) | 1 | ||
| 41-8221 | PLUG (4-pin) | 1 | ||
| 41-2769 | CONNECTOR (4-pin) | 1 | ||
| 17 | 55-9191 | STUD - ground | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9189 | NUT | 4 | ||
| 18 | 55-9367 | STUD - power (plus) | 1 | |
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8631 | WASHER - nylon | 1 | ||
| 55-8955 | WASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 305-1653 | NUT | 4 | ||
| 19 | 41-9943 | VALVE - coolant (see 115D14 for connectors) | 1 | |
| 20 | 41-6767 | CONTROLER - servomotor, valve | 1 | |
| 41-8714 | CONTROLER - servomotor, valve (ClimaAIRE II only) | 1 | ||
| 21 | 41-6792 | HARNESS - coolant valve (10M, 700127) | 1 | |
| 41-6793 | HARNESS - coolant valve (20M, 700128) | 1 | ||
| 22 | 12-822 | PUMP - coolant (see 115D14 for connectors) | 1 | |
| 23 | 41-6152 | HARNESS - pump (7.6M, 719008) | 1 | |
| 41-4144 | HARNESS - pump (9M, 719007) | 1 | ||
| 41-8522 | HARNESS - pump (11M) | 1 | ||
| 41-4143 | HARNESS - pump (14M, 719006) | 1 | ||
| 41-8524 | HARNESS - pump (24M) | 1 | ||
| 42-949 | HARNESS - pump (703239) | 1 | ||
| 24 | 41-8787 | TERMINATOR - 120 ohms (701830) | 2 | |
| 25 | 45-2487 | SmartAIRE II (702899, 702900, 702901 & 702902) | 1 |
