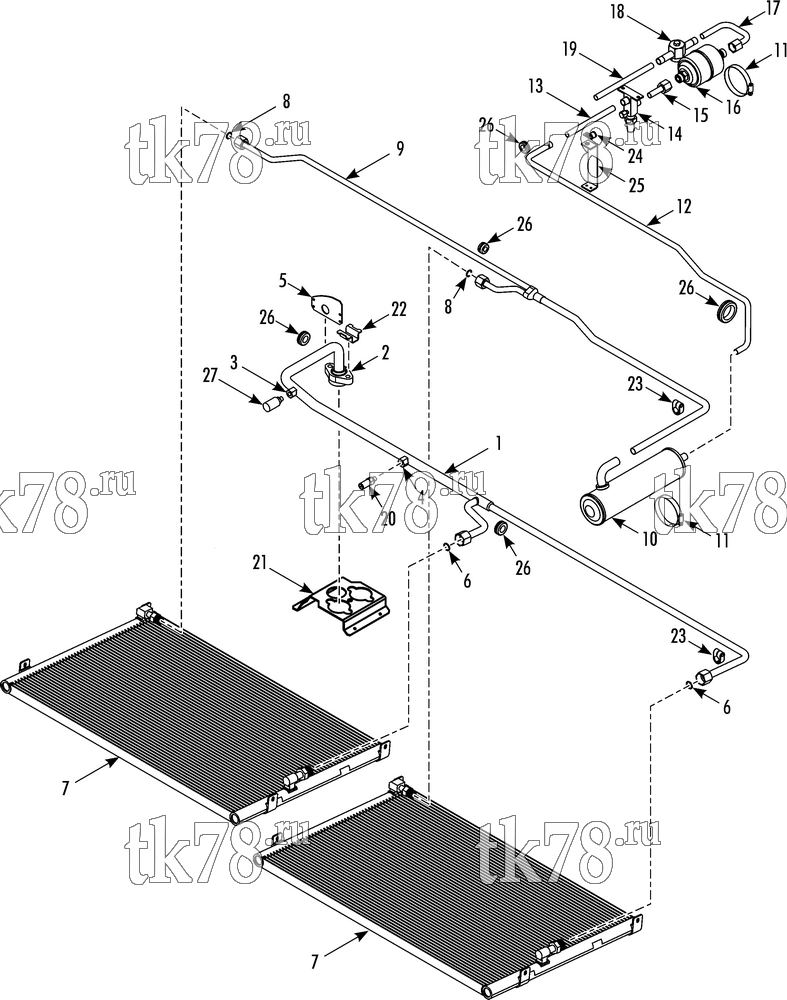

Установкa Thermo King схема CONDENSER REFRIGERATION COMPONENTS (RIGHT SIDE IN/OUT) – 262B1
Обновление от: 8/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6224 | TUBE - discharge | 1 | |
| 2 | 55-9186 | FLANGE | 1 | |
| 51-578 | ADAPTER | 1 | ||
| 3 | 66-4553 | FITTING - saddle | 1 | |
| 4 | 55-7535 | FITTING - saddle | 1 | |
| 5 | 93-246 | PLATE | 1 | |
| 6 | 33-2115 | O-RING (5/8 id) | 2 | |
| 7 | 67-2773 | COIL - condenser | 2 | |
| 55-6994 | SCREW - coil | 7 | ||
| 51-167 | FLATWASHER | 14 | ||
| 55-7042 | NUT | 7 | ||
| 8 | 33-566 | O-RING (1/2 id) | 2 | |
| 9 | 61-6225 | TUBE - liquid | 1 | |
| 55-8950 | NUT | 2 | ||
| 10 | 67-2774 | TANK - receiver | 1 | |
| 11 | 55-2688 | CLAMP | 2 | |
| 12 | 61-6226 | TUBE - liquid | 1 | |
| 13 | 61-6227 | TUBE | 1 | |
| 14 | 66-4694 | VALVE - shutoff | 1 | |
| 15 | 61-6228 | TUBE - dehydrator | 1 | |
| 55-6838 | NUT | 1 | ||
| 16 | 66-8344 | DEHYDRATOR | 1 | |
| 17 | 61-6229 | TUBE - sight glass | 1 | |
| 55-6838 | NUT | 1 | ||
| 18 | 66-1188 | INDICATOR - liquid | 1 | |
| 19 | 61-6230 | TUBE - sight glass | 1 | |
| 20 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 21 | 93-247 | BRACKET - suction/ discharge | 1 | |
| 22 | 92-8932 | BRACKET - flange | 1 | |
| 55-5427 | SCREW - bracket | 1 | ||
| 23 | 91-758 | CLAMP - tube | 1 | |
| 92-7840 | SPACER - clamp | 2 | ||
| 55-8993 | SCREW | 1 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 24 | 55-3065 | CLAMP - tube (.50 dia) | 1 | |
| 25 | 93-248 | BRACKET - tube | 1 | |
| 26 | 33-1213 | GROMMET (.50 id) | 3 | |
| 33-367 | GROMMET (.625 id) | 1 | ||
| 33-324 | GROMMET (.687 id) | 2 | ||
| 33-452 | GROMMET (.875 id) | 1 | ||
| 33-1770 | GROMMET (1.5 id) | 4 | ||
| 33-1371 | GROMMET (1.703 id) | 2 | ||
| 27 | 41-5220 | SWITCH - hpco | 1 |
