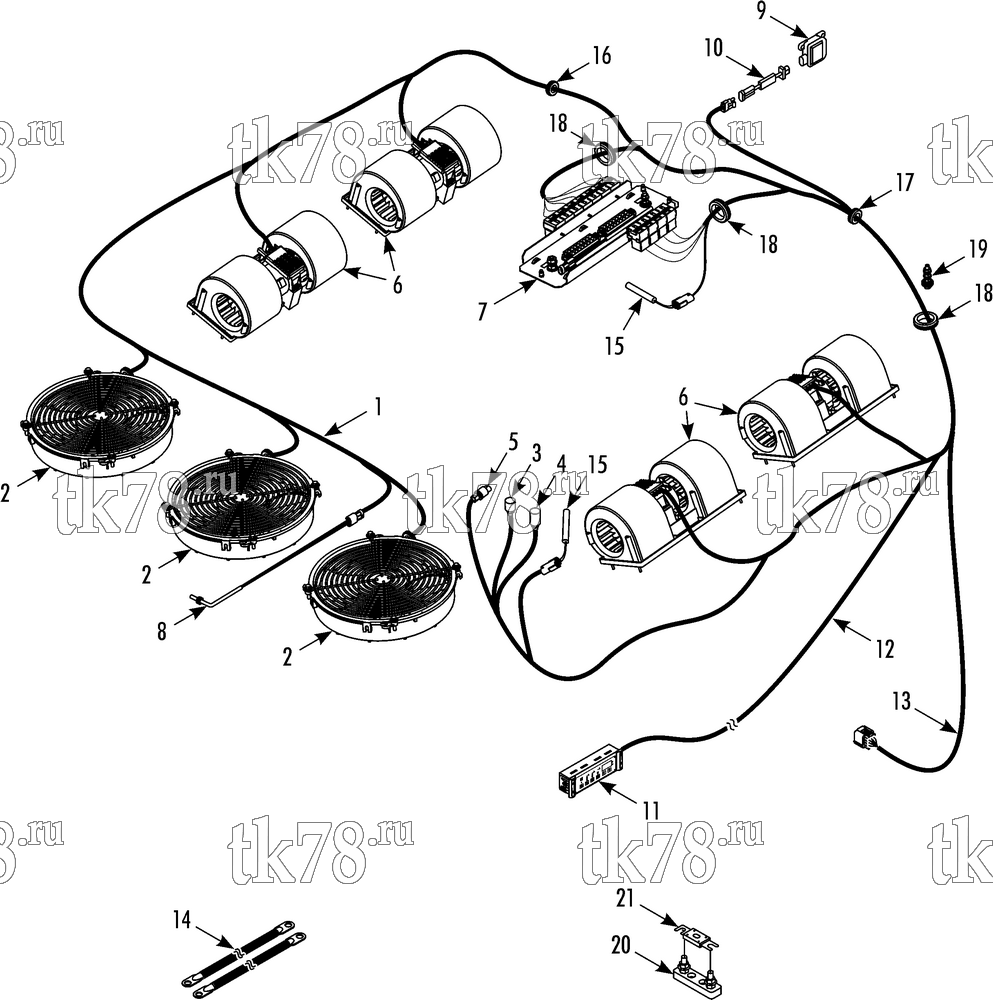

Установкa Thermo King схема ELECTRICAL COMPONENTS – 262A2
Обновление от: 8/20/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-658 | HARNESS - main (X500 & X700) | 1 | |
| 2 | 78-1799 | FAN - assembly (24V) | 3 | |
| 3 | 41-3831 | SWITCH - cps | 1 | |
| 4 | 41-1501 | SWITCH - hpco | 1 | |
| 5 | 41-4309 | SWITCH - lpco | 1 | |
| 6 | 78-1798 | BLOWER - evaporator | 4 | |
| 92-8885 | HOLDER - blower | 4 | ||
| 55-5047 | RIVET - holder0 | 8 | ||
| 7 | NSS | PANEL - control (see 260G9) | 1 | |
| 8 | 41-4335 | SENSOR - temperature, air | 1 | |
| 9 | 41-3255 | SERVOMOTOR | 1 | |
| 10 | 41-7190 | CONTROLLER - servomotor | 1 | |
| 11 | 41-6998 | SmarttAIRE | 1 | |
| 12 | 41-9777 | HARNESS - control panel to climAIRE (12m, see 260H8) | 1 | |
| 41-8532 | HARNESS - control panel to climAIRE (14m, see 260H8) | 1 | ||
| 41-8533 | HARNESS - control panel to climAIRE (16m, see 260H8) | 1 | ||
| 42-661 | HARNESS - control panel to climAIRE (18m, see 260H8) | 1 | ||
| 13 | 42-659 | HARNESS - control panel to compressor TM31(12m, see 262D0) | 1 | |
| 41-9778 | HARNESS - control panel to compressor X430 (12m, see 233B4) | 1 | ||
| 42-660 | HARNESS - control panel to compressor TM31(14m, see 262D0) | 1 | ||
| 41-8529 | HARNESS - control panel to compressor X430 (14m, see 233B4) | 1 | ||
| 14 | 41-8520 | CABLE - battery (red 5m) | 1 | |
| 41-8521 | CABLE - battery (black 5m) | 1 | ||
| 15 | 41-4157 | SENSOR - temperature, coil & return | 2 | |
| 16 | 33-5001 | GROMMET (.69 id) | 2 | |
| 17 | 33-572 | GROMMET (.75 id) | 1 | |
| 18 | 33-1770 | GROMMET (1.5 id) | 3 | |
| 19 | 55-9367 | STUD | 1 | |
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8631 | WASHER - nylon | 1 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 305-1653 | NUT | 4 | ||
| 20 | 44-8708 | HOLDER - fuse | 1 | |
| 21 | 44-8709 | FUSE (130 amp) | 1 |
